Back Panel Features; Figure 6. Intel Local Control Panel; Figure 7. Chassis Back - Intel SR2400SYS - Server Platform - 0 MB RAM User Manual

J System Status LED
L NIC 1 activity LED
K NIC 2 activity LED
M Hard disk drive
status LED
N Reset button

Back Panel Features

A. Low-profile add-in card bracket
B. Full-height add-in card bracket
C. Grounding studs
Notes:
(1) I/O connectors vary, depending on the server board installed. See your server board documentation for port
identification.
(2) AC back panel shown; DC back panel differs.
8
Solid green indicates normal operation.
Blinking green indicates degraded performance.
Solid amber indicates a critical or non-recoverable condition.
Blinking amber indicates a non-critical condition.
No light indicates POST is running or the system is off.
Continuous green light indicates a link between the system and the
network to which it is connected.
Blinking green light indicates network activity.
Random blinking green light indicates hard disk drive activity (SCSI
or SATA).
No light indicates no hard disk drive activity.
Reboots and initializes the system.
®
Figure 6. Intel Local Control Panel
A B
F

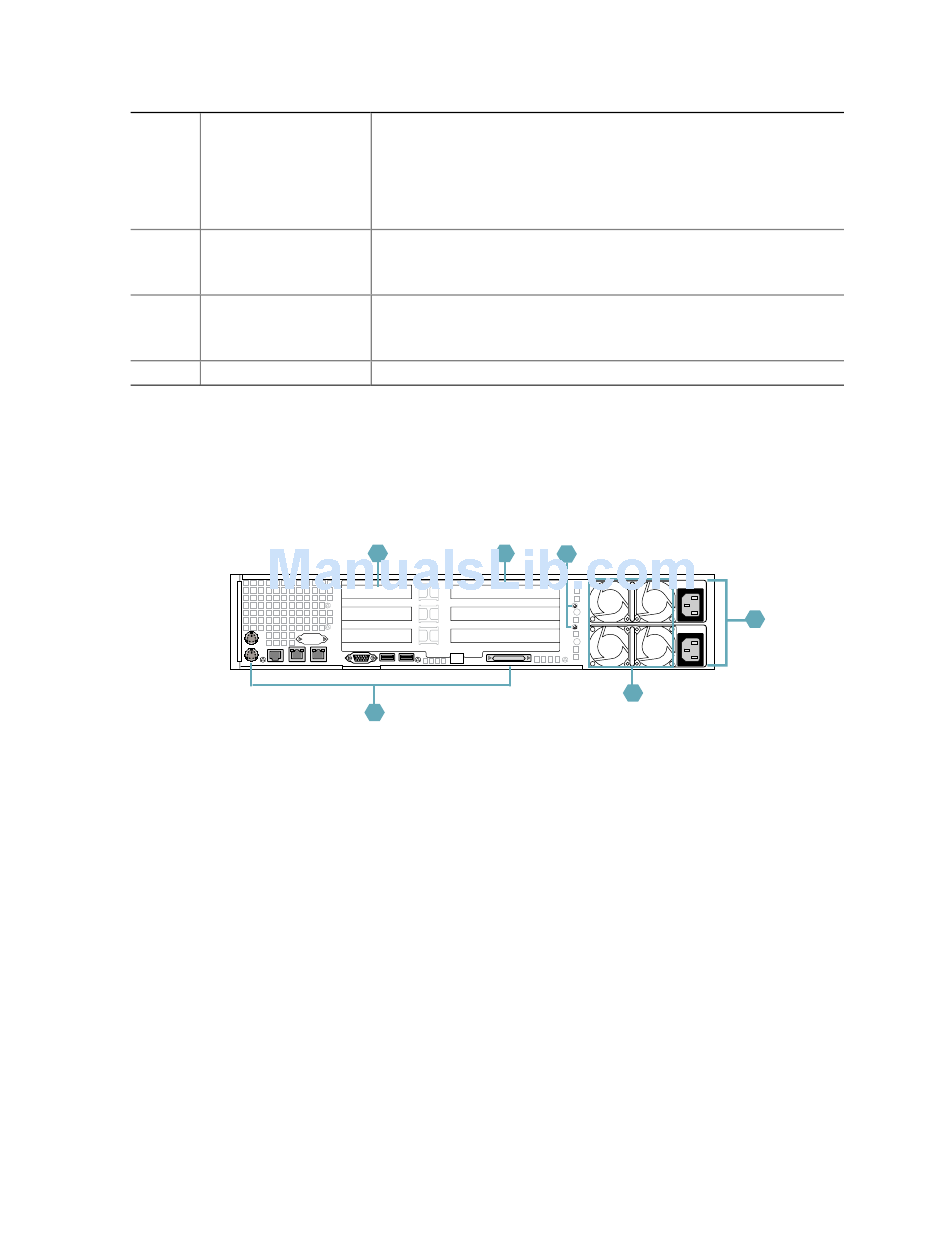

Figure 7. Chassis Back

C
E
AF00638
D. AC power receptacles (top
receptacle for optional redundant
power supply)
E. Power supply fans (shown
with optional power module
installed)
F. I/O ports (see note)
D
