Chassis Back Controls and Features

A
C
E
A. Parallel port
B. VGA
C. Serial port A, COM1
D. Serial port B, COM2
E. Mouse connector
F. Keyboard connector
G. Universal serial bus connector
H. Expansion slot covers (six slot connectors provided on baseboard)
I. Power supply bay
J. AC input power connector
K. Power supply fan
L. Power supply LED
M. Power supply failure LED (LED not lit means failure)
14
B
D
F
G

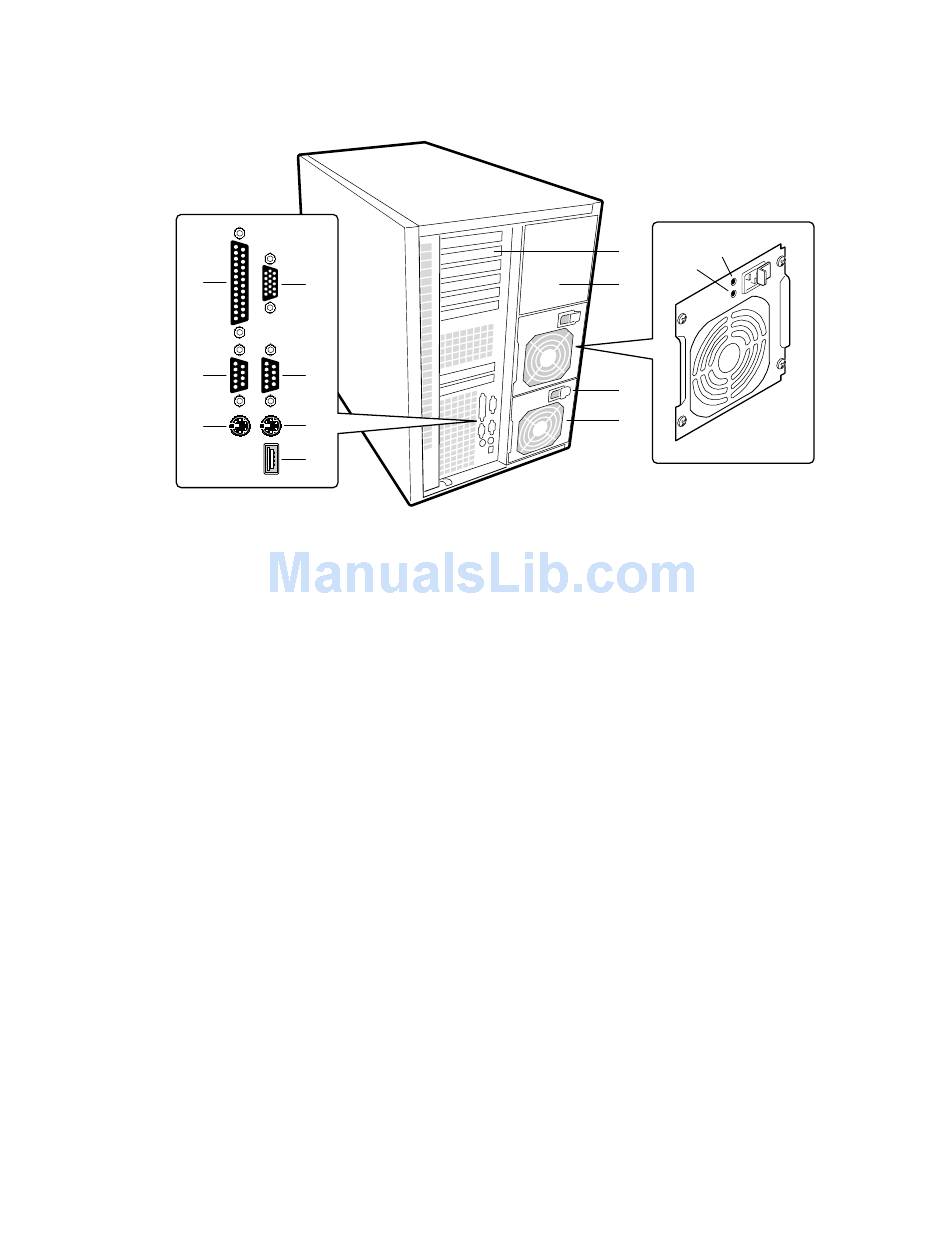

Figure 4. Back Controls and Indicators
†
