Connecting Cables - Omron SYSMAC CS1D-PD Series Operation Manual

Installation
IC102 CS
RDY
TER ERR
IC102
Total cable
IC102
length:
50 m max.
IC102
IC102
Terminator
Note

Connecting Cables

170

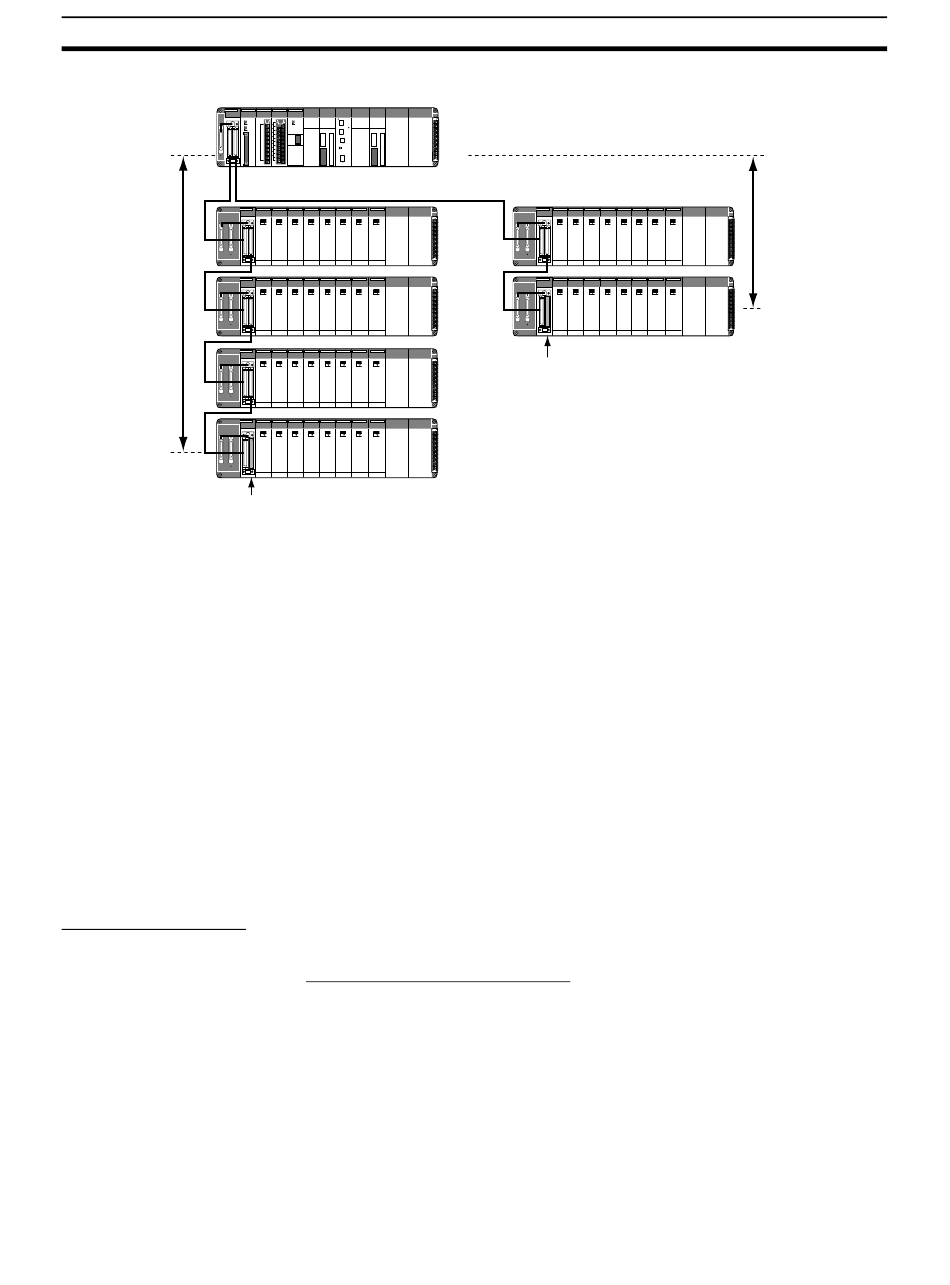

Example 2: Long-distance Expansion Rack I/O Connecting Cables
LEFT CPU
RIGHT CPU
DPL SW
ON
INIT.
SW
ON
DUPLEX
CS
RDY
TER ERR
CS
RDY
TER ERR
CS
RDY
TER ERR
CS
RDY
TER ERR
1. Up to two series of Long-distance Expansion Racks can be connected.
2. A maximum of seven Long-distance Expansion Racks can be connected
(including all Racks in both series).
3. Each series of Long-distance Expansion Racks must be 50 m max. with a
total of 100 m max. for both series.
4. Expansion Racks and Long-distance Expansion Racks cannot be con-
nected at the same time.
5. In a Duplex CPU, Dual I/O Expansion System, use only the CS1D-
BC042D CPU Backplane and CS1D-BIO082D Expansion Backplanes. No
other Backplanes can be used.
6. In a Duplex CPU, Single I/O Expansion System, use only the CS1D-
BC052 CPU Backplane and CS1D-BIO092 Expansion Backplanes. No
other Backplanes can be used.
7. In a CS1D Single CPU System, use only the CS1D-BC082S CPU Back-
plane and CS1D-BIO092 Expansion Backplanes. No other Backplanes
can be used.
There are two connection methods that are used, depending on the type of
cable.
CS-series I/O Connecting Cables
With CS-series I/O Connecting Cables, simple locking connectors are used
on both the CPU Rack and Expansion Racks.
CPU Rack
Long-distance Expansion Rack
IC102 CS
RDY
Long- TER ERR
distance
Expansion
Rack
IC102 CS
RDY
TER ERR
Long-
distance
Expansion
Rack
Long-distance Expansion Rack
Long-
Terminator
distance
Expansion
Rack
Long-
distance
Expansion
Rack
Section 5-2
Total cable
length:
50 m max.
