Backplanes

2-8

Backplanes

2-8-1

CPU Backplanes

Model

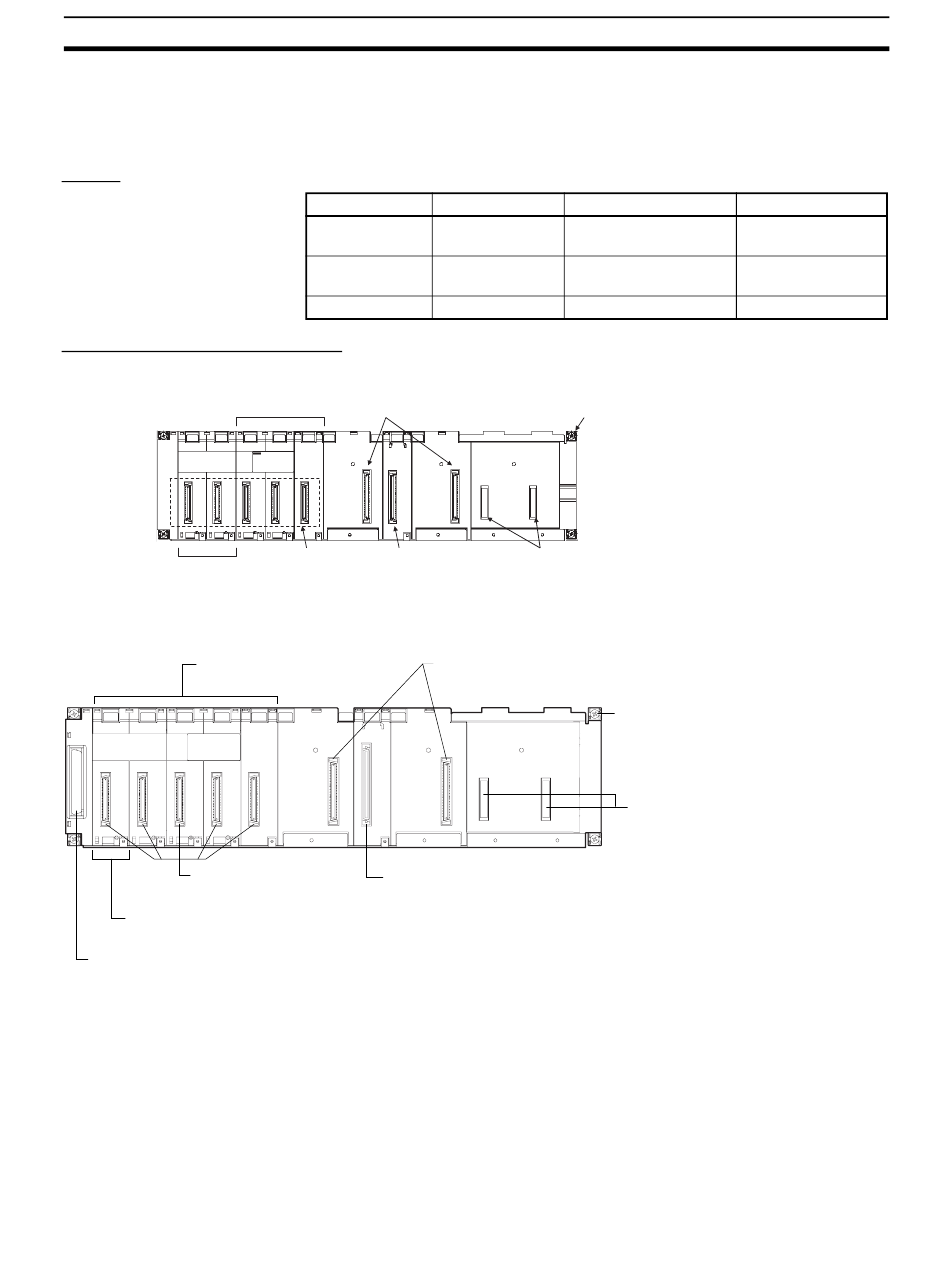

Nomenclature and Functions

CPU Backplane for Duplex CPU, Dual I/O Expansion Systems: CS1D-BC042D
Slots for mounting Units
Slots for both
Expansion Units
and I/O Units
CPU Backplane for Duplex CPU, Single I/O Expansion Systems: CS1D-BC052
Slots for mounting Units
Unit connectors
When connecting a CS1D Long-distance Expansion
Rack, mount a CS1W-IC102 I/O Control Unit.
I/O Connecting Cable connector
For connecting CS1D Expansion Racks.
C200H Expansion I/O Racks and CS-series
Expansion Racks cannot be connected.
Model
CS1D-BC042D
CS1D-BC052
CS1D-BC082S
CPU Unit connectors (two)
Unit connectors Duplex Unit
connector (one)
CPU Unit connectors
Duplex Unit connector (one)
Note Backplanes produced from July 2005 have screw holes that allow an Expan-
sion Rack Cable Mounting Bracket to be attached to secure the cable.
Number of slots Application
3 to 5 Duplex CPU, Dual I/O
Expansion Systems
5 Duplex CPU, Single I/O
Expansion Systems
8 Single CPU Systems
Backplane mounting screws
(Four M4 screws)
Power Supply Unit
connectors (two)
Section 2-8
Weight
1,600 g max.
1,600 g max.
1,600 g max.
Backplane mounting screws
Mount the Backplane with four M4 screws.
The Backplane is constructed so that it can
be insulated from the control panel when
installed.
Power Supply Unit connectors (two)
89
