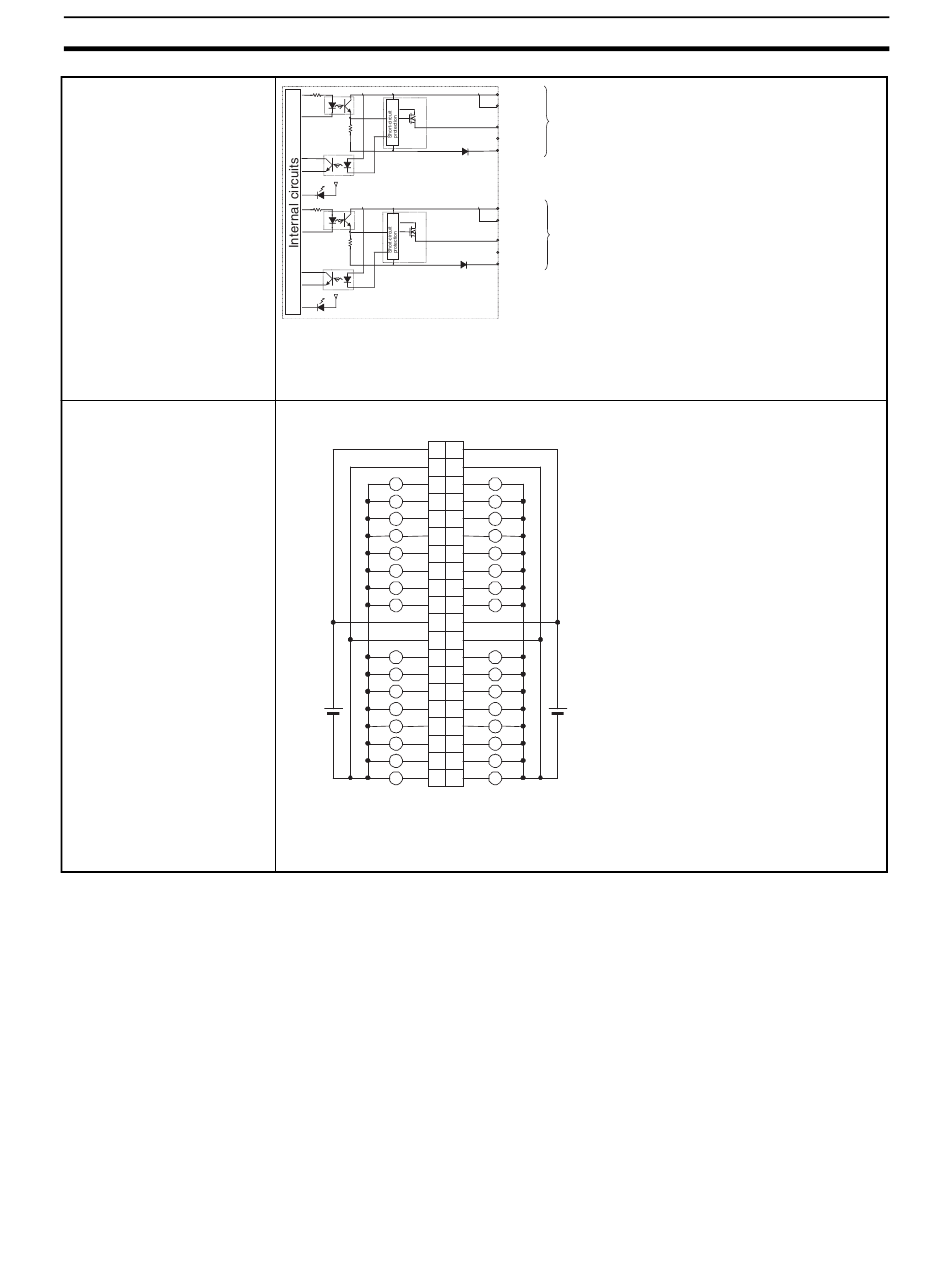

Specifications of Basic I/O Units and High-density I/O Units
Circuit Configuration
Terminal Connections
Note The maximum load currents will be 2.0 A/common and 4.0 A/Unit if a pressure-welded connector is
used.
Output indicator
ERR indicator
When the output current of any output exceeds the detection current, the output for that
point will turn OFF. At the same time, the ERR indicator will light and the corresponding
flag (one for each common) in the Basic I/O Unit Information Area (A050 to A089) will turn
ON.
I/O word "m+1"
B A
20 20
COM1(+V)
19 19
0V
18 18
L
15
17 17
L
14
16 16
L
13
15 15
L
12
14 14
L
11
13 13
L
10
12 12
L
9
11 11
L
8
10 10
COM1(+V)
9 9
0V
8 8
L
7
7 7
L
6
24 VDC
6 6
L
5
5 5
L
4
4 4
L
3
3 3
L
2
2 2
L
1
1 1
L
0
• When wiring, pay careful attention to the polarity of the external power supply. The load
may operate if the polarity is reversed.
• Although the COM(+V) and 0V of rows A and B are internally connected, wire all points
completely.
COM0 (+V)
COM0 (+V)
A
OUT00
to
OUT15
0 V
COM1 (+V)
COM1 (+V)
B
OUT00
to
OUT15
0 V
I/O word "m"
COM0(+V)
0V
L
15
L
14
L
13
L
12
L
11
L
10
L
9
L
8
COM0(+V)
0V
L
7
L
6
24 VDC
L
5
L
4
L
3
L
2
L
1
L
0
