Specific PLC Setup Settings
Baud Rate (bps)
Address in
Programming
Console
Word Bit(s)
144 0 to 7 00 hex: 9,600
06 hex: 9,600
07 hex: 19,200
08 hex: 38,400
09 hex: 57,600
0A hex: 115,200
(Unit: bps)
Default: 00 hex
6-2-8

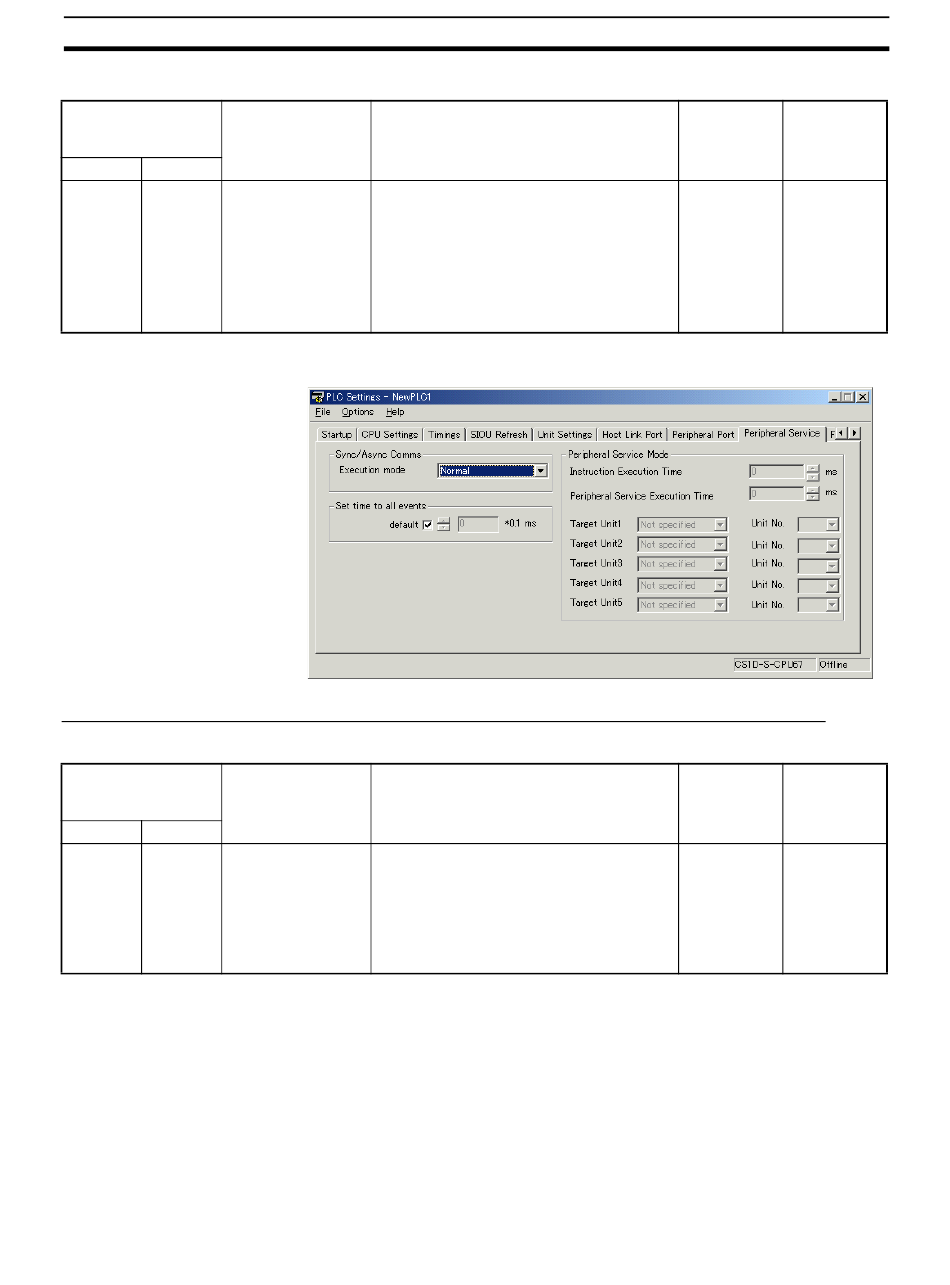

Peripheral Service Tab Page

CPU Execution Mode Setting (Sync/Async Comms) (Single CPU Systems Only)

Execution Mode

Address in
Programming
Console
Word Bit(s)
219 00 to 15 00
01
02
Default: 00
Note
Settings
The following settings are valid for the
peripheral bus mode: 00 and 06 to 0A hex.
Settings
00: Not specified (disable parallel process-
ing)
01: Synchronous (Synchronous Memory
Access
02: Asynchronous (Asynchronous Memory
Access)
1. This setting cannot be used with Duplex CPU Systems. The default setting
will be used even if the setting is changed.
2. A PLC Setup error will occur if any non-specified value is set.
Function
Function
Section 6-2
Related New set-
flags and ting's effec-
words tiveness
A61901 Takes effect
(Peripheral the next
Port Settings cycle.
Changing (Also can be
Flag) changed with
STUP (237).)
Related New set-
flags and ting's effec-
words tiveness
--- Takes effect
at the start of
operation
(Can't be
changed dur-
ing opera-
tion.)
219
