Basic Procedures
4. Connecting a Programming Device
5. Checking Initial Operation
!Caution When 200 to 240 V AC power is being supplied, be sure to remove the jumper
1,2,3...
148
• Turn OFF pin 4 on the DIP switch when connecting a Programming
Device to the peripheral port. Turn pin 4 ON when connecting any other
device.
• Turn ON pin 5 on the DIP switch when connected a Programming Device
other than a Programming Console to the RS-232C port. Turn pin 5 OFF
when connecting any other device.

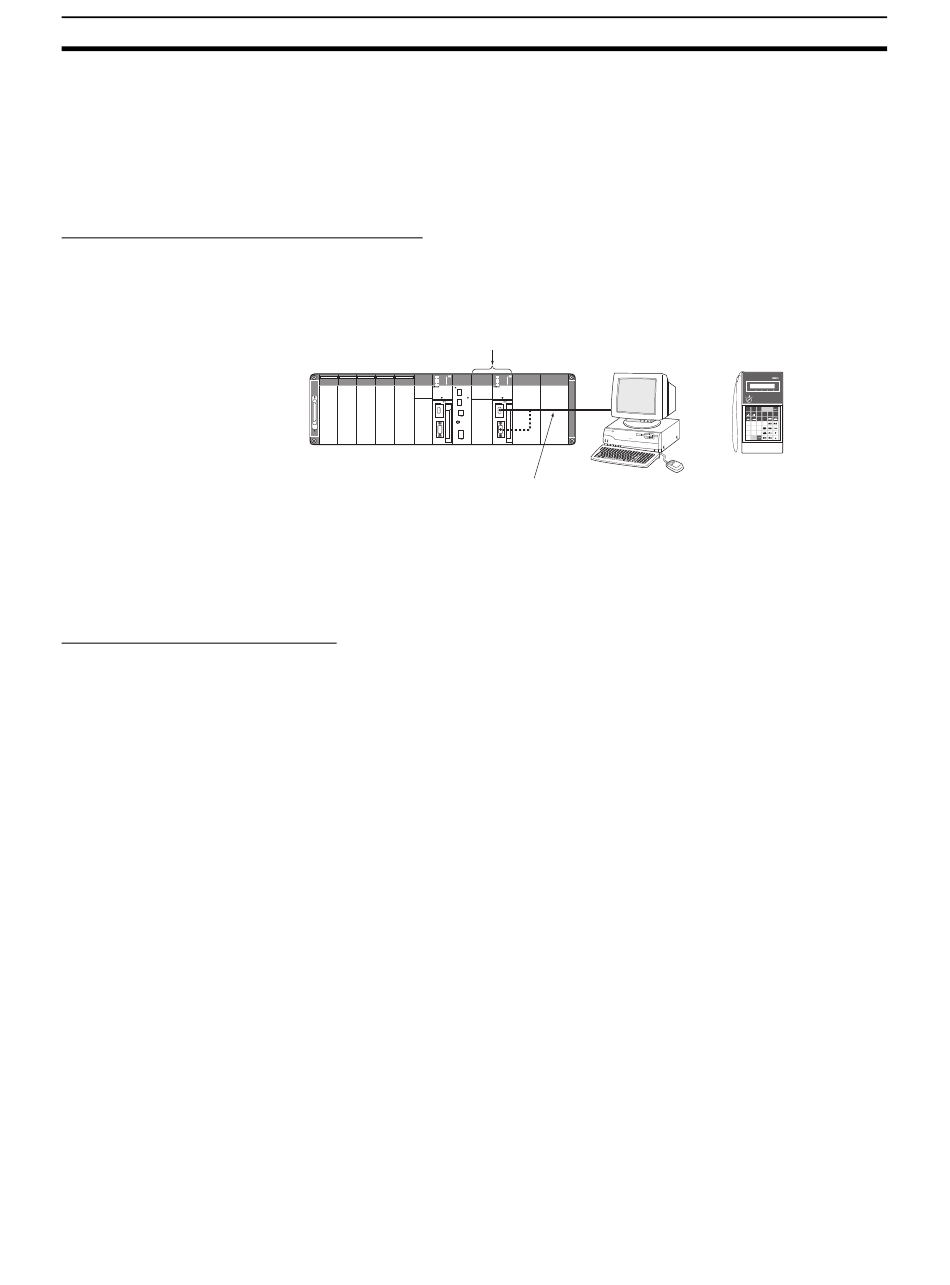

Connect the CX-Programmer or Programming Console to the active CPU
Unit's peripheral port (the upper port) or connect the CX-Programmer to the
RS-232C port. (See note.)
SYSMAC
CS1D-CPU67H
PROGRAMMABLE CONTROLLER
Connect to peripheral
or RS-232C port on
active CPU Unit.
Note With a Duplex CPU System, operations, such as generating I/O tables and
transferring the program, will not be possible if the Programming Device is
connected to the standby CPU Unit.
bar that shorts the voltage selector terminals. The Power Supply Unit will be
damaged if 200 to 240 V AC is supplied with the jumper bar connected.
1. Check the power supply wiring and voltage and turn ON the power supply
to the CS1D Power Supply Units. Confirm that the POWER indicator on the
Power Supply Unit when power is turned ON.
2. With a Duplex CPU System, confirm that the DPL STATUS indicator on the
front of the Duplex Unit flashes green indicating that duplex operation is
being initialized. If initialization is completed normally, the DPL STATUS in-
dicator will stop flashing and remain lit green.
Note If an inconsistency is detected between the two CS1D CPU Units, a duplex
verification error will occur and the DPL STATUS indicator will flash red. If this
happens, press the initialization switch. Unless there is a hardware error caus-
ing the inconsistency, the error should be cleared.
3. With a Duplex CPU System, confirm that the ACTIVE indicator on the ac-
tive CPU Unit lights green and be sure that the Programming Device is
connected to the active CPU Unit.
Note If the PLC Setup's Startup Mode Setting is set to PRCN (Startup Mode deter-
mined by the Programming Console's mode switch, the default setting), but a
Programming Console isn't connected when the power is turned ON, the CPU
Unit will enter RUN Mode and start operating.
Active CPU Unit
CX-Programmer
RUN RUN
ERR/ALM ERR/ALM
INH BKUP INH BKUP
PRPHL COMM PRPHL COMM
LEFT CPU
SYSMAC
CS1D-CPU67H
PROGRAMMABLE CONTROLLER
RIGHT CPU
MCPWR BUSY MCPWR BUSY
DPL SW
ON
INIT.
SW
PORT ON PORT
DUPLEX DUPLEX
Section 4-2
Programming
Console
(peripheral port only)
PRO27 PR O27
PROGRAMMING CONSOLE PR OGRAMMING CONSOLE
MONITOR
RUN PROGRAM
or
FUN SFT NOT
AND OR CNT TR LR HR
LD OUT TIM DM CH
7 8 9 EXT
E F
4 5 6
B 1 C 2 D 3
A 0
EAR MIC
