Online Addition of Units and Backplanes
Online Addition of a Unit and Backplane
1,2,3...
6. Select Options - Online Add Unit - reflection. The Unit addition will be
completed if the Unit selected in the CX-Programmer matches the Unit that
was actually added.
Note If the Unit does not match, the online addition will not be executed.
1. Mount the additional Unit in the Expansion Backplane and connect the CS-
series Connecting Cables to the operating PLC.
Note When the cables are duplexed, always verify that both cables are
connected properly. When adding a Rack, also verify that the con-
necting Rack is the last Expansion Rack (or CPU Rack). Verify that
the END RACK Indicator is lit in the Rack's CS1D I/O Control Unit or
CS1D I/O Interface Unit.

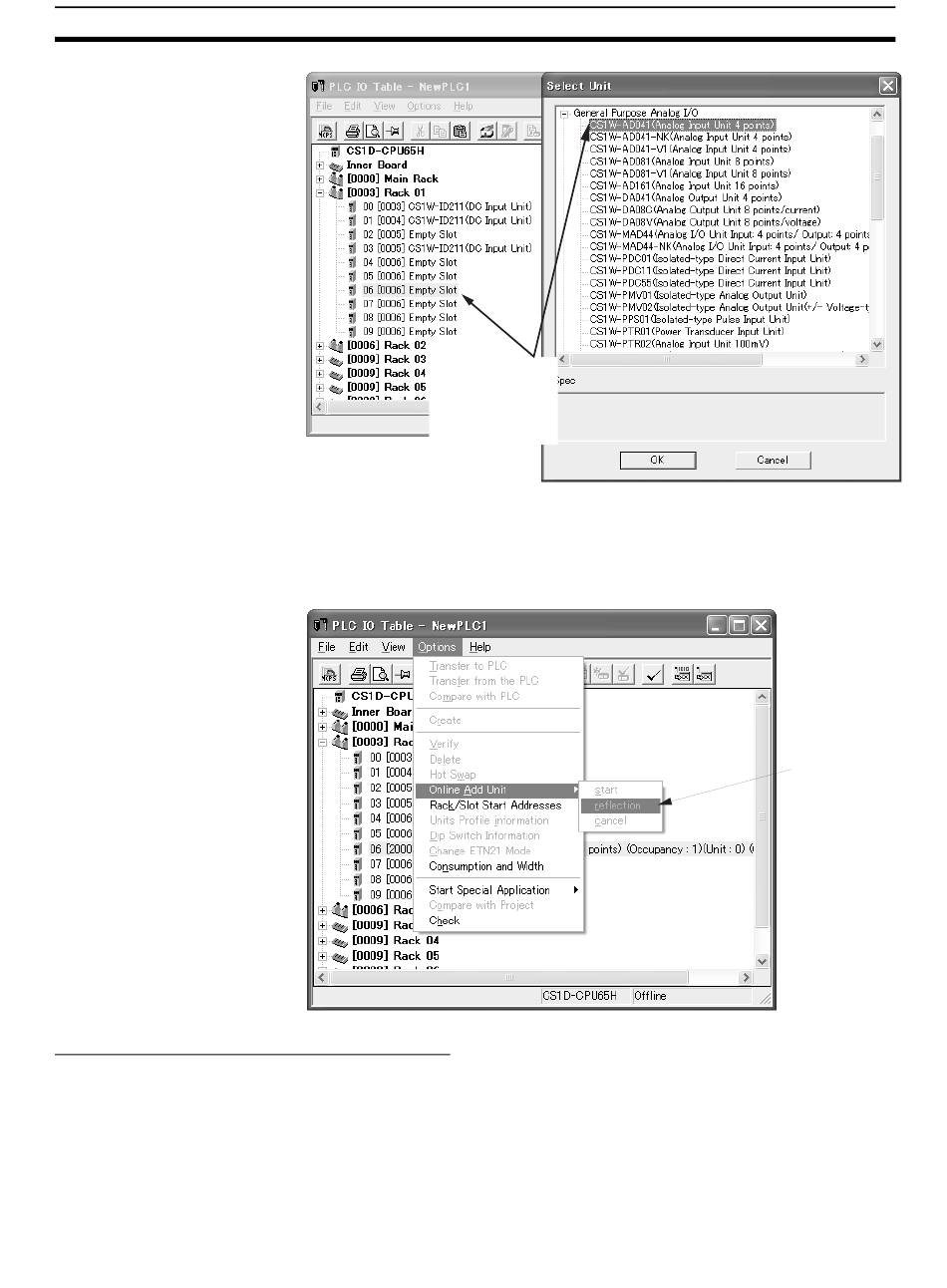

Select the Select
Unit Window from
Rack 01, Slot 06
and add a
CS1W-AD041.
Section 7-7
Select reflection.
