Connecting to the RS-232C Port on the CPU Unit

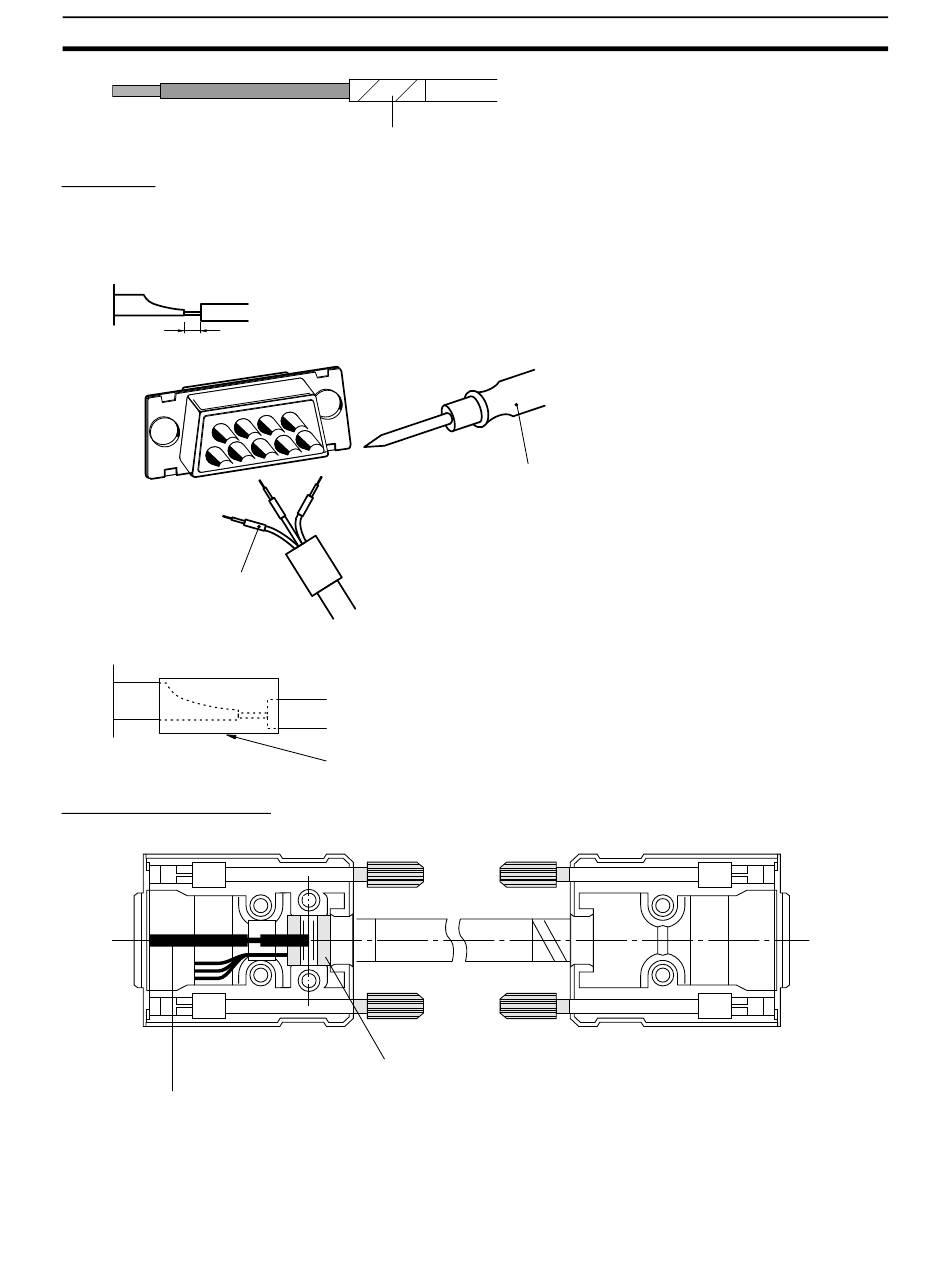

Soldering
1. Place heat-shrinking tubes over all wires.
2. Pre-solder all wires and connector terminals.
3. Solder the wires.
1 mm
Heat-shrinking tube
(inner dia. 1.5, l = 10)
4. Move the heat-shrinking tubes onto the soldered area and shrink them into place.
Assembling the Hood
Assemble the connector hood as shown.
FG Connection
Ground plate
610
Electrician's tape
Soldering iron
Heat-shrinking tube
Aluminum foil tape
Appendix F
No FG Connection
