Basic Procedures
1,2,3...
1,2,3...
152
Using the CX-Programmer Offline
Use the following procedure to create the I/O tables offline with the CX-Pro-
grammer and later transfer the I/O tables to the CPU Unit.
1. Set the device type in the CX-Programmer as shown in the following table.
Model
@@
CS1D-CPU
CS1D-CPU@@H
CS1D-CPU@@SA
CS1D-CPU@@S
* CS1D-CPU@@HA requires CX-Programmer Ver. 9.7 or later.
2. Create the I/O tables offline.
a) Double-click IO Table on the project tree in the main window. The I/O
Table Window will be displayed.
b) Select PLC - PLC Information - I/O Table, and then double-click the
Rack to be edited. The slots for that Rack will be displayed.
c) Right-click the slots to be edited and select the desired Units from the
pull-down menu.
3. Select Options and then Transfer to PLC to transfer the I/O tables to the
active CPU Unit. The I/O tables will automatically be copied to the standby
CPU Unit as well.
Note The first word allocated to each Rack can be set in the PLC Setup under the
Options menu.

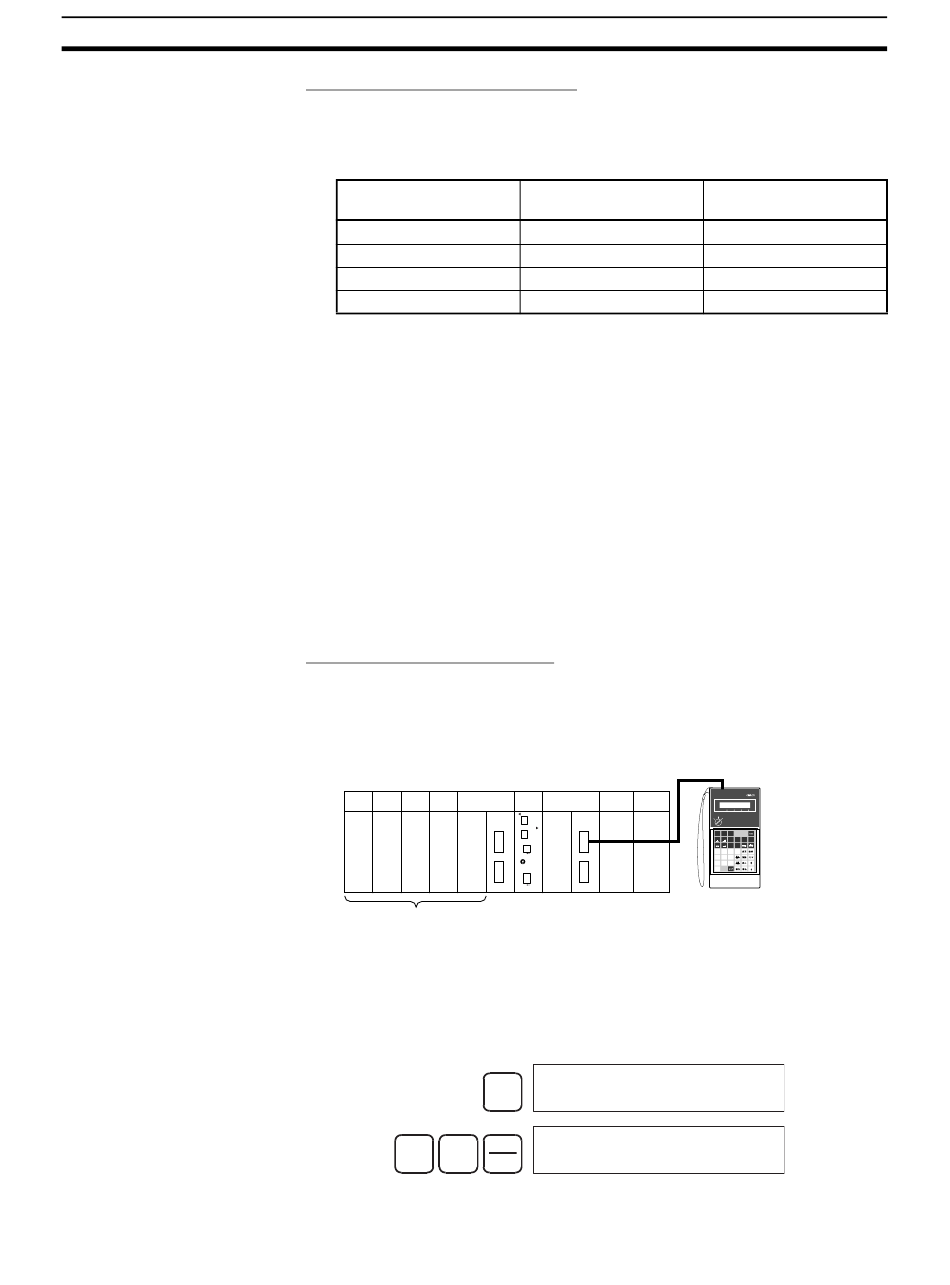

Using a Programming Console

Use the following procedure to register the I/O table with a Programming Con-
sole.
1. Install all of the Units in the PLC.
Install the Units
2. Connect the Programming Console to the peripheral port. (See note.)
(It can be connected with the power ON.)
Note With a Duplex CPU System, connect the Programming Console to
the active CPU Unit.
3. Register the I/O tables.
FUN
CX-Programmer
Ver. 3.@
Cannot be selected
HA
CS1H-H
Cannot be selected
Cannot be selected
LEFT CPU
RIGHT CPU
DPL SW
ON
INIT.
SW
ON
DUPLEX
000000 CT00
CLR
000000 I/O TBL ?
CH
SHIFT
*DM
Section 4-2
CX-Programmer
Ver. 4.0 or later
CS1D-H *
CS1H-H or CS1D-H
CS1D-S
CS1D-S
Programming Console
PRO27 O27
PROGRAMMING CONSOLE OGRAMMING CONSOLE
MONITOR
RUN PROGRAM
FUN SFT NOT
AND OR TR LR HR
CNT
LD OUT TIM DM CH
7 8 9 EXT
E F 5 6
4
B 1 C 2 D 3
A 0
EAR MIC
