Units on CS1D Long-distance Expansion Racks

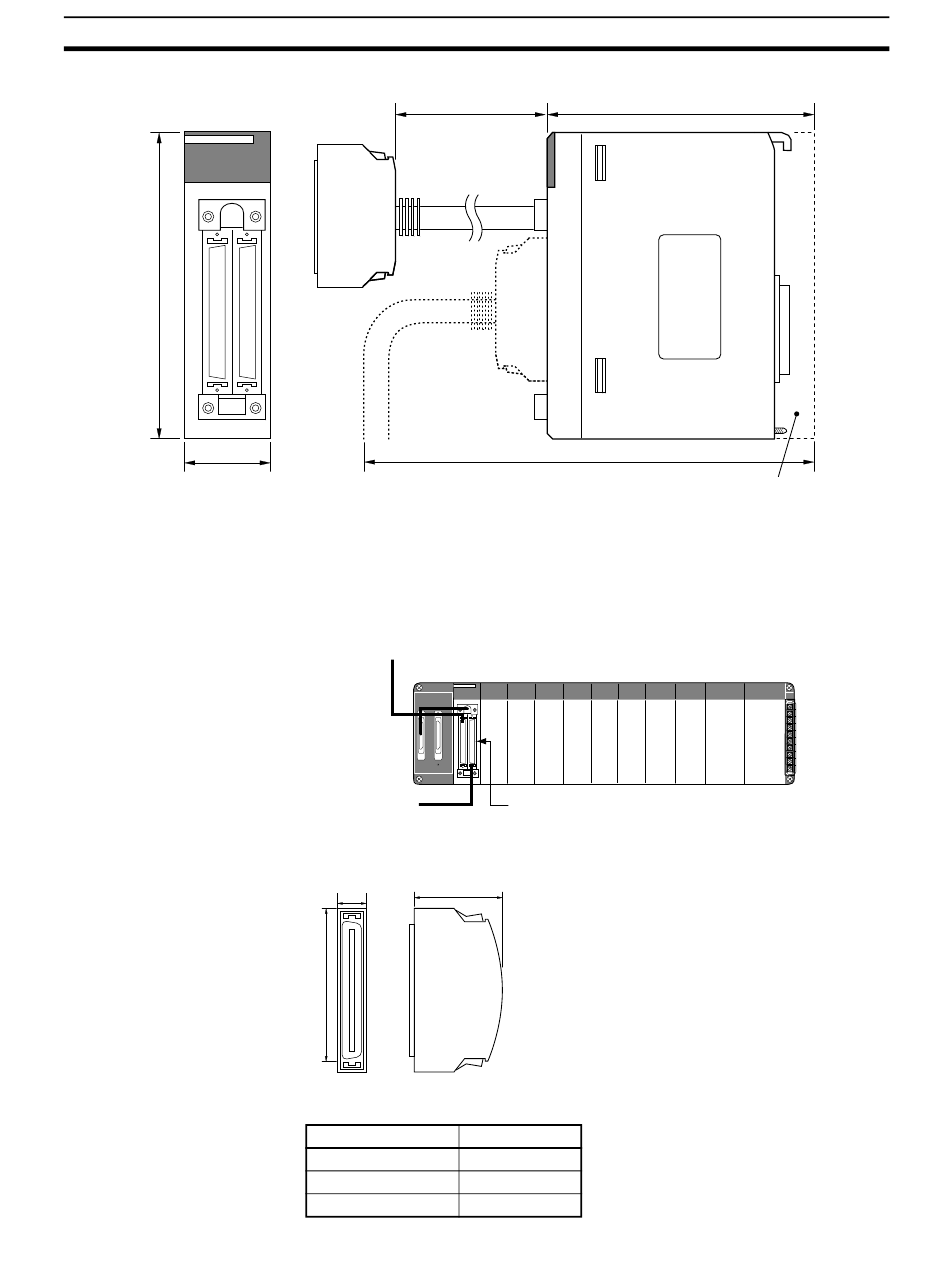

Dimensions and Weight
II102
RDY
130
34.5
Weight: 300 max. (including connector to Backplane)
Connection Method
CV500-TER01 Terminator
Long-distance Expansion
Cable
CS
Connect the I/O Interface Unit to the input I/O cable connector on the Back-
plane (left side). Always connect a Terminator (CV500-TER01) to the connec-
tor for the next Rack when it is not used (i.e., on the last Long-distance
Expansion Rack in the series).
To the previous Rack
(I/O Control Unit or
I/O Interface Unit)
To the next Rack
(I/O Interface Unit)
Two Terminators are provided with an I/O Control Unit.
12
68
Use CV-series Expansion Cable for long-distance expansion cable.
Model number
CV500-CN312
CV500-CN612
CV500-CN122
190
236.5
IC102 CS
RDY
TER ERR
Connect a Terminator when not used.
37
Weight: 50 g max.
Length
0.3 m
0.6 m
1 m
Section 2-10
123
Backplane
CS1 Long-
distance
Expansion
Rack
