CS1D Duplex System Overview and Features

1-1

CS1D Duplex System Overview and Features

1-1-1

CS1D Duplex System Overview

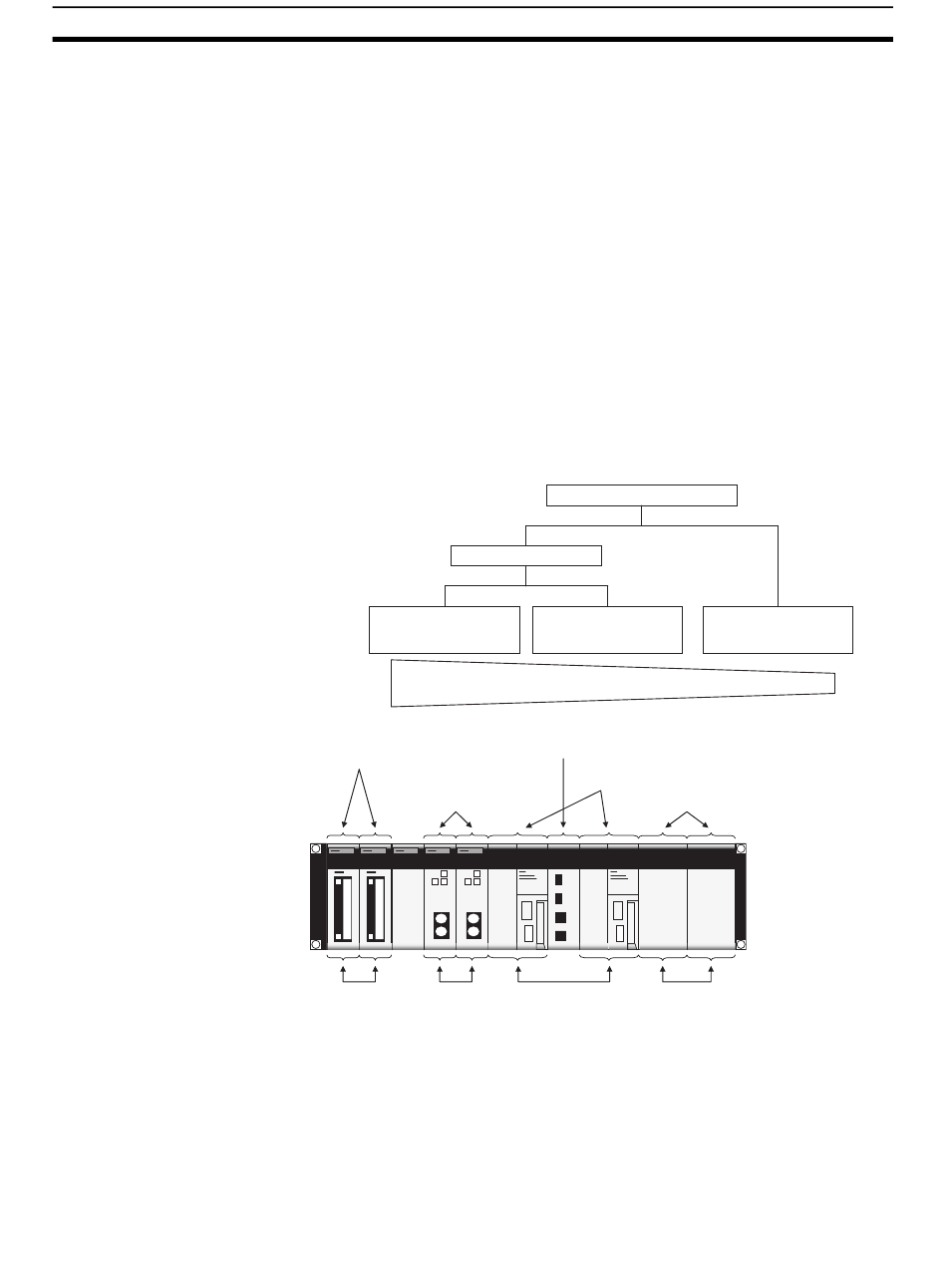

CS1D Duplex System
Configurations
Duplex CPU, Dual I/O
Expansion System
2
The CS1D Duplex System is a highly reliable Programmable Controller (PLC)
System. By providing duplex CPU Units, Power Supply Units, and Communi-
cations Units, the CS1D can continue control operations and be restored with
no need to shut down the entire system in the event of an error or malfunction.
Select from either of two Duplex Systems: A Duplex CPU System or a Single
CPU System. A Duplex CPU System includes two CPU Units. Even if an error
occurs in the active CPU Unit, the standby CPU Unit continues operation,
thus preventing a system shutdown. The Single CPU System uses a single
CPU Unit. In either System, duplex Power Supply Units or Communications
Units can be used to provide high reliability in the event of an error in the
power supply system or the active Communications Unit.
It is now possible to select a Duplex CPU with duplex Connecting Cables
(Dual I/O Expansion System), as well as the previously available Duplex CPU
with a single Connecting Cable (Single I/O Expansion System).
Duplex CPU system
Duplex CPU, Dual
I/O Expansion System
High
Redundancy
CS1D I/O Control Unit
Communications Units
(Controller Link Unit or
Ethernet Unit)
Duplex Connecting
Duplex Communi-
Cables
cations Units
CS1D Duplex System
Duplex CPU, Single
I/O Expansion System
Duplex Unit
CPU Units for a
Duplex CPU System
CS1D Power Supply Units
Duplex CPU Units Duplex Power
Supply Units
Section 1-1
Single CPU System
Low
