Wiring Methods
188
Note Double-check to make sure that the Output Unit's power supply leads haven't
been reversed. If the leads are reversed, the Unit's internal fuse will blow and
the Unit will not operate.

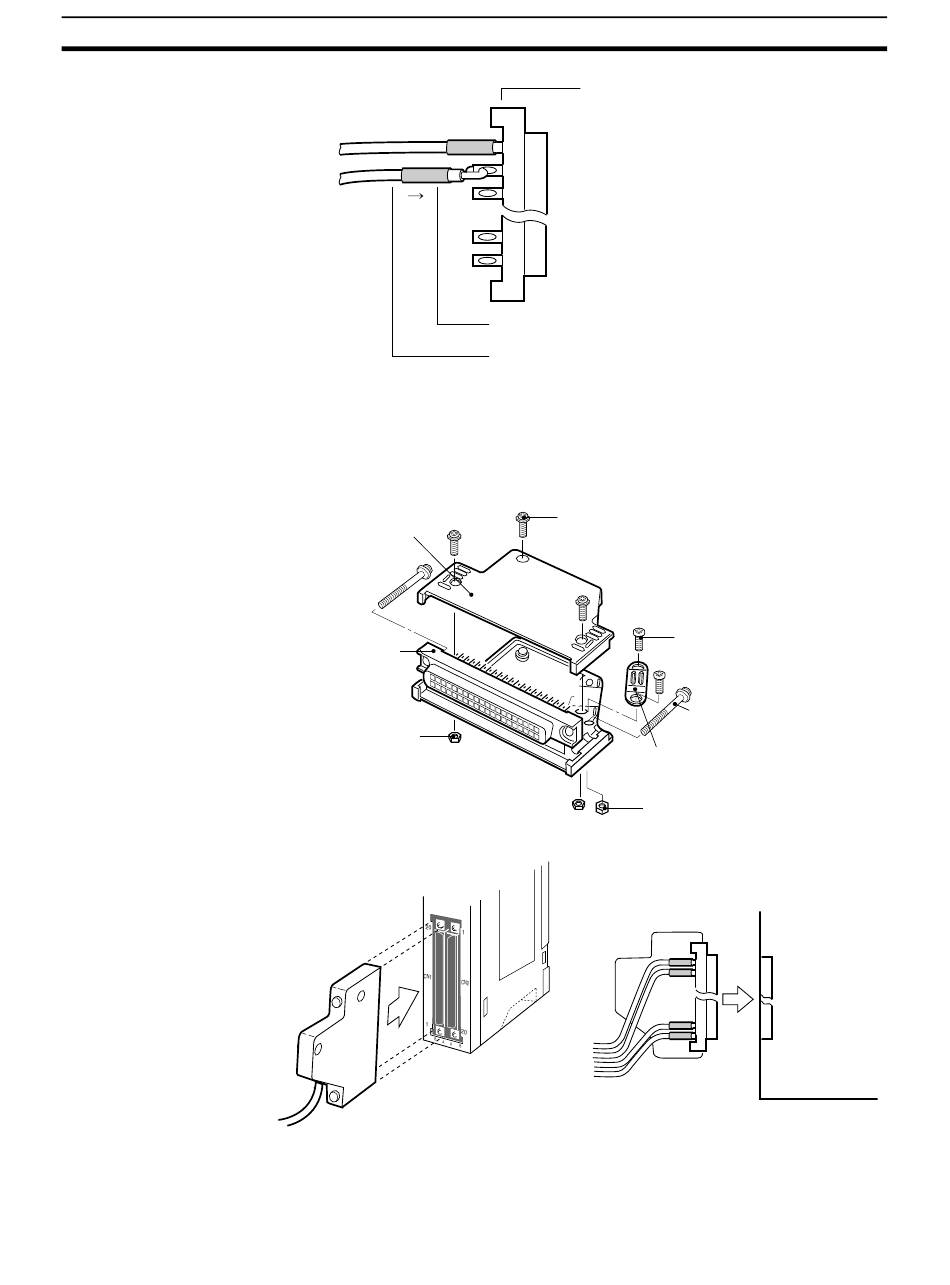

4. Assemble the connector (included or purchased separately) as shown in
the following diagram. (The shape of the 56-pin connector is different.)
Connector cover
Socket
Nuts (3)
5. Insert the wired connector.
Basic I/O Unit
Connector
6. Remove the label or other covering after wiring has been completed to al-
low air circulation needed for cooling.
Solder-type connector
included with Unit.
Heat-shrink tubing
2
Wire (0.2 to 0.13 mm )
Small screws (3)
Cable-securing
bracket
Nuts (2)
Connector
Section 5-4
Small screws (2)
Connector-attaching
screws
Basic I/O Unit
