Specific PLC Setup Settings
6-1-3 Tab Pages for Duplex Settings in the PLC Setup
6-2 Specific PLC Setup Settings

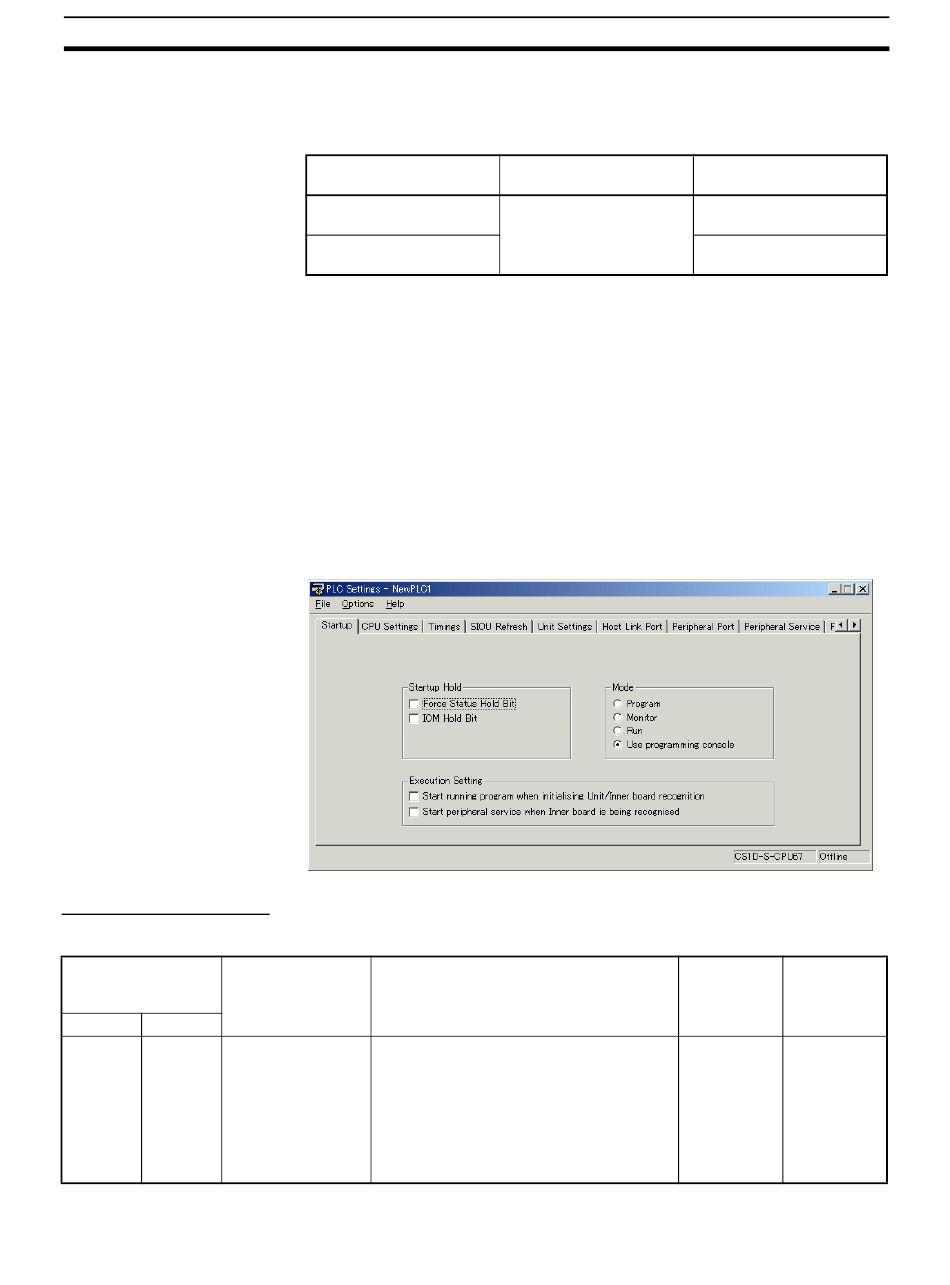

6-2-1 Startup Tab Page
Startup Hold Settings
Forced Status Hold Bit
Address in
Programming
Console
Word Bit(s)
80 14 0: Cleared
1: Retained
Default: 0
The location of duplex settings and the tab labels in CX-Programmer are dif-
ferent between version 3.@ and version 4.0 or higher.
Settings
CPU Unit duplex settings
Communications duplex
settings
The CX-Programmer version 4.0 tab labels are used in this manual.
The Programming Console addresses given in this section are used to access
and change settings in the PLC Setup when using a Programming Console or
the Programming Console function of an NS-series Programming Terminal.
The PLC Setup is stored in the Parameter Area, which can be accessed only
from a Programming Device. Do not use the Programming Console
addresses as operands in programming instructions. They will be interpreted
as addresses in the CIO Area of I/O memory.
Settings
This setting determines whether or not the
status of the Forced Status Hold Bit
(A50013) is retained at startup.
When you want all of the bits that have been
force-set or force-reset to retain their forced
status when the power is turned on, turn ON
the Forced Status Hold Bit and set this set-
ting to 1 (ON).
CX-Programmer Ver. 3.@
Duplex Tab Page
Function
Section 6-2
CX-Programmer Ver. 4.0
or higher
Comms Unit Duplex Tab
Page
CPU Duplex Tab Page
Related New set-
flags and ting's effec-
words tiveness
A50013 At startup
(Forced Sta-
tus Hold Bit)
