Basic Procedures
6. PLC Setup Settings
1,2,3...
These settings are the CPU Unit's software configuration. Refer to SECTION
6 PLC Setup for details on the settings.
Note The PLC Setup settings are arranged by word addresses when a Program-
ming Console is used to make PLC Setup settings. Refer to Appendix D PLC
Setup Coding Sheets for Programming Console for details.
Examples:
• For Duplex CPU Systems, setting automatic recovery to duplex mode
when an error causes a switch from duplex to simplex mode
• Settings for Duplex Communications Units (CS1W-CLK12-V1 and CS1W-
CLK52-V1)
• For Duplex CPU Systems, settings to connect a Programming Device to
the RS-232C port on the standby CPU Unit to monitor PLC operation
(write operations will not be possible)
Using the CX-Programmer

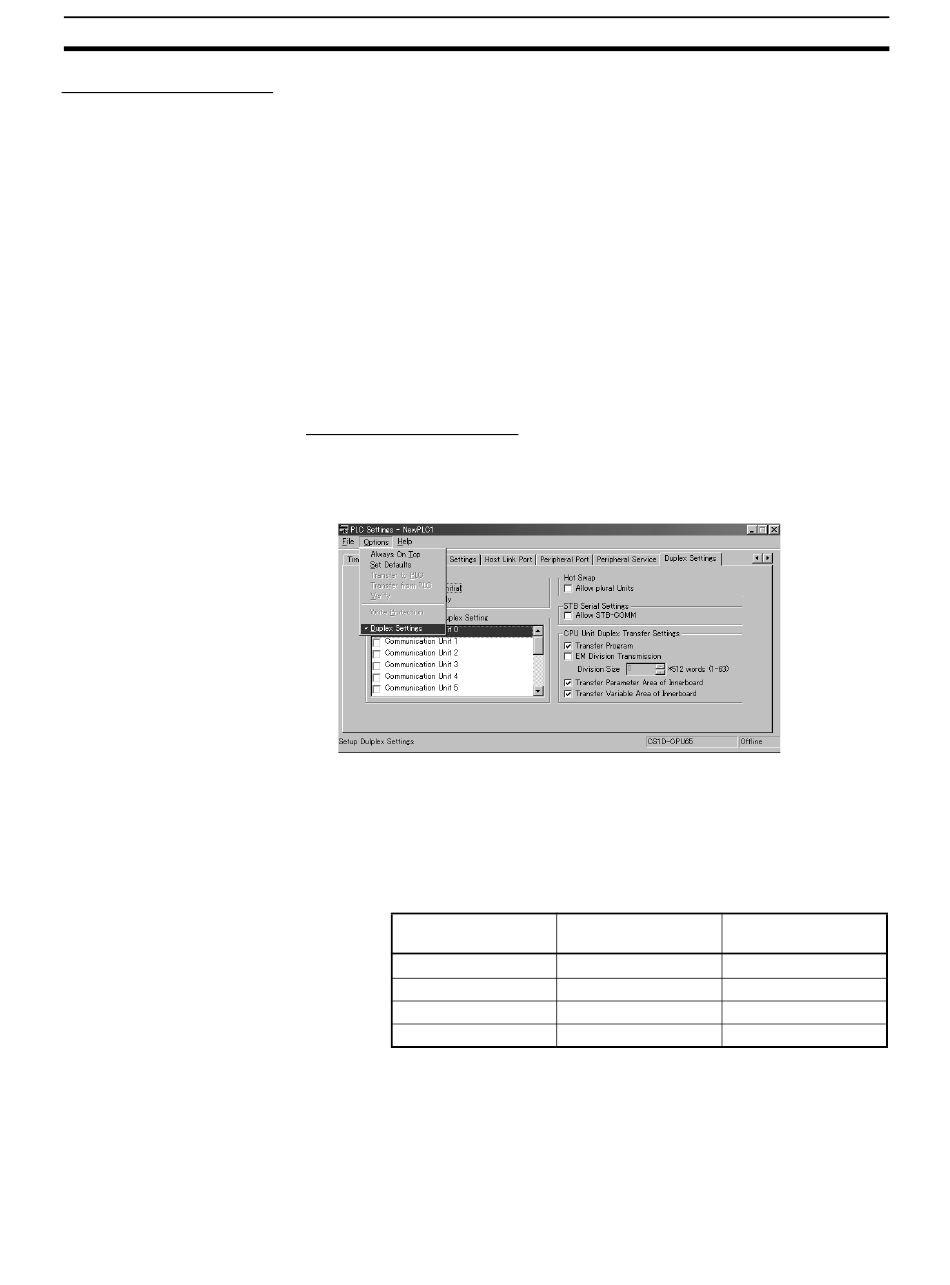

1. When setting the device type to "CS1H-H" for a Duplex CPU System, se-
lect Duplex Settings from the Options Menu on the PLC Settings Window
to enable setting the PLC Setup for a CS1D from the CX-Programmer.
Note The device type setting on the CX-Programmer depends on the
version of CX-Programmer being used. When setting the device
type to "CS1H-H" for a Duplex CPU System, select Duplex Set-
tings from the Options Menu on the PLC Settings Window to en-
able setting the PLC Setup for a CS1D from the CX-Programmer.
For other device type settings, the duplex settings can be made
without selecting this option.
CS1D-CPU
CS1D-CPU@@H
CS1D-CPU@@SA
CS1D-CPU@@S
CS1D-CPU@@HA requires CX-Programmer Ver. 9.7 or later.
*
2. Edit the PLC Setup and transfer it to the CPU Unit. (It can be transferred
separately or the CXP project can be saved and the PLC Setup can be
transferred together with the program.)
Note In a Duplex CPU System, transfer to PLC Setup to the active CPU
Unit. (It cannot be transferred to the standby CPU Unit.)
CX-Programmer
Model
Ver. 3.@
@@
Cannot be selected
HA
CS1H-H
Cannot be selected
Cannot be selected
Section 4-2
CX-Programmer
Ver. 4.0 or later
CS1D-H *
CS1H-H or CS1D-H
CS1D-S
CS1D-S
