Omron SYSMAC CS1D-PD Series Operation Manual page 536

Specifications of Basic I/O Units and High-density I/O Units

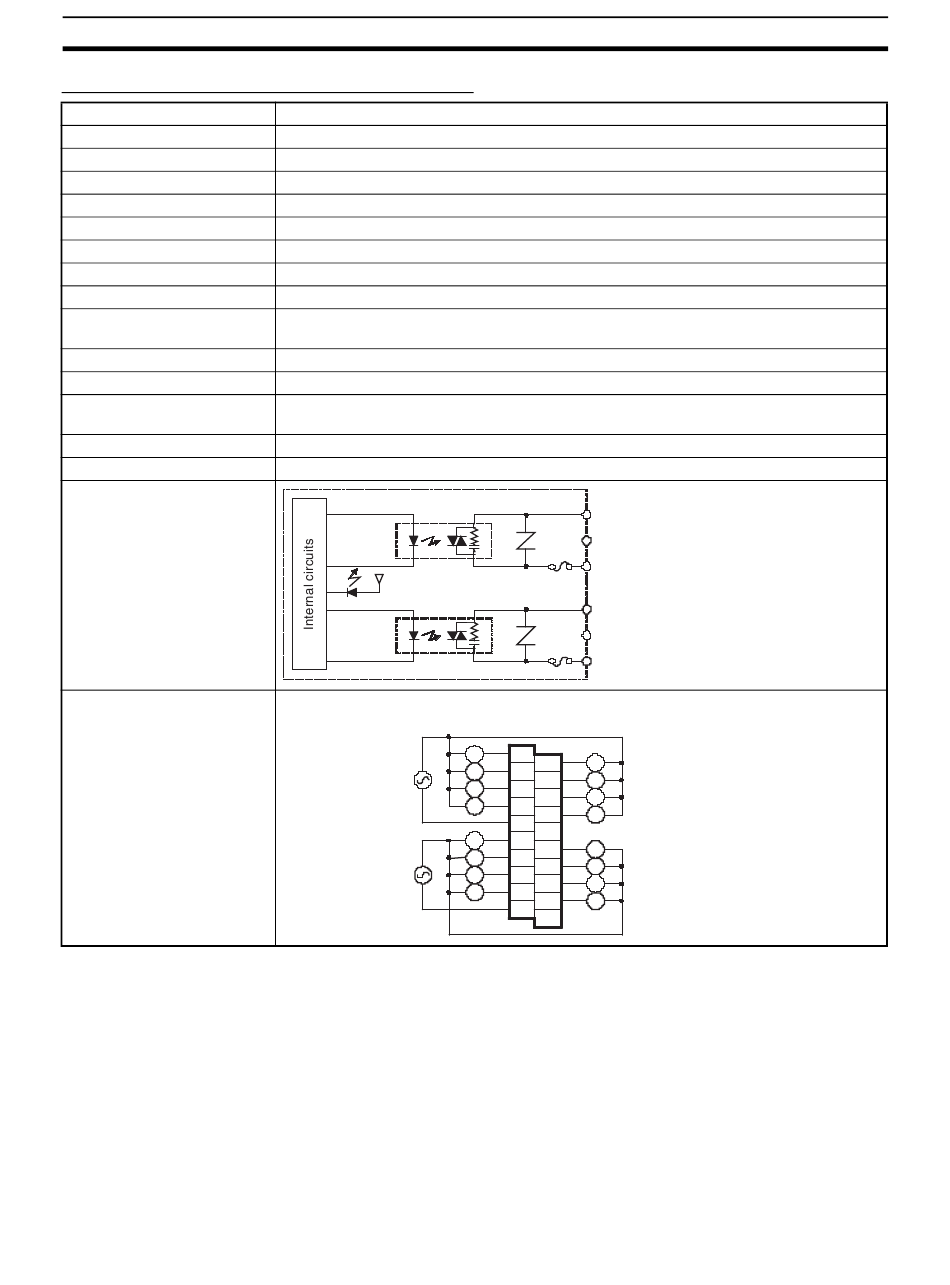

CS1W-OA211 Triac Output Unit (16 Points)
Max. Switching Capacity
Max. Inrush Current
Min. Switching Capacity
Leakage Current
Residual Voltage
ON Response Time
OFF Response Time
No. of Circuits
Surge Protector
Fuses
Blown Fuse Detection Circuit
Insulation Resistance
Dielectric Strength
Internal Current Consumption 406 mA 5 V DC max. (70 mA + 21 mA × No. of ON points)
Weight
Circuit Configuration
Terminal Connections
Note Terminal numbers A0 to A9 and B0 to B9 are used in this manual, but they are not printed on the Unit.
496
0.5 A 250 V AC, 50/60 Hz (2 A/common, 4 A/Unit)
15 A (pulse width: 10 ms)
50 mA 75 V AC
1.5 mA (200 V AC) max.
1.6 V AC max.
1 ms max.
1/2 of load frequency+1 ms or less.
16 points (8 points/common, 2 commons)
C.R Absorber + Surge Absorber
2 × 4 A (1 per common)
The fuse cannot be replaced by the user.
None
20 MΩ between the external terminals and the GR terminal (500 V DC)
2,000 V AC between the external terminals and the GR terminal for 1 minute at a leakage
current of 10 mA max.
300 g max.
Output indicator
0.5 A 250 VAC max.
OUT0
to
OUT7
COM0
Fuse
OUT8
to
OUT15
COM1
Fuse
0
L A0 1
2 B0 L
L A1 3
4 B1 L
L A2 5
6 B2 L
L A3 7
B3 L
COM0
A4 NC
8 B4
L A5 9
10 B5 L
L A6 11
12 B6 L
L A7 13
14 B7 L
L A8 15
B8 L
COM1
A9 NC
B9
Appendix A
