Backplanes

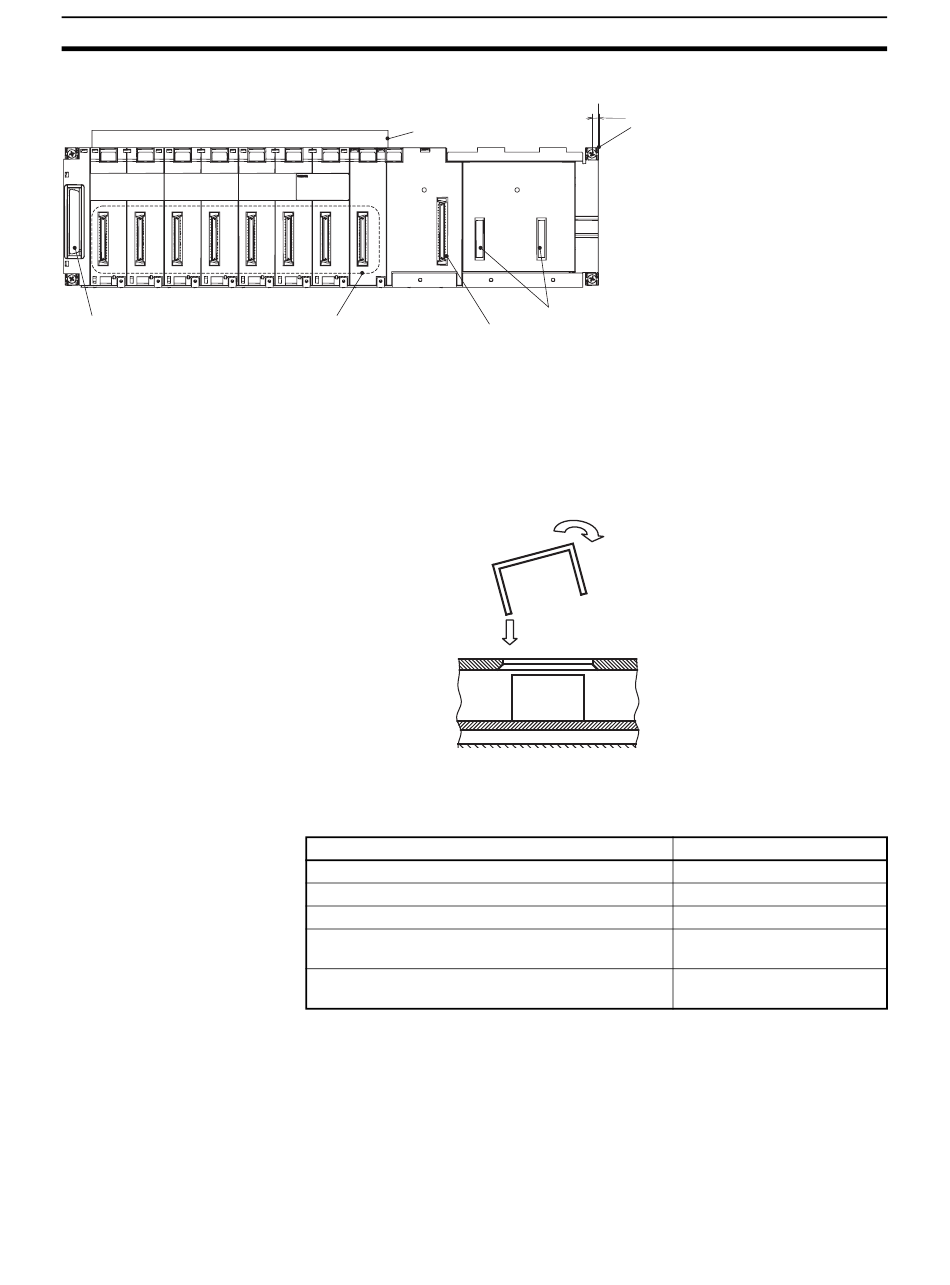

CPU Backplane for Single CPU Systems: CS1D-BC082S
Connecting Cable connector
90
Slots for mounting
CS-series Units
CS-series Unit connectors
Note To protect unused connectors, always cover them with CV500-COV01 I/O
Unit Connector Covers (sold separately) or mount the CS1W-SP001 Spacer
Unit (sold separately).
Covering the connector with the CV500-COV01 (sold separately) will be eas-
ier if you insert it into the side with the larger gap next to the connector first
and then rotate it and insert it in the smaller gap.
When using only one Power Supply Unit, cover the unused Power Supply
Unit connector with a C500-COV01 Power Supply Unit Connector Covers
(sold separately).
I/O Unit Connector Cover
I/O Unit Spacer Unit
Power Supply Unit Connector Cover
Power Supply Unit Spacer Cover (same shape as
PA207R)
Power Supply Unit Spacer Cover (same shape as
PD024)
6.25
Backplane mounting screws
Power Supply Unit connectors (two)
CPU Unit for Single CPU
Systems connectors
B
A
Name
Section 2-8
Model
CV500-COV01
CS1W-SP001
C500-COV01
CS1D-SP001
CS1D-SP002
