System Configuration

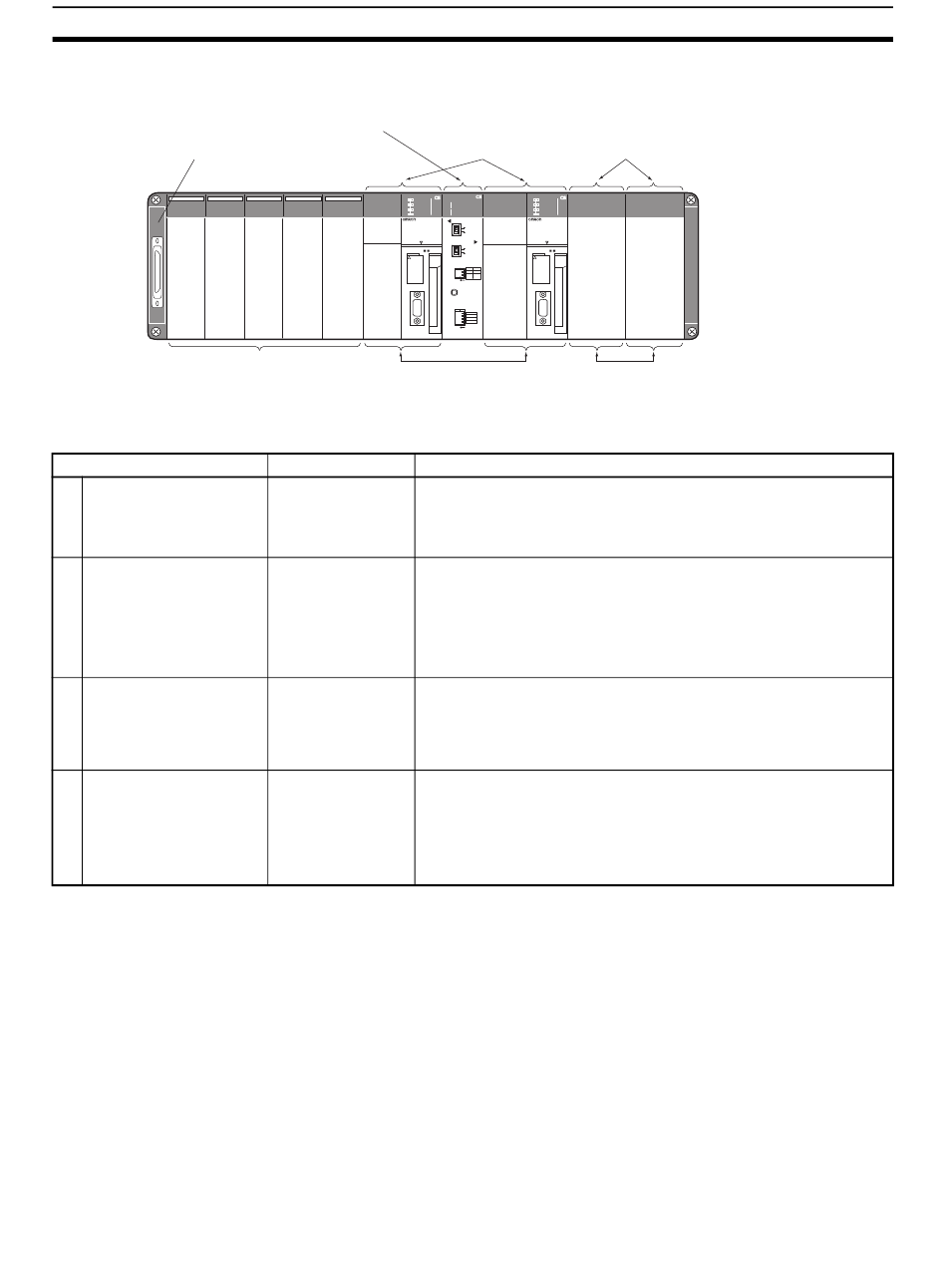

CS1D CPU Rack for a Duplex CPU, Single I/O Expansion System
4) CS1D-BC052 CPU
Backplane for Duplex CPU
Systems (See note.)
A maximum of 5 Units can be mounted.
· CS-series Basic I/O Units
· CS-series Special I/O Units and CPU
Bus Units
Note: C200H Units cannot be mounted.
Name
1 Duplex Unit
(Especially for a Duplex
CPU, Single I/O Expan-
sion System)
2 CPU Units for Duplex
CPU Systems
3 CS1D Power Supply
Units
4 CPU Backplane for
Duplex CPU Systems
(Especially for a Duplex
CPU, Single I/O Expan-
sion System)
14
2) CS1D-CPU65H/67H/65P/67P/
1) CS1D-DPL01
Duplex Unit
RUN
ERR/ALM
INH
PRPHL
SYSMAC
CS1D-CPU67H
PROGRAMMABLE CONTROLLER
MCPWR BUSY
OPEN
PERIPHERAL
PORT
Duplex CPU Units
Model number
CS1D-DPL01 The Duplex Unit is the Unit that controls duplex system operation. It
monitors for errors and switches operation when an error occurs.
This Duplex Unit cannot be used in a Duplex CPU, Dual I/O Expan-
sion System.
CS1D-CPU67HA CPU Units for Duplex CPU System are designed especially for a
CS1D-CPU68HA Duplex CPU System. Two CPU Units of the identical model are
CS1D-CPU65H mounted.
CS1D-CPU67H
CPU Units on which the Duplex CPU Compatible Setting has been
CS1D-CPU65P
changed can be used.
CS1D-CPU67P
These CPU Units cannot be used in a Single CPU System.
CS1D-PA207R CS1D Power Supply Units are designed especially for a Duplex Sys-
CS1D-PD024 tem. Two Power Supply Units are mounted to a CPU Rack, Expan-
CS1D-PD025 sion Rack, or Long-distance Expansion Rack for a duplex power
supply configuration. When not configuring a duplex power supply,
only one Power Supply Unit is mounted.
CS1D-BC052 A CPU Backplane for Duplex CPU System is used in a Duplex CPU
System. It allows Duplex CPU Units, Duplex Power Supply Units,
and Duplex Communications Units to be mounted, and enables
online Unit replacement.
This Backplane cannot be used in a Duplex CPU, Dual I/O Expan-
sion System.
Note When using a Memory Card in Duplex Mode, mount it in the active CPU Unit.
(Duplex Memory Card operation is not possible.) Duplex EM File Memory
operation is possible.
67HA/68HA CPU Units for
3) CS1D-PA207R
Duplex CPU Systems
DPL01
DPL STATUS RUN
ACTIVE
L ERR/ALM
CPU STATUS
BKUP ACTIVE INH BKUP
R
COMM CPU STATUS PRPHL COMM
LEFT CPU
SYSMAC
CS1D-CPU67H
USE
PROGRAMMABLE CONTROLLER
NO USE
RIGHT CPU
USE
MCPWR BUSY
NO USE
OPEN
DPL SW
ON OFF
SPL DPL
ACT. ACT.
LEFT RIGHT
ON
PERIPHERAL
INIT.
SW
PRPHL
COMM
A39512
RSV
ON PORT
DUPLEX DUPLEX
