Basic Procedures
CX-Programmer
1. Click the bit to be force-set or force-reset.
2. Select Force On or Off from the PLC
menu.
156

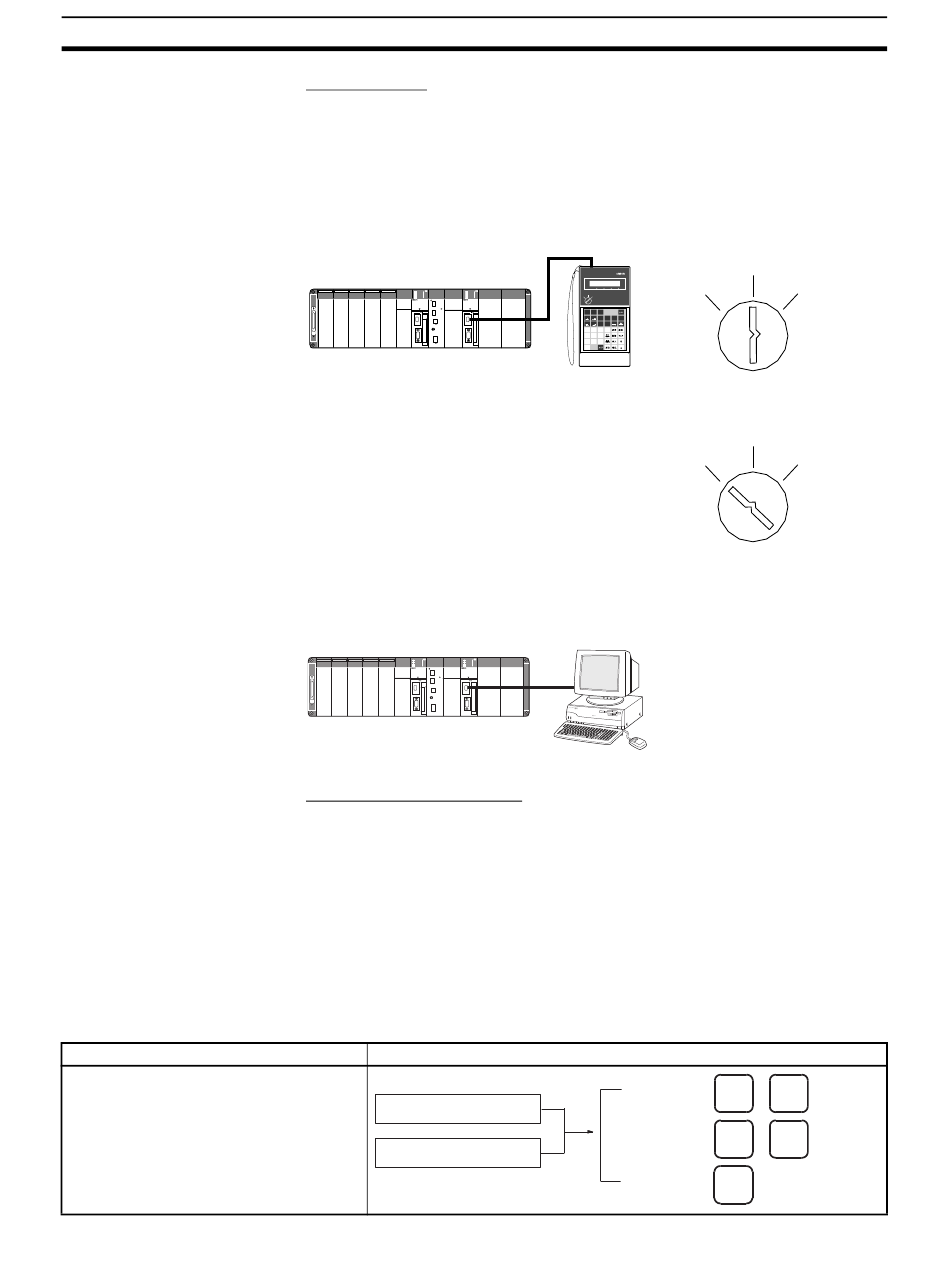

Trial Operation
Use the Programming Console or Programming Device (CX-Programmer) to
switch the CPU Unit to MONITOR mode.
Using a Programming Console
Turn the Mode Switch to MONITOR for the trial operation. (Turn the switch to
RUN for full-scale PLC operation.)
RUN RUN
ERR/ALM ERR/ALM
INH BKUP INH BKUP
PRPHL COMM PRPHL COMM
LEFT CPU
SYSMAC SYSMAC
CS1D-CPU67H CS1D-CPU67H
PROGRAMMABLE CONTROLLER PROGRAMMABLE CONTROLLER
RIGHT CPU
MCPWR BUSY MCPWR BUSY
DPL SW
ON
INIT.
SW
PORT ON PORT
DUPLEX
Using the CX-Programmer
The PLC can be put into MONITOR mode with a host computer running CX-
Programmer.
RUN RUN
ERR/ALM ERR/ALM
INH BKUP INH BKUP
PRPHL COMM PRPHL COMM
LEFT CPU
SYSMAC SYSMAC
CS1D-CPU67H CS1D-CPU67H
PROGRAMMABLE CONTROLLER PROGRAMMABLE CONTROLLER
RIGHT CPU
MCPWR BUSY MCPWR BUSY
DPL SW
ON
INIT.
SW
PORT ON PORT
DUPLEX DUPLEX

Monitoring and Debugging

There are several ways to monitor and debug PLC operation, including the
force-set and force-reset operations, differentiation monitoring, time chart
monitoring, data tracing, and online editing.
Force-Set and Force-Reset
When necessary, the force-set and force-reset operations can be used to
force the status of bits and check program execution.
When a Programming Console is being used, monitor the bits with Bit/Word
Monitor or 3-word Monitor. Press the SHIFT+SET Keys to force-set a bit or
press the SHIFT+RESET Keys to force-reset a bit. The forced status can be
cleared by pressing the NOT Key.
Bit/Word Monitor display
3-word Monitor display
Trial Operation
MONITOR
PRO27
PROGRAMMING CONSOLE OGRAMMING CONSOLE
RUN
MONITOR
RUN PROGRAM
FUN SFT NOT
OR
AND CNT TR LR HR
LD OUT DM CH
TIM
8 9
7 EXT
E F
4 5 6
B C D
1 2 3
A
0
EAR MIC
Programming
Console
Actual operation
MONITOR
RUN
Trial Operation
Select PLC, Mode, MONITOR.
Actual operation
Select PLC, Mode, RUN.
CX-Programmer
Programming Console
Force-set:
SHIFT
Force-reset:
SHIFT
Clear:
NOT
Section 4-2
PROGRAM
PROGRAM
SET
SET
