Omron SYSMAC CS1D-PD Series Operation Manual page 55

System Configuration

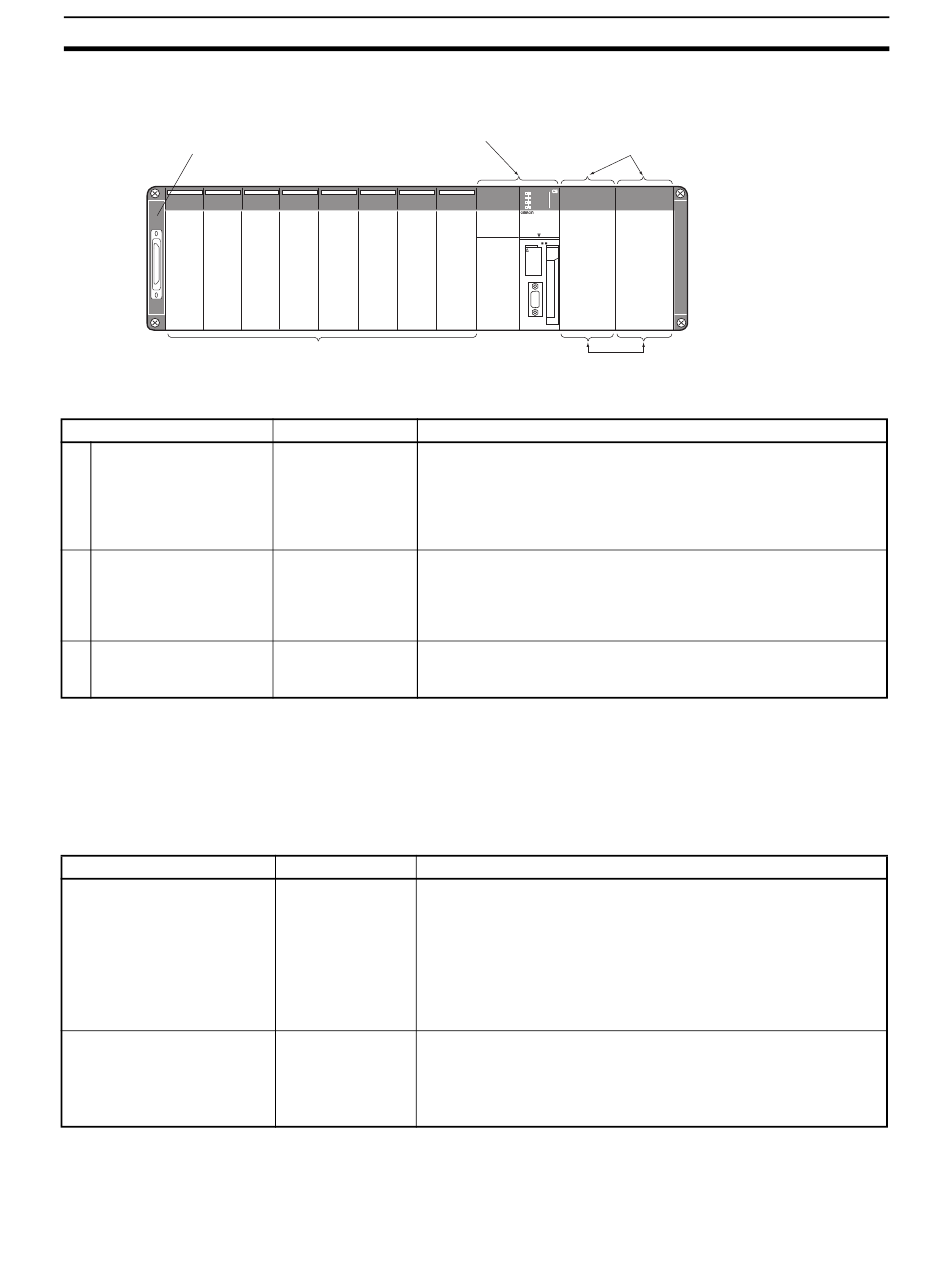

CS1D CPU Rack for a Single CPU System
CS1D-BC082S
CPU Backplane
for Single CPU Systems (See note.)
A maximum of 8 Units can be mounted.
· CS-series Basic I/O Units
· CS-series Special I/O Units and CPU Bus Units
Note: C200H Units cannot be mounted.
Name
1 CPU Units for Single
CPU Systems
2 CS1D Power Supply
Units
3 CPU Backplane for Sin-
gle CPU Systems
CS1D CPU Rack and CS1D Expansion Racks for a Duplex CPU, Dual I/O Expansion System
Name
Expansion Backplane Sup-
porting Online Replacement
(Especially for a Duplex CPU,
Dual I/O Expansion System)
CS1D I/O Interface Unit
(Especially for a Duplex CPU,
Dual I/O Expansion System)
1) CS1D-CPU@@SA/S CPU Unit
for Single CPU Systems
Model number
CS1D-CPU44SA These CPU Units are designed especially for a Single CPU System.
CS1D-CPU67SA These CPU Units cannot be used in a Duplex CPU System.
CS1D-CPU42S
CS1D-CPU44S
CS1D-CPU65S
CS1D-CPU67S
CS1D-PA207R CS1D Power Supply Units are designed especially for a CS1D Sys-
CS1D-PD024 tem. Two Power Supply Units are mounted to a CPU Rack, Expan-
CS1D-PD025 sion Rack, or Long-distance Expansion Rack for a duplex power
supply configuration. When not configuring a duplex power supply,
only one Power Supply Unit is mounted.
CS1D-BC082S This CPU Backplane is designed for a Single CPU System and does
not support Duplex CPU Units. It does support Duplex Power Supply
Units, Duplex Communications Units, and online Unit replacement.
The CS1D Expansion Racks in a Duplex CPU, Dual I/O Expansion System
are specifically for this system configuration. Use the following Expansion
Backplanes and I/O Interface Units, which are specifically for the Duplex
CPU, Dual I/O Expansion System.
Model number
CS1D-BI082D This Expansion Backplane is used in a Duplex CPU System, Dual
I/O Expansion System. It allows the mounting of Duplex Power Sup-
ply Units and Duplex Communications Units, as well as online Unit
replacement and online addition of Units and Backplanes.
This Backplane cannot be used in a Duplex CPU, Single I/O Expan-
sion System or Single CPU System.
This Backplane cannot be used for a Long-distance Expansion
Rack.
CS1D-II102D These Units are required to create a Duplex CPU, Dual I/O Expan-
sion System. The Connecting Cables can be duplexed by using two
of these Units.
These I/O Control Units cannot be used in a Duplex CPU, Single I/O
Expansion System or Single CPU System.
2) CS1D-PA207R
CS1D-PD024/025
Power Supply Units
RUN
ERR/ALM
INH BKUP
PRPHL COMM
SYSMAC
CS1D-CPU67H
PROGRAMMABLE CONTROLLER
MCPWR BUSY
OPEN
CS1D CPU Rack
PERIPHERAL
PORT
Duplex Power
Supply Units
Contents
Contents
Section 1-2
15
