Omron SYSMAC CS1D-PD Series Operation Manual page 247

Specific PLC Setup Settings
Programming
Console address
Word Bit(s)
+ 202 0 to 15 0001 to FFFF (Unit:
0.1 s, 0.1 to 6553.5)
0000: 2 s

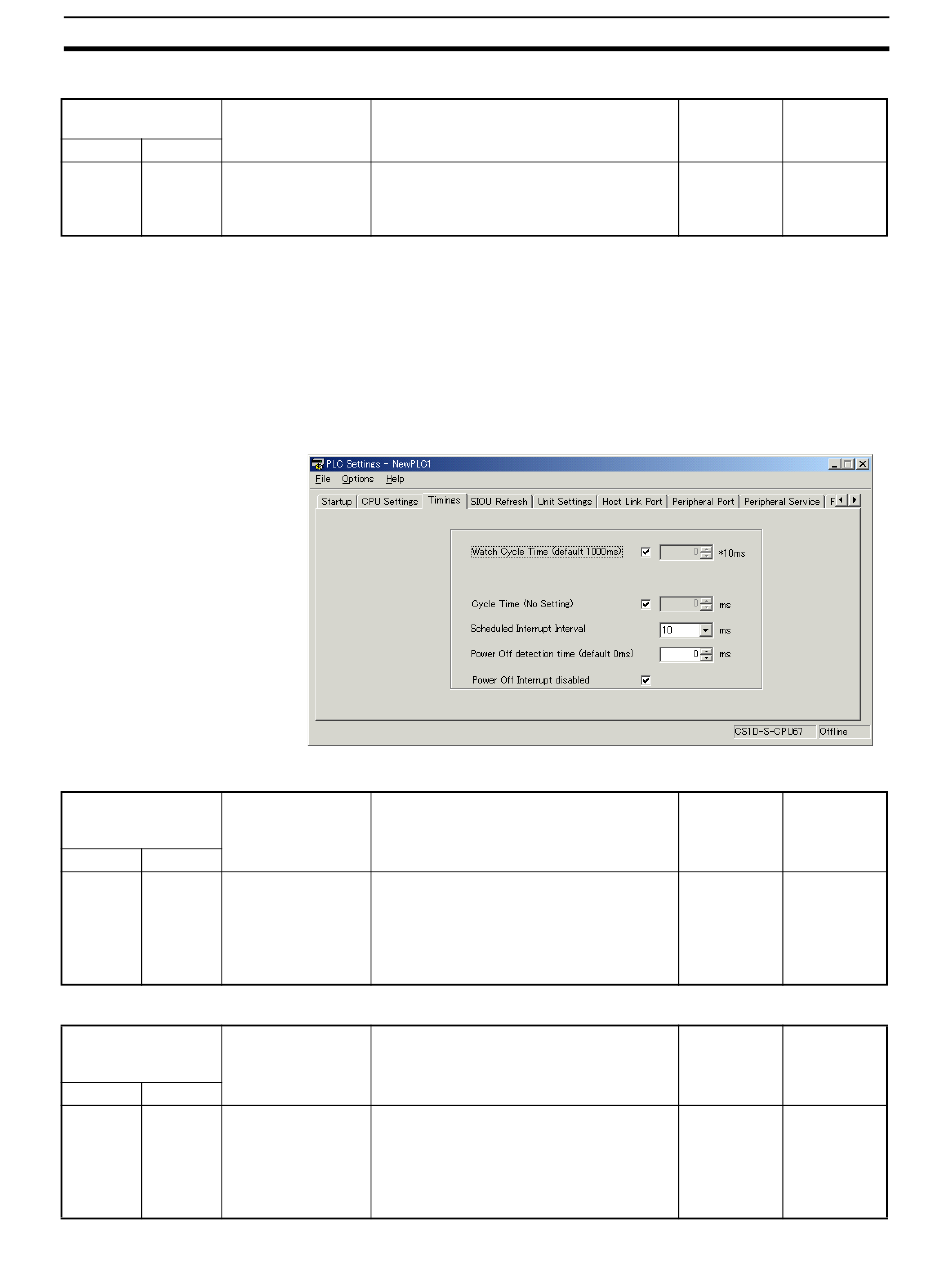

6-2-3 Timings Tab Page
Watch Cycle Time
Address in
Programming
Console
Word Bit(s)
209 0 to 14 001 to FA0 hex: 10
to 40,000 ms
(10-ms units)
Default: 001 (1 s)
Enable Watch Cycle Time Setting
Address in
Programming
Console
Word Bit(s)
209 15 0: Default
1: Bits 0 to 14
Default: 0
DeviceNet Communications Instruction Response Monitoring Time
■
Settings
A response timeout occurs when no
response is returned within the time set here
for explicit messages commands executed
within a function block.
Note The number of resends and response monitoring time must be set by the user
in the FB communications instructions settings in the PLC Setup, particularly
when using function blocks from the OMRON FB Library to execute FINS
messages or DeviceNet explicit messages communications. The values set in
this PLC Setup for OMRON FB Library will be automatically stored in the
related Auxiliary Area words A580 to A582 and used by the function blocks
from the OMRON FB Library.
Settings
This setting is valid only when bit 15 of 209
is set to 1. The Cycle Time Overrun Flag
(A40108) will be turned ON if the cycle time
exceeds this setting.
Settings
Set to 1 to enable the Watch Cycle Time
Setting in bits 0 to 14. Leave this setting at 0
for a maximum cycle time of 1 s.
Function
Function
Function
Section 6-2
Related New set-
ting's effec-
flags and
words tiveness
A582 Start of oper-
ation
Related New set-
flags and ting's effec-
words tiveness
A264 and At the start of
A265 operation
(Present
(Can't be
Cycle Time)
changed dur-
ing opera-
tion.)
Related New set-
flags and ting's effec-
words tiveness
A40108 At the start of
(Cycle Time operation
Overrun Flag)
(Can't be
changed dur-
ing opera-
tion.)
207
