Omron SYSMAC CS1D-PD Series Operation Manual page 539

Specifications of Basic I/O Units and High-density I/O Units

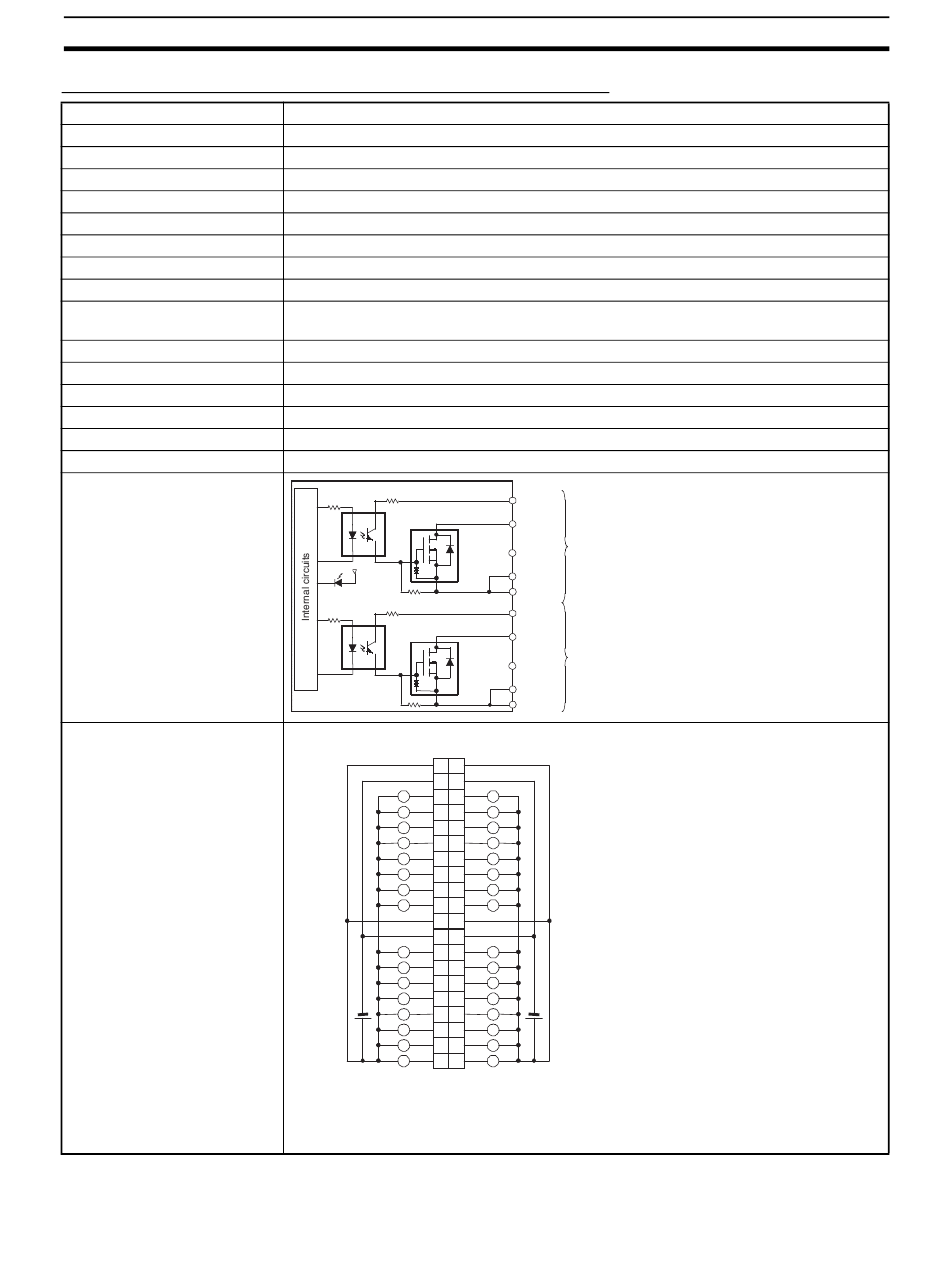

CS1W-OD231 Transistor Output Unit (32 Points, Sinking)
Rated Voltage
Operating Load Voltage Range 10.2 to 26.4 V DC
Maximum Load Current
Maximum Inrush Current
Leakage Current
Residual Voltage
ON Response Time
OFF Response Time
Insulation Resistance
Dielectric Strength
No. of Circuits
Internal Current Consumption
Fuses
External Power Supply
Weight
Accessories
Circuit Configuration
Terminal Connections
Note The maximum load currents will be 2.0 A/common and 4.0 A/Unit if a pressure-welded connector is
used.
12 to 24 V DC
0.5 A/point, 2.5 A/common, 5.0 A/Unit (See note.)
4.0 A/point, 10 ms max.
0.1 mA max.
1.5 V max.
0.5 ms max.
1.0 ms max.
20 MΩ between the external terminals and the GR terminal (100 V DC)
1,000 V AC between the external terminals and the GR terminal for 1 minute at a leak-
age current of 10 mA max.
32 (16 points/common, 2 circuits)
5 V DC 270 mA max.
None
10.2 to 26.4 V DC, 30 mA max.
200 g max.
One connector for external wiring (soldered)
Output indicator
I/O word "m+1"
B A
20 20
+V
19 19
COM1 COM0
18 18
L
15
17 17
L
14
16 16
L
13
15 15
L
12
14 14
L
11
13 13
L
10
12 12
L
9
11 11
L
8
10 10
+V
9 9
COM1 COM0
8 8
L
7
7 7
L
6
6 6
L
5
5 5
L
4
4 4
L
12 to 24 VDC
3
3 3
L
2
2 2
L
1
1 1
L
0
• When wiring, pay careful attention to the polarity. The load may operate if the polarity is
reversed.
• Although the +V and COM terminals of rows A and B are internally connected, wire all
points completely.
+V
OUT00
to
A
OUT15
COM0
COM0
+V
OUT00
to
B
OUT15
COM1
COM1
I/O word "m"
+V
L
15
L
14
L
13
L
12
L
11
L
10
L
9
L
8
+V
L
7
L
6
L
5
L
4
L
12 to 24 VDC
3
L
2
L
1
L
0
Appendix A
499
