Adjusting The Pen Force - GRAPHTEC Cutting PRO FC2230 Series Service Manual

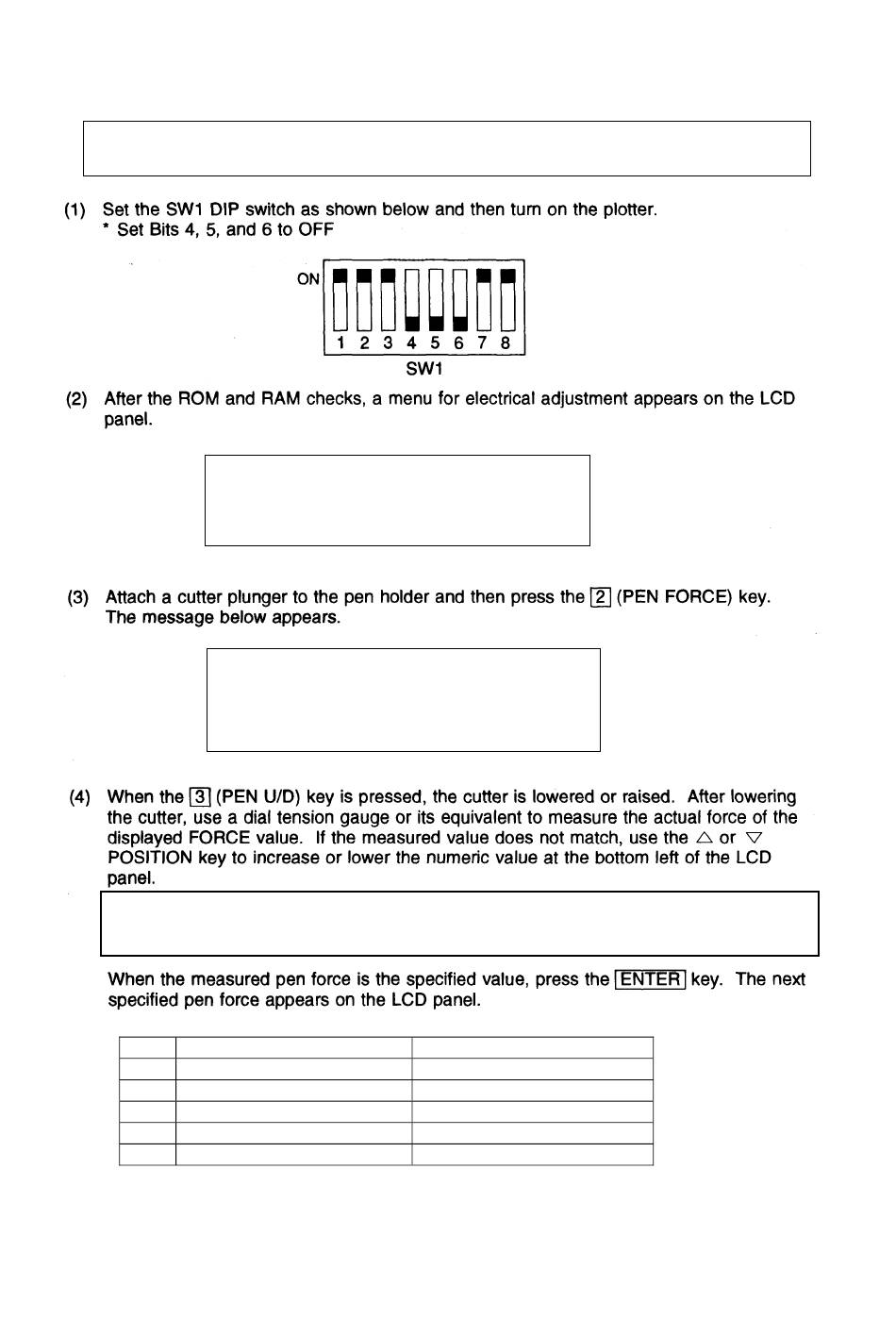

7.11 Adjusting the Pen Force

NOTE: Are case of the 2-pen models adjustments are part of NO.2 pen holder and
check of other side pen holder.
ＰＥＮ ＨＥＩＧＨＴ
ＰＥＮ ＦＯＲＣＥ
ＦＯＲＣＥ ＊ｇ
NOTE: After you have changed the numeric value on the LCD, press the F3 key
PEN U/D to raise and lower the cutter before measuring the pen force again.
Repeat the above procedure in the sequence.
Standard pressure models
1
10
20
30
40
FC2230-UM251-01-1600
ＰＡＲＡＬＬＥＬ
ＰＥＮ Ｕ／Ｄ
＊＊＊＊
( Are case of standard pressure models )
High pressure models
5g
40g
130g
280g
500g
10g
80g
260g
560g
1kg
7-14
