Parts Replacing and Cleaning > Saddle Stitcher Assembly > Pulling out the Saddle Unit (service position) > Procedure

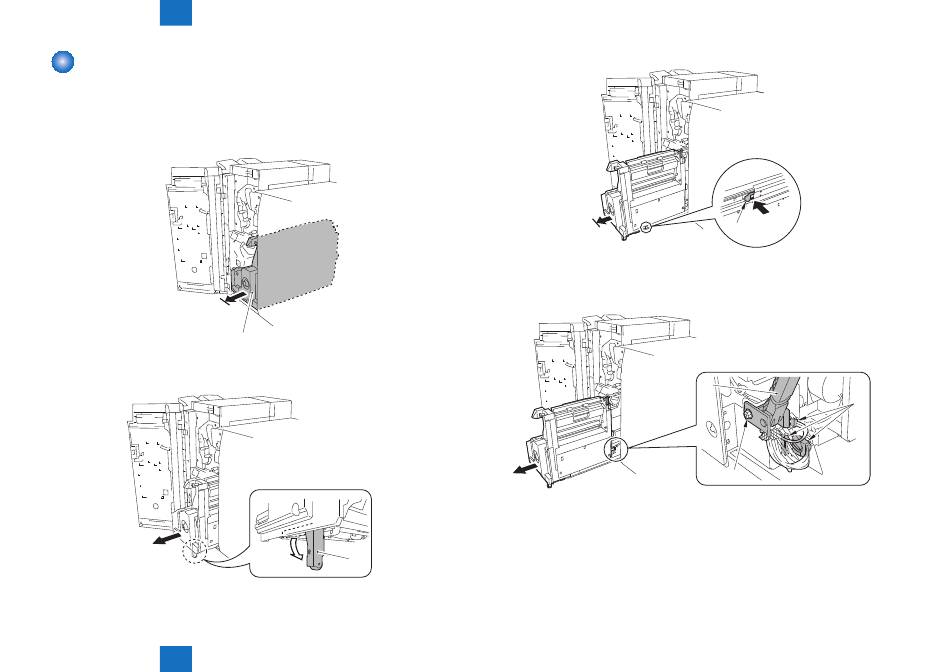

Pulling out the Saddle Unit (service position)

■ Preparation

1) Open the Front Cover.

■ Procedure

1) Pull out the Saddle Unit [1] by approx. 20 cm.
2) Pull out the Auxiliary Caster [1] in the direction of the arrow [A], and pull out the Saddle Unit
in the direction of the arrow [B].
[B]
4
Parts Replacing and Cleaning > Saddle Stitcher Assembly > Pulling out the Saddle Unit (service position) > Procedure
[1]
F-4-239
[A]
[1]
F-4-240
3) Release the Rail Stopper [1], and pull out the Saddle Unit by approx. 5 cm.
4) Remove the Harness Guide [1], and pull out the Saddle Unit until it stops.
• 3 Connectors [2]
• 1 Screw [3]
4-99
[1]
F-4-241
[1]
[2]
[3]
F-4-242
4-99
