Vacon 100 flow Applications Manual page 97

USER INTERFACES

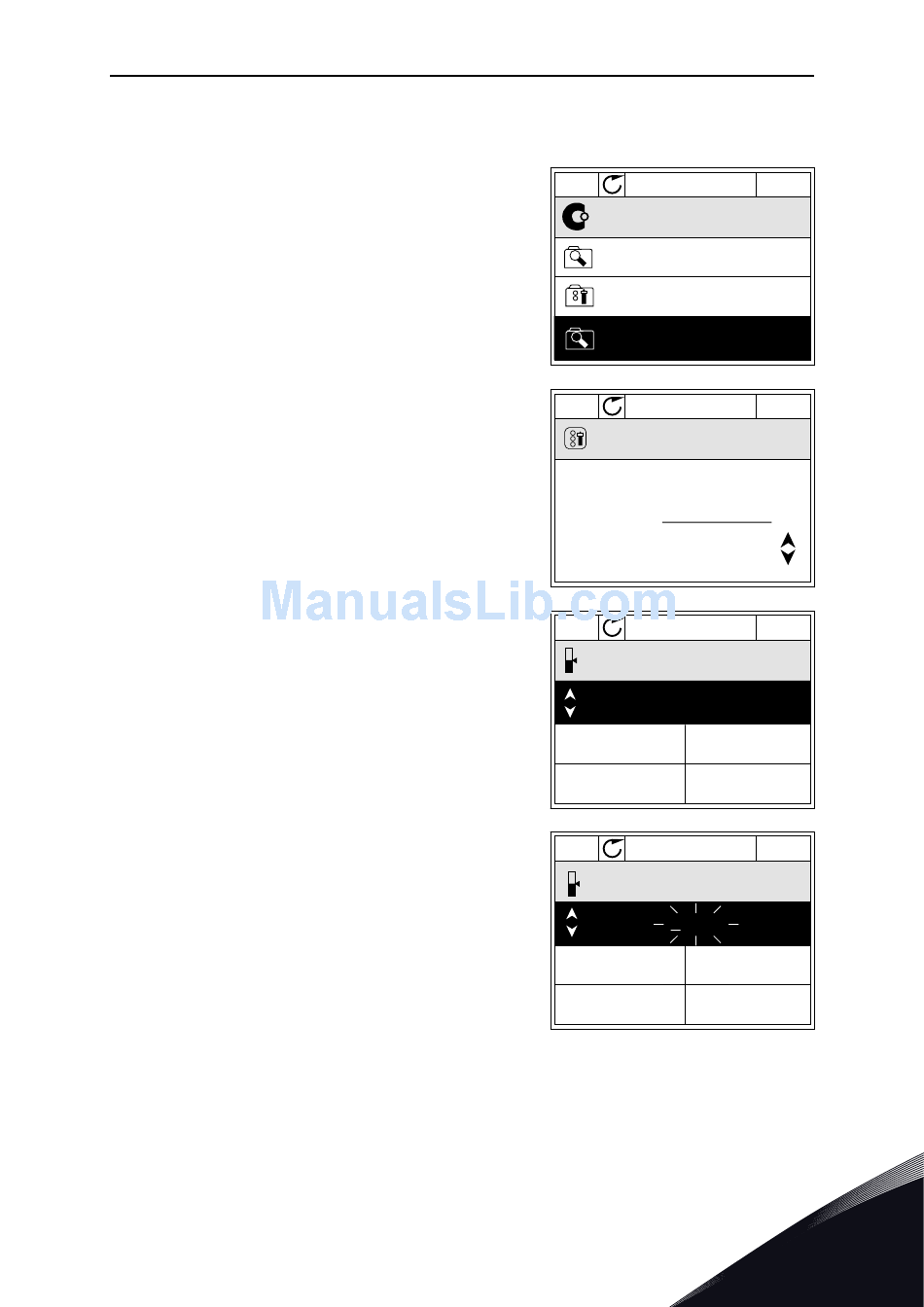

GOING INTO THE CONTROL PAGE
It is easy to monitor the most important values in the Control page.
1 Anywhere in the menu structure, push the FUNCT
button.
2 To make a selection of the Control page, push the
arrow buttons Up and Down. Go in with the OK
button. The control page opens.
3 If you use the Local control place and the keypad
reference, you can set P3.3.1.8 Keypad Reference
with the OK button.
4 To change the digits in the value, push the arrow
buttons Up and Down. Accept the change with the
OK button.
See more information about Keypad Reference in 5.3 Group 3.3: References. If you use other
control places or reference values, the display shows the frequency reference, which you
