QUICK STARTUP GUIDE
** = For the DIP switch configurations in Vacon VACON
manual.

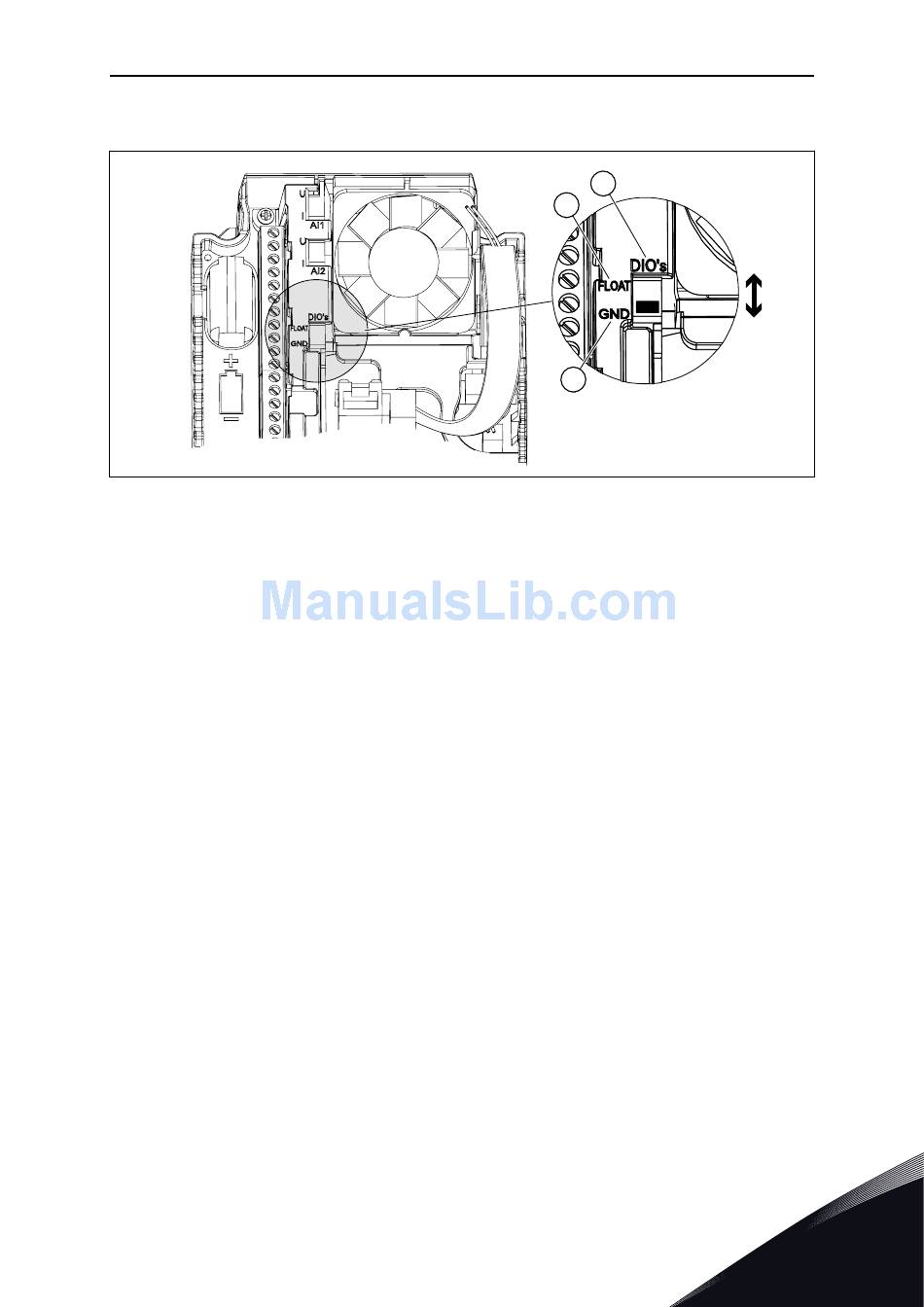

Fig. 17: The DIP switch
A. Digital inputs
B. Float
Each drive has a pressure sensor. When the redundancy level is high, the drive and the
pressure sensors are redundant.
If there is a drive failure, the next drive starts to operate as master.
•
If there is a sensor failure, the next drive (that has a separate sensor) starts to operate
•
as master.
An individual switch that has an auto, off and man setting controls each drive.
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
X, see the VACON
®
A
B
C
C. Connected to GND (default)
VACON · 47
