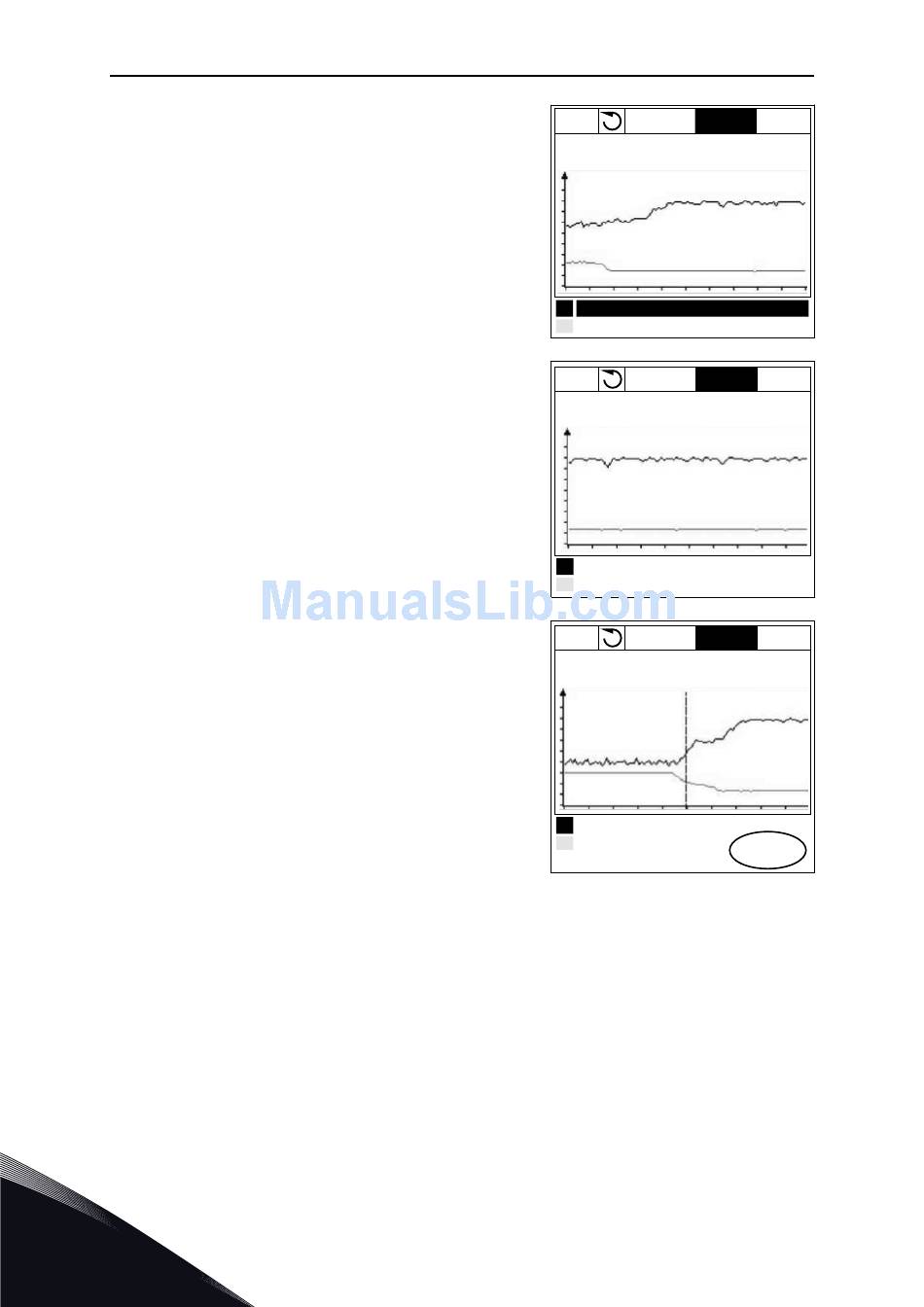

1 In Trend curve view, make a curve active with the
arrow button Up. The frame of the display turns
bold.
2 Push OK at the target point of the curve.
3 A vertical line comes into view on the display. The
values at the bottom of the display agree to the
location of the line.
4
