PARAMETER DESCRIPTIONS
A.1 A.2
1 2 3
Slot A
G
21 22 23 24 25 26 33 34
Slot B

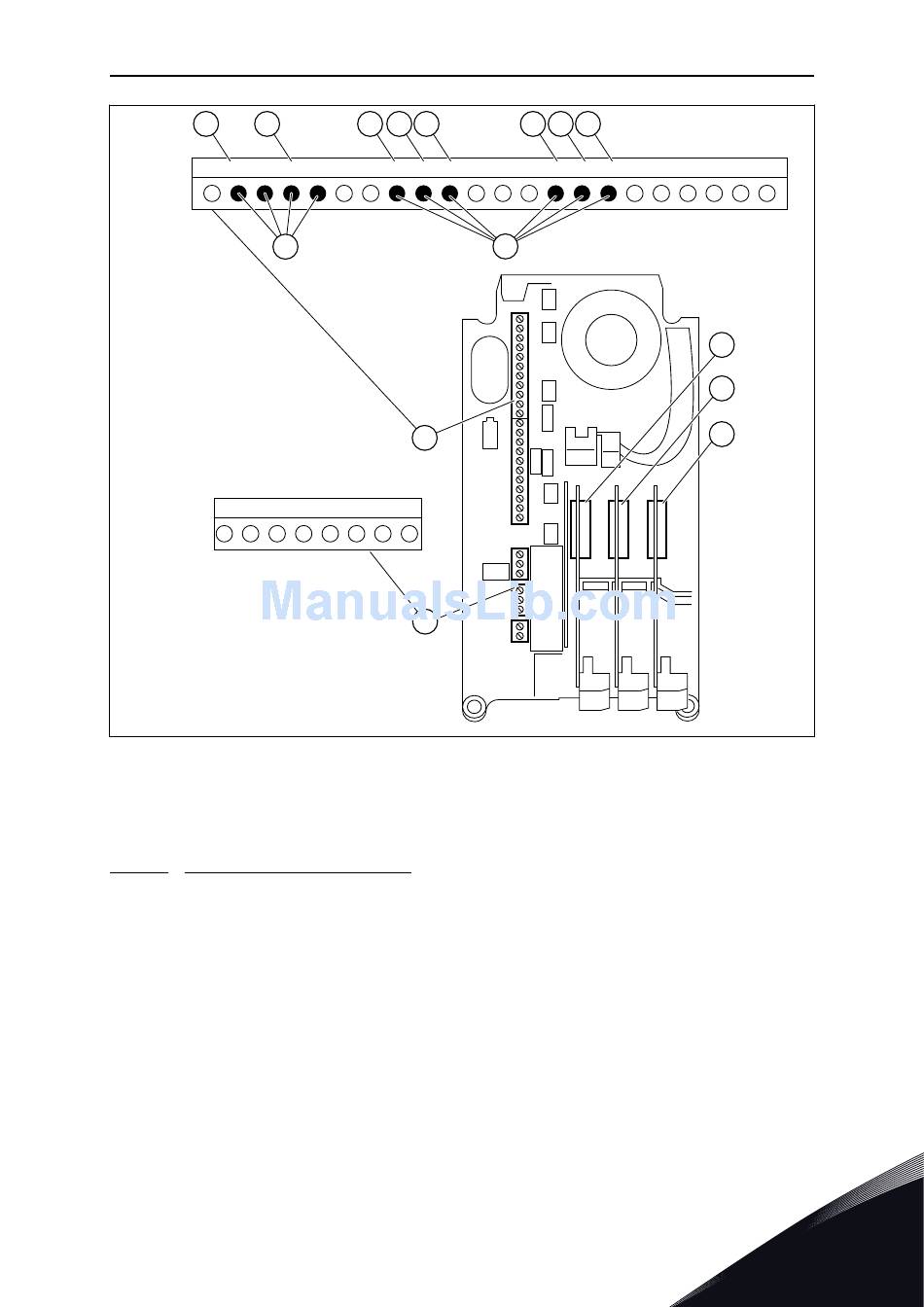

Fig. 52: The option board slots and programmable inputs
A. Standard board slot A and its terminals
B. Standard board slot B and its terminals
C. Option board slot C
D. Option board slot D
10.6.1.1 Programming of digital inputs
You can find the applicable functions for digital inputs as parameters in parameter group
M3.5.1. To give a digital input to a function, set a value to the correct parameter. The list of
applicable functions shows in Table 43 Digital input settings.
Example
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
A.1
A.2 A.3
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 30 A B
A
B
A.4 A.5 A.6
F
E. Option board slot E
F. Programmable digital inputs (DI)
G. Programmable analogue inputs (AI)
