Vacon 100 flow Applications Manual page 316

VACON · 316
Supervision
Alarm Level
Supervision
Fault Level
PID Setpoint
Input Pressure Alarm
(Digital output signal)
Motor Running

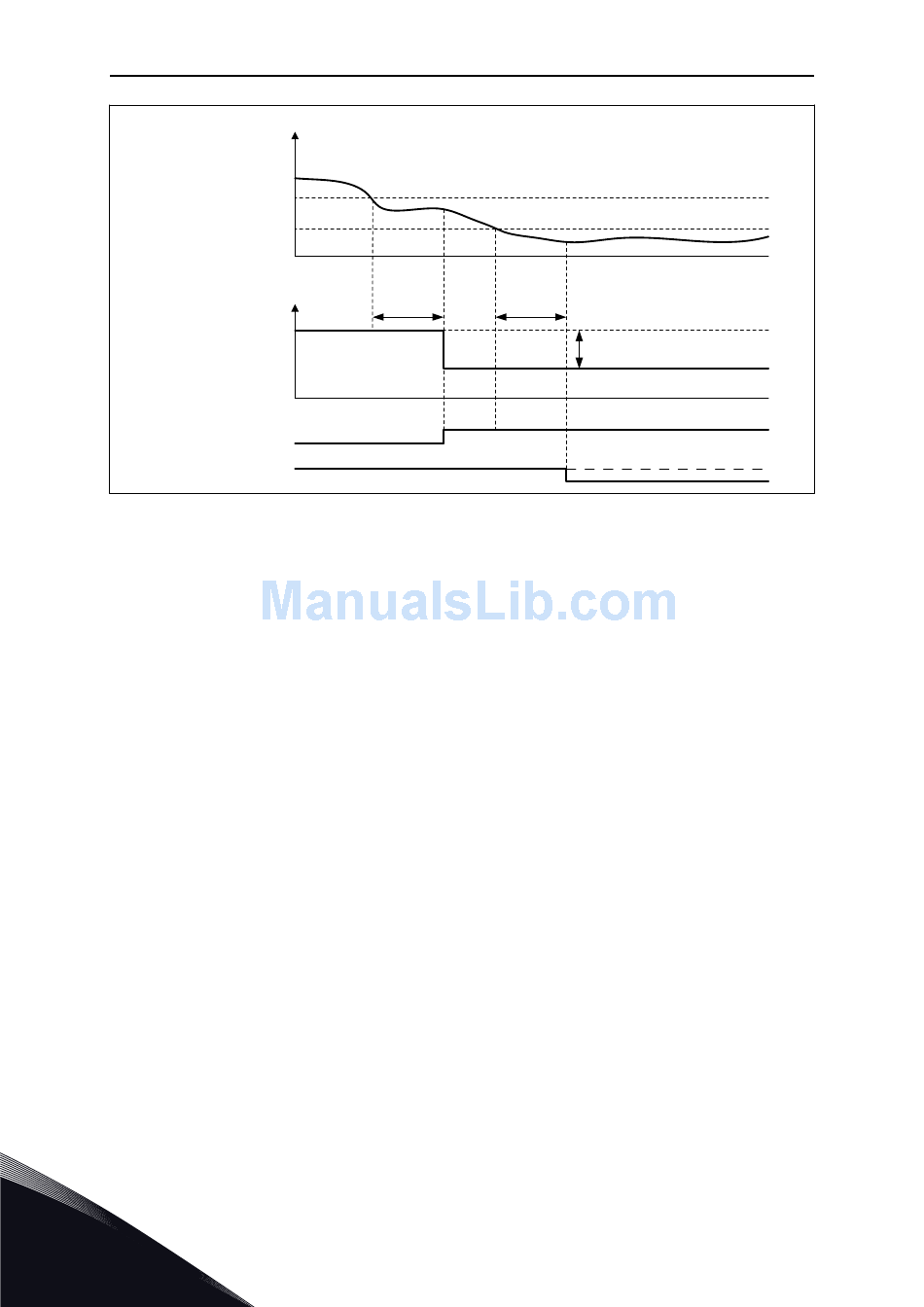

Fig. 88: The Input pressure supervision function
P3.13.9.1 ENABLE SUPERVISION (ID 1685)
Use this parameter to enable the Input Pressure Supervision function.
Use this function to make sure that there is enough fluid in the inlet of the pump.
P3.13.9.2 SUPERVISION SIGNAL (ID 1686)
Use this parameter to select the source of the input pressure signal.
P3.13.9.3 SUPERVISION UNIT SELECTION (ID 1687)
Use this parameter to select the unit for the input pressure signal.
You can scale the supervision signal (P3.13.9.2) to process units on the panel.
P3.13.9.4 SUPERVISION UNIT DECIMALS (ID 1688)
Use this parameter to set the number of decimals for the input pressure signal unit.
You can scale the supervision signal (P3.13.9.2) to process units on the panel.
P3.13.9.5 SUPERVISION UNIT MINIMUM VALUE (ID 1689)
Use this parameter to set the minimum value of the input pressure signal.
Enter the value in the selected process unit. For example, an analogue signal of 4...20 mA
corresponds to the pressure of 0...10 bar.
P3.13.9.6 SUPERVISION UNIT MAXIMUM VALUE (ID 1690)
Use this parameter to set the maximum value of the input pressure signal.
Enter the value in the selected process unit. For example, an analogue signal of 4...20 mA
corresponds to the pressure of 0...10 bar.
10
Input Pressure
Input Pressure Monitor
PID Setpoint
Supervision
Fault Delay
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
PARAMETER DESCRIPTIONS
Supervision
Fault Delay
PID Setpoint
Reduction
Yes
No
