3.2

USING THE GRAPHICAL DISPLAY

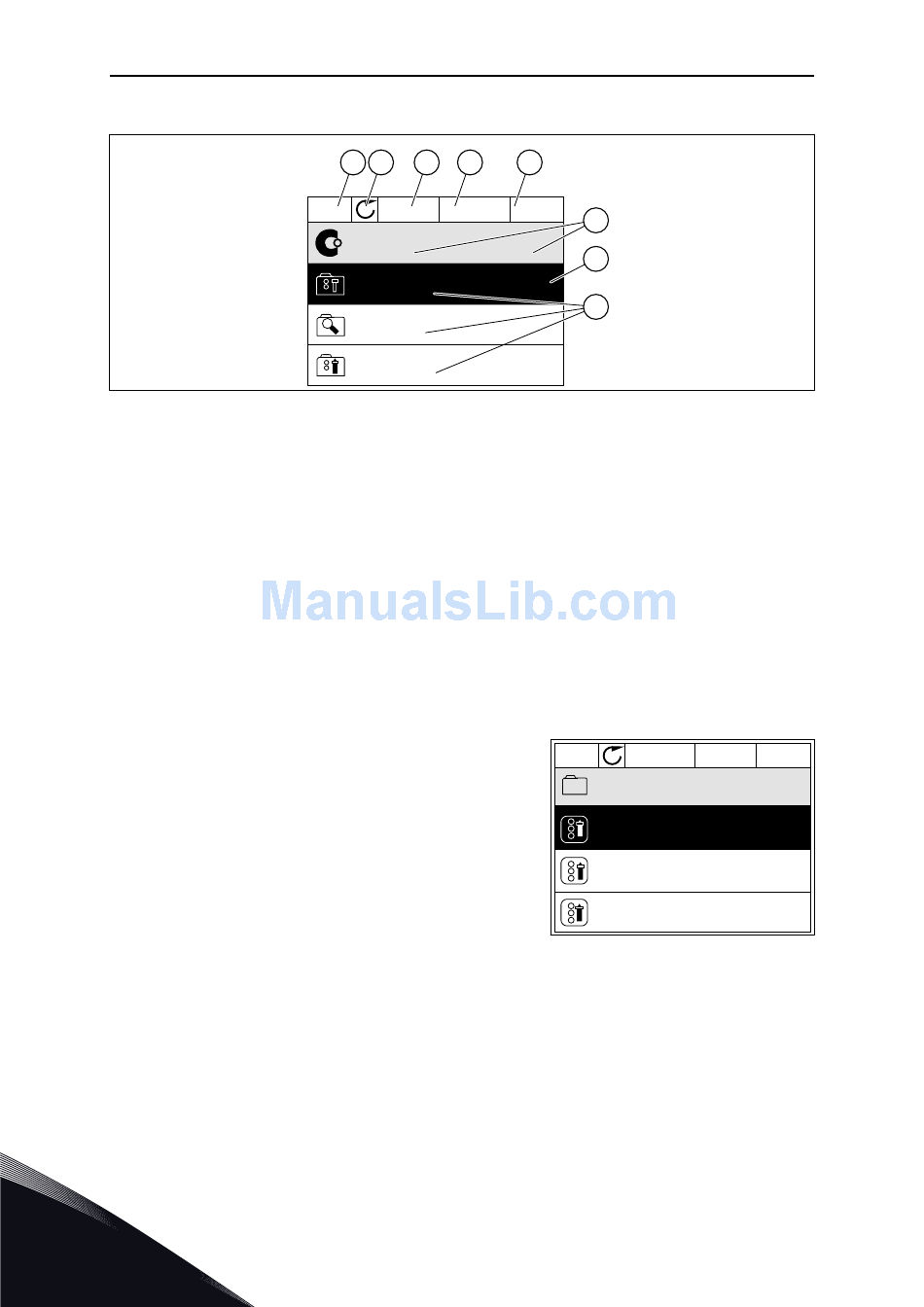

Fig. 33: The main menu of the graphical display
A. The first status field: STOP/RUN
B. The rotation direction
C. The second status field: READY/NOT
READY/FAULT
D. The alarm field: ALARM/-
E. The control place: PC/IO/KEYPAD/
FIELDBUS
3.2.1

EDITING THE VALUES

On the graphical display, there are 2 different procedures to edit the value of an item.
Usually, you can set only 1 value for a parameter. Select from a list of text values or from a
range of numerical values.
CHANGING THE TEXT VALUE OF A PARAMETER
1 Find the parameter with the arrow buttons.
3
A B C D
READY
STOP
Main Menu
ID:
Quick Setup
( 17 )
Monitor
( 5 )
Parameters
( 12 )
F. The location field: the parameter ID
G. An activated group or item: push OK to
H. The number of items in the group in
