VACON · 32 QUICK STARTUP GUIDE
K2 K3

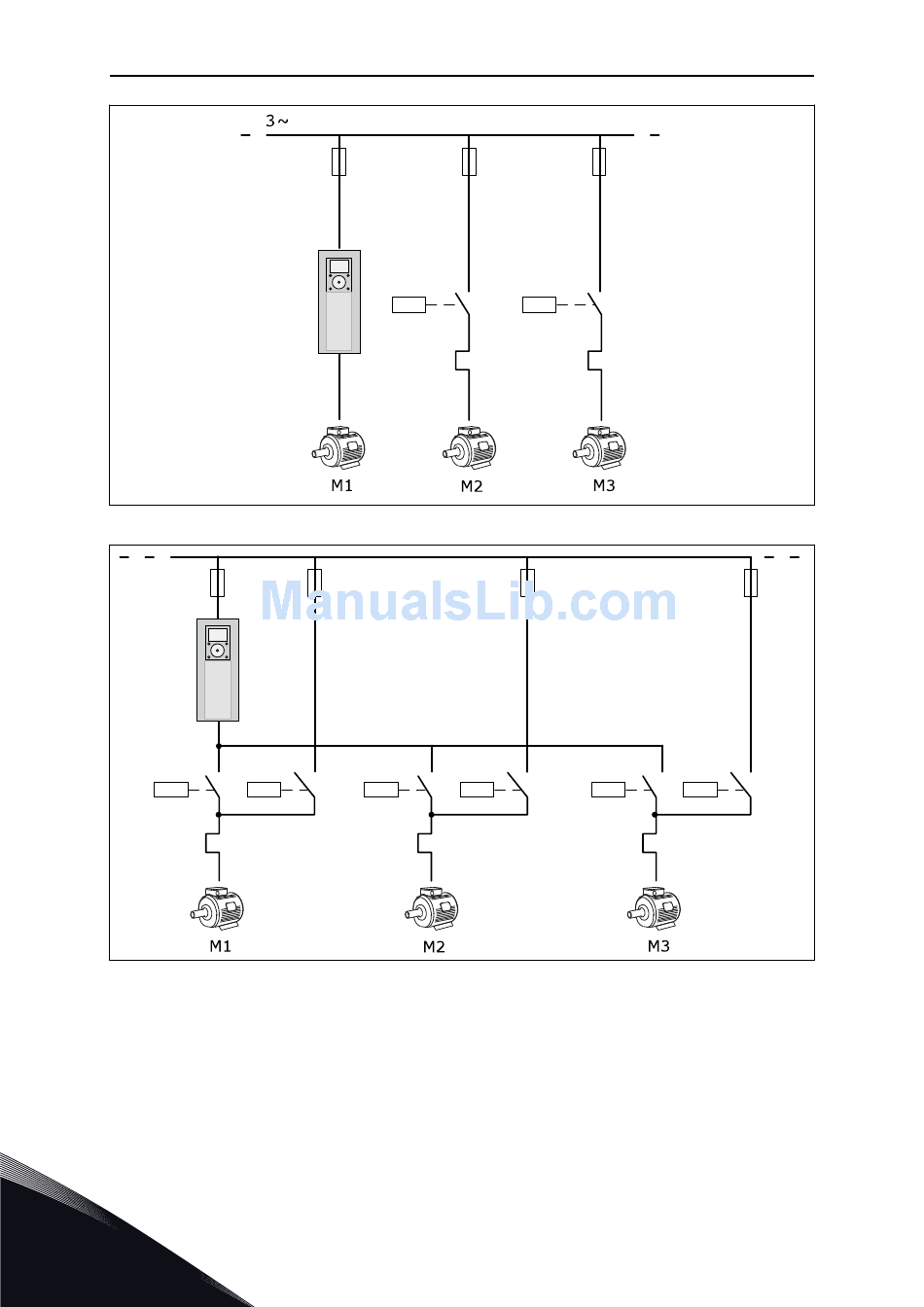

Fig. 9: Control diagram, where only the auxiliary motors are configured to autochange
K1 K1.1 K2 K2.1 K2 K3.1
Fig. 10: Control diagram, where all the motors are configured to autochange
You can use 2 control places. Make the selection of the control place A or B with DI6. When
control place Make the selection of the control place A or B with DI6. When control place A is
active, DI1 gives the start and stop commands, and the PID controller gives the frequency
reference. When control place B is active, DI4 gives the start and stop commands, and AI1
gives the frequency reference.
