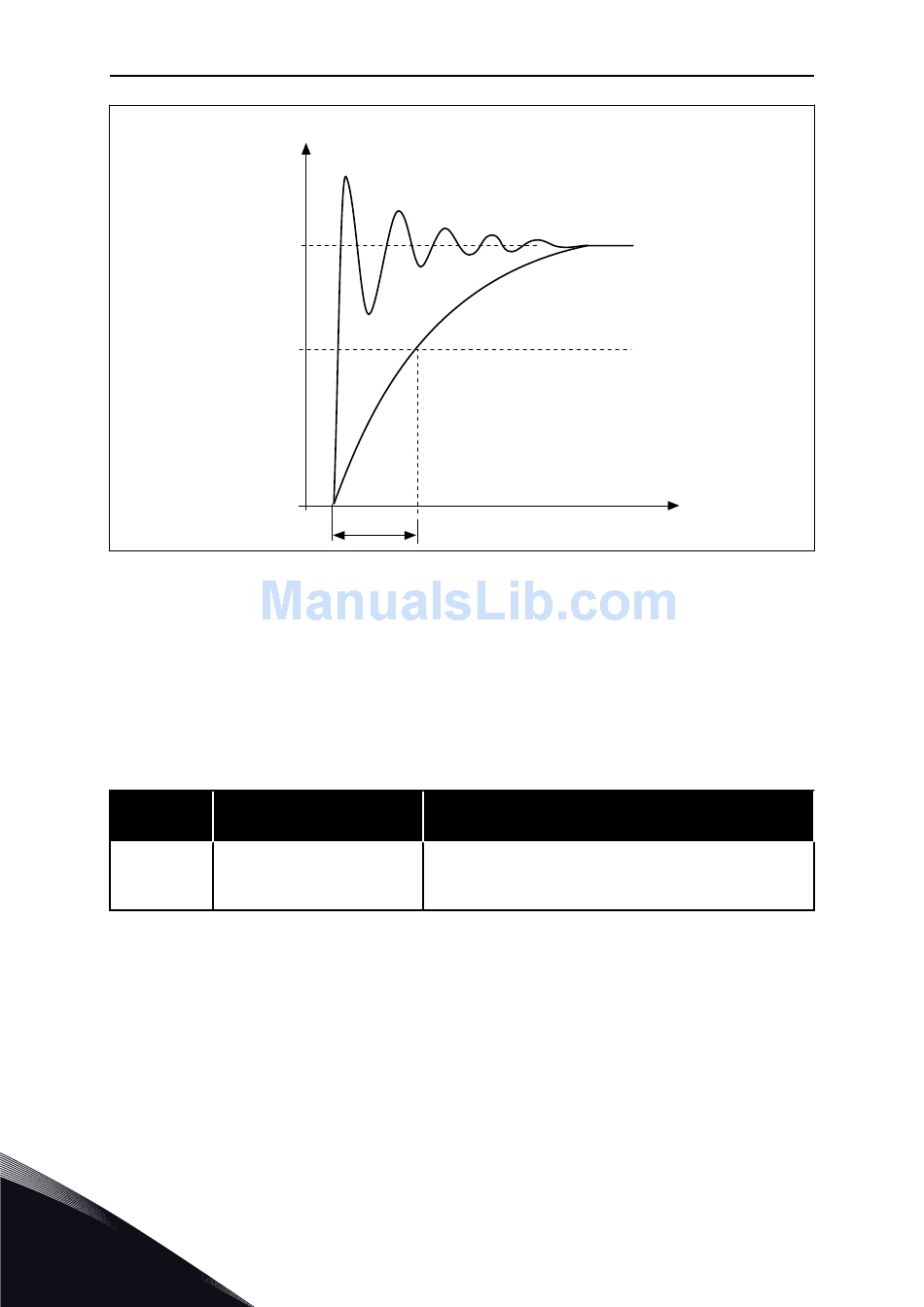

Fig. 57: The AI1 signal filtering
P3.5.2.1.3 AI1 SIGNAL RANGE (ID 379)
Use this parameter to change the range of the analogue signal.
The value of this parameter is bypassed if the custom scaling parameters are used.
Use the dip switches on the control board to set the type of the analogue input signal (current
or voltage). For more information, see the Installation manual.
It is also possible to use the analogue input signal as frequency reference. The selection of
the value 0 or 1 change the scaling of the analogue input signal.
Selection
number
0
10
Analogue input
signal
[%]
100%
63%
ID378
Selection name
0...10V / 0...20mA
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
Unfiltered signal
Filtered signal
Description
The range of the analogue input signal is 0...10V or 0...20mA
(the dip switch settings on the control board tell which one).
The input signal is 0...100%.
PARAMETER DESCRIPTIONS
t [s]
