Vacon 100 flow Applications Manual page 330

VACON · 330
Actual value
(0)4..20mA

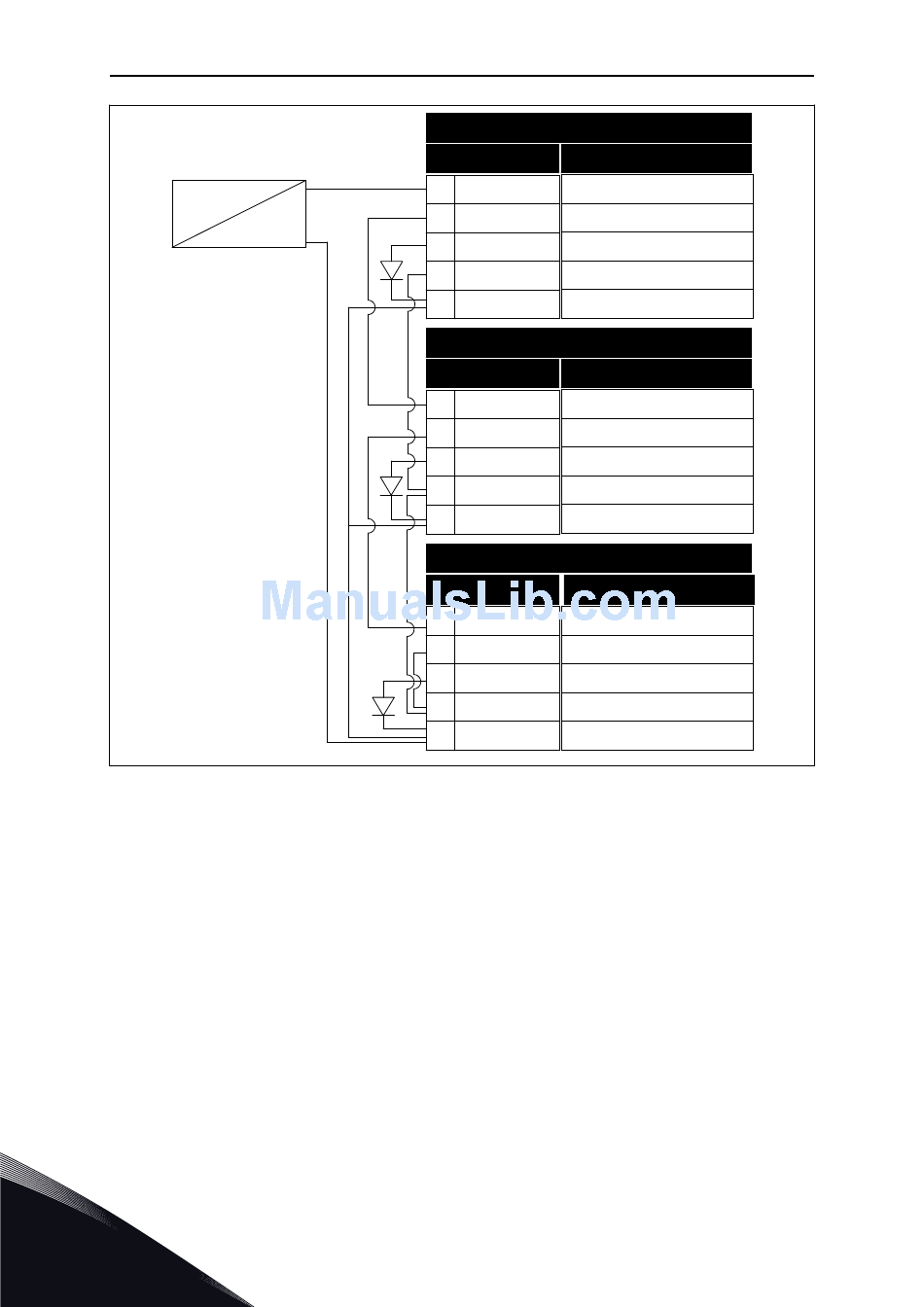

Fig. 96: Wiring of the same sensor for all drives (supplied from the I/O board of the drive)
10
Drive 1: Standard I/O Board
Terminal
4 A12+
-
5 A12-
+
12 24V
13 GND
17 CM
Drive 2: Standard I/O Board
Terminal
4 A12+
5 A12-
12 24V
13 GND
17 CM
Drive 3: Standard I/O Board
Terminal
4 A12+
5 A12-
12 24V
13 GND
17 CM
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
PARAMETER DESCRIPTIONS
Signal
Analogue input 2+
Analogue input 2-
24V auxiliary voltage
out
I/O ground
Common for DI1-DI6
Signal
Analogue input 2+
Analogue input 2-
24V auxiliary voltage
out
I/O ground
Common for DI1-DI6
Signal
Analogue input 2+
Analogue input 2-
24V auxiliary voltage
out
I/O ground
Common for DI1-DI6
