Using The Favourites Menu; Using The Text Display - Vacon 100 flow Applications Manual

USER INTERFACES
3 To open the help text, push the OK button.
NOTE!
The help texts are always in English.
3.2.7

USING THE FAVOURITES MENU

If you use the same items frequently, you can add them into Favourites. You can collect a set
of parameters or monitoring signals from all the keypad menus.
See more about how to use the Favourites menu in Chapter 8.2 Favourites.
3.3

USING THE TEXT DISPLAY

You can also have the control panel with the text display for your user interface. The text
display and the graphical display have almost the same functions. Some functions are only
available in the graphical display.
The display shows the status of the motor and the AC drive. It also shows faults in the
operation of the motor and the drive. On the display, you see your current location in the
menu. You also see the name of the group or item in your current location. If the text is too
long for the display, the text scrolls to show the full text string.

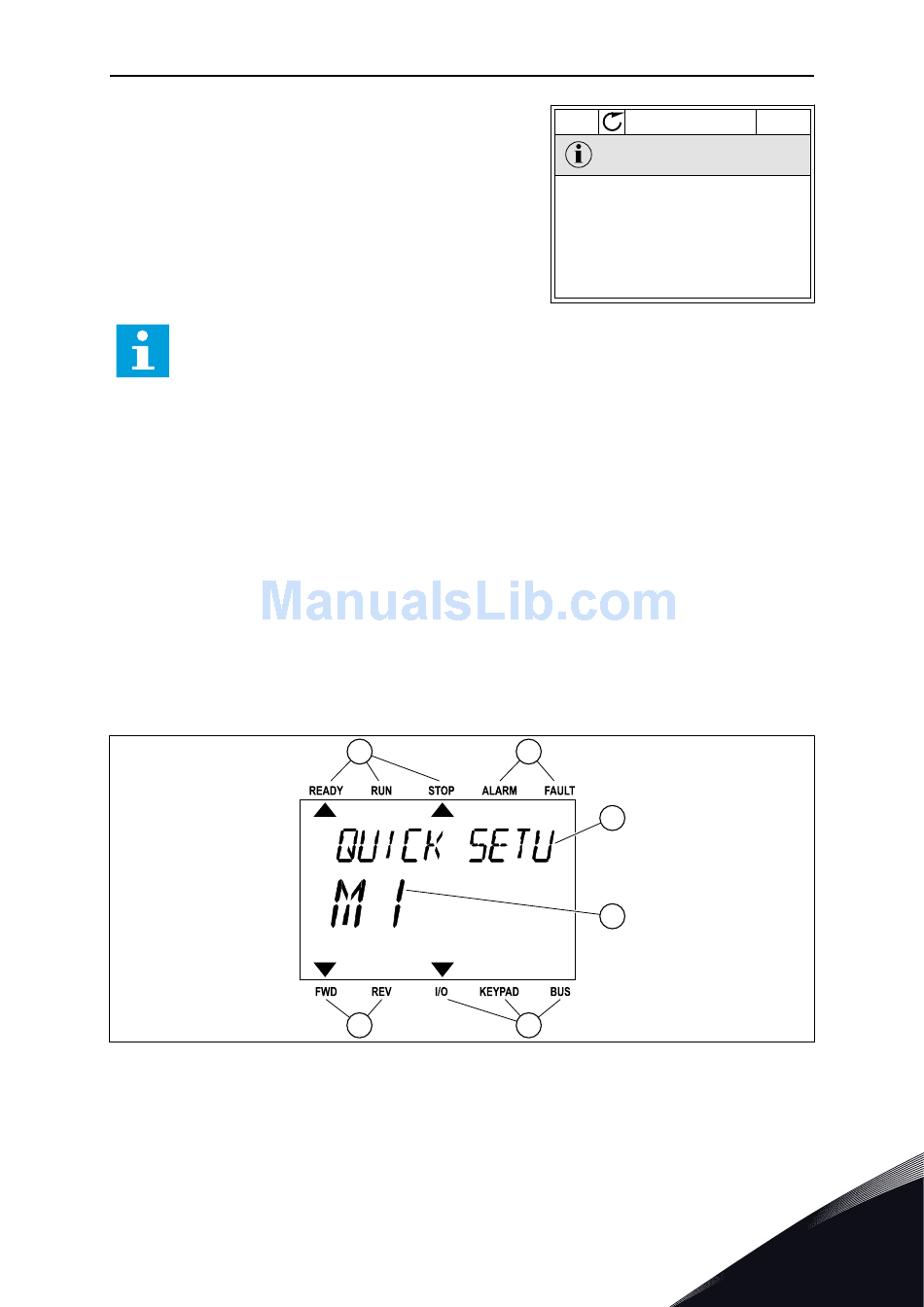

Fig. 34: The main menu of the text display
A. The indicators of status
B. The indicators of alarm and fault
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
A B
F E
C. The name of the group or item of the
current location
READY
STOP
Ctrl signal 1 A
ID:403 M3.5.1.1
Start Signal 1 for control Place
I/O A. Start Signal 1
functionality chosen with I/O A
Logic in Start/Stop Setup Menu.
C
D
VACON · 103
I/O
3
