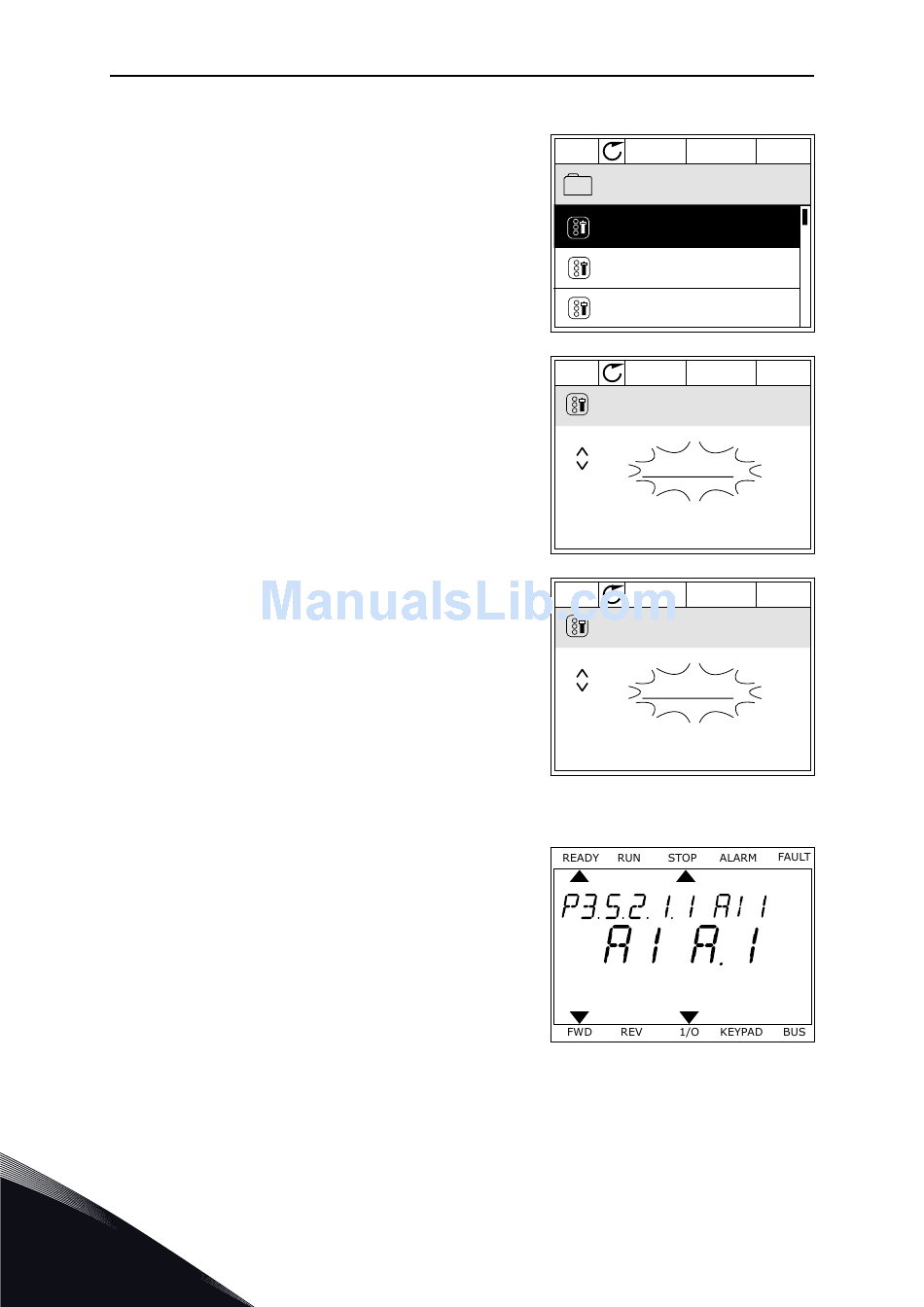

PROGRAMMING OF ANALOGUE INPUTS IN THE GRAPHICAL DISPLAY
1 To make a selection of the parameter, push the
arrow button Right.
2 In the Edit mode, the value AnIN SlotA is underlined
and blinks.
3 To change the value to AnIN SlotC, push the arrow
button Up. Accept the change with the OK button.
PROGRAMMING OF ANALOGUE INPUTS IN THE TEXT DISPLAY
1 To make a selection of the parameter, push the OK
button.
10
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
PARAMETER DESCRIPTIONS
STOP READY
Analogue Input 1
ID:377
AI1 Signal Sel
AnIN SlotA.1
AI1 Filter Time
AI1 Signal Range
0-10V/0-20mA
STOP READY
AI1 Signal Sel
ID:377
AnIN SlotA.1
Min:
Max:
STOP READY
AI1 Signal Sel
ID:377
AnIN SlotC.1
Min:
Max:
I/O
P3.5.2.1.1
0.10s
I/O
P3.5.2.1.1
I/O
P3.5.2.1.1
