VACON · 114
4 To make a selection of a new item in the list, push
OK.
4.1.2

TREND CURVE

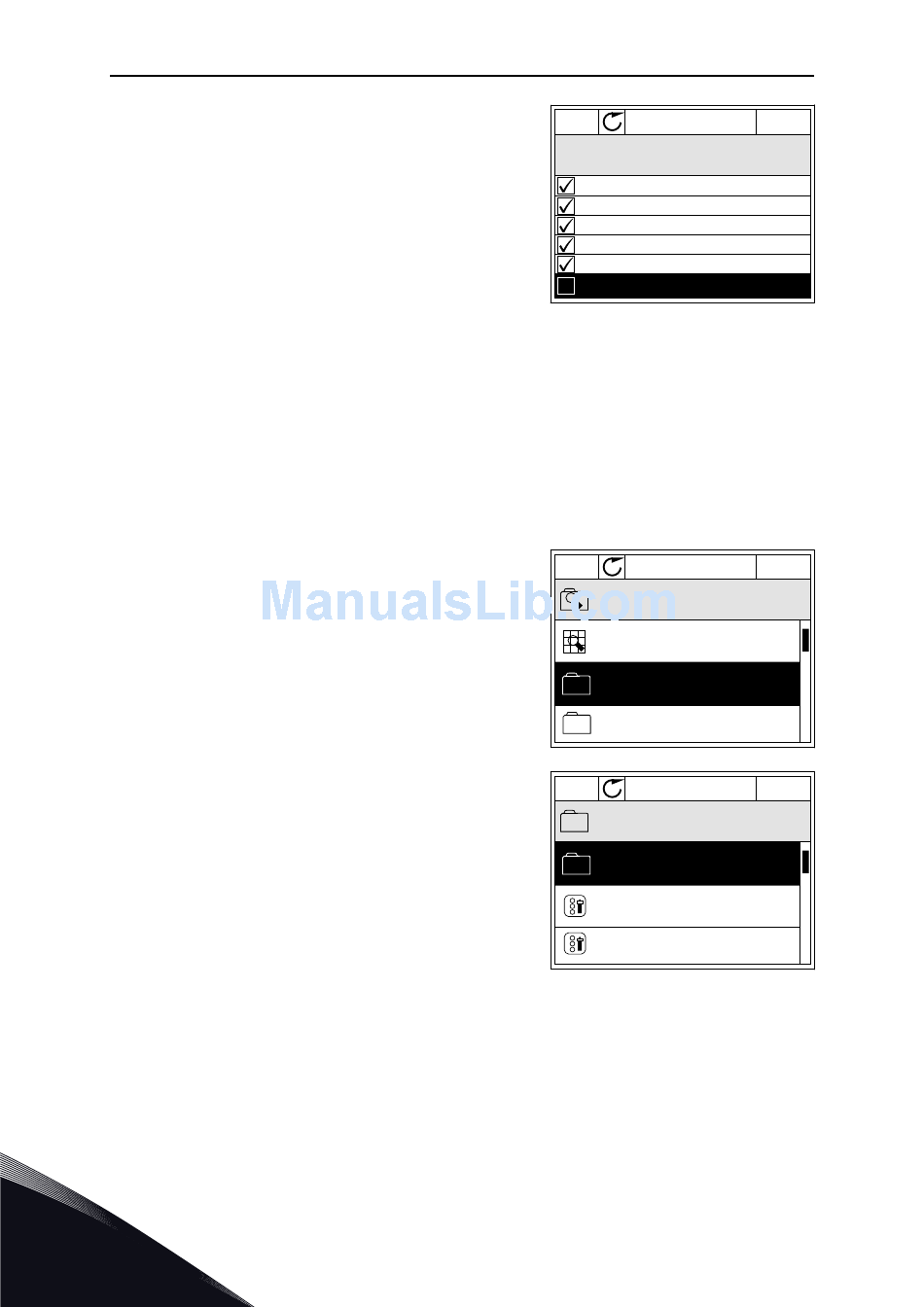

The Trend curve is a graphical presentation of 2 monitor values.
When you make a selection of a value, the drive starts to record the values. In the Trend
curve submenu, you can examine the trend curve, make the signal selections. You can also
give the minimum and maximum settings and the sampling interval, and use Autoscaling.
CHANGING THE VALUES
Change the monitoring values with this procedure.
1 In the Monitor menu, find the Trend curve submenu
and push OK.
2 Go into the submenu View trend curve with the OK
button.
4
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
MONITORING MENU
READY
STOP
FreqReference
ID:1 M2.1.1.1
Output frequency
FreqReference
Motor Speed
Motor Current
Motor Torque
Motor Power
READY
STOP
Monitor
ID: M2.2
Multimonitor
Trend Curve
(7)
Basic
(13)
READY
STOP
Trend Curve
ID: M2.2.1
View Trend Curve
(2)
Sampling interval
100 ms
Channel 1 min
-1000
I/O
0.00 Hz
10.00 Hz
0.00 rpm
0.00 A
0.00 %
0.00 %
I/O
I/O
