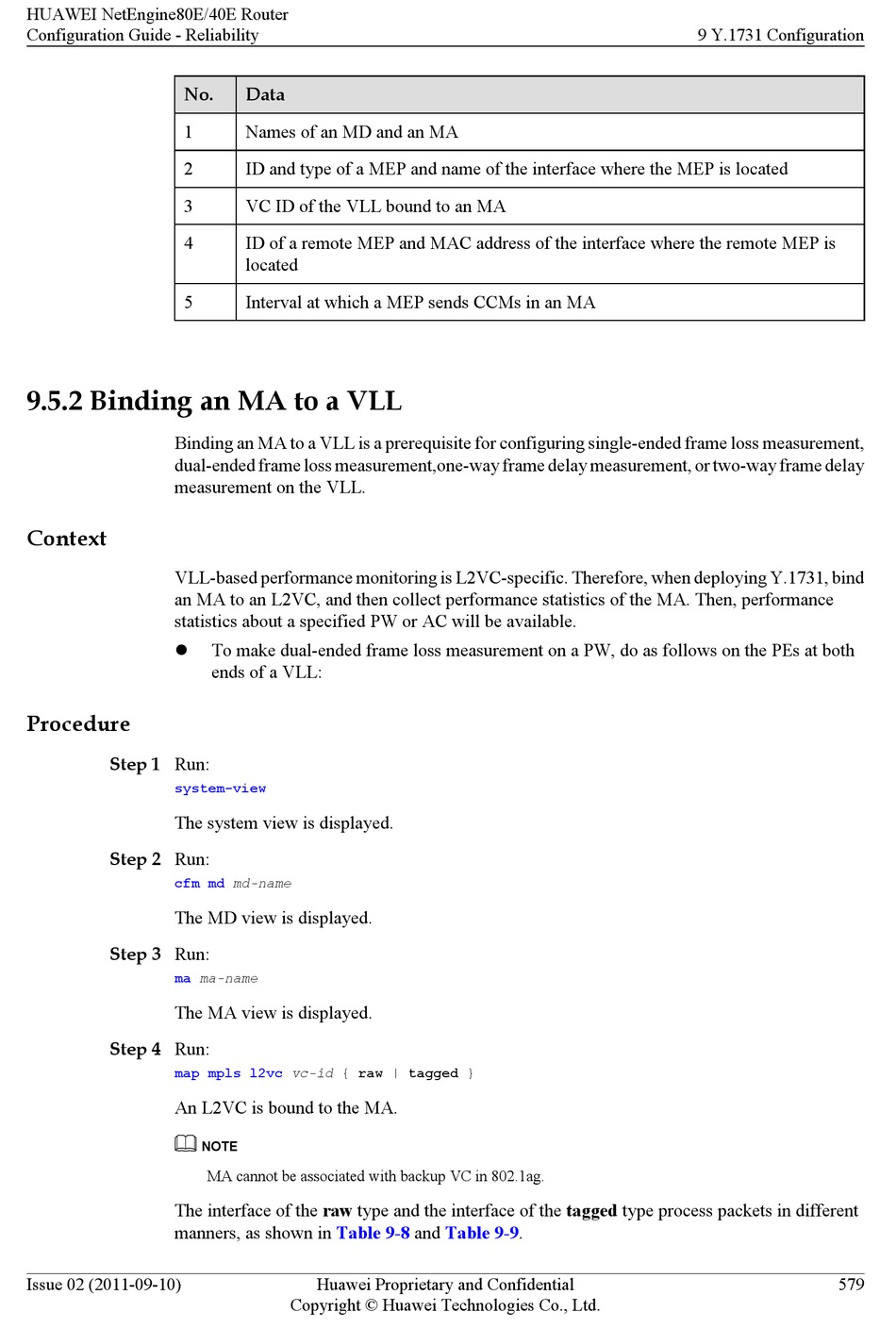

9.5.2 Binding an MA to a VLL
Binding an MA to a VLL is a prerequisite for configuring single-ended frame loss measurement,
dual-ended frame loss measurement,one-way frame delay measurement, or two-way frame delay
measurement on the VLL.
Context
VLL-based performance monitoring is L2VC-specific. Therefore, when deploying Y.1731, bind
an MA to an L2VC, and then collect performance statistics of the MA. Then, performance
statistics about a specified PW or AC will be available.
l
Procedure
Step 1 Run:
system-view
The system view is displayed.
Step 2 Run:
cfm md
The MD view is displayed.
Step 3 Run:
ma
The MA view is displayed.
Step 4 Run:
map mpls l2vc
An L2VC is bound to the MA.
The interface of the raw type and the interface of the tagged type process packets in different
manners, as shown in
Issue 02 (2011-09-10)
Data
Names of an MD and an MA
ID and type of a MEP and name of the interface where the MEP is located
VC ID of the VLL bound to an MA
ID of a remote MEP and MAC address of the interface where the remote MEP is
located
Interval at which a MEP sends CCMs in an MA
To make dual-ended frame loss measurement on a PW, do as follows on the PEs at both
ends of a VLL:
md-name
ma-name
vc-id { raw | tagged }
NOTE
MA cannot be associated with backup VC in 802.1ag.
Table 9-8
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
and
Table
9-9.
9 Y.1731 Configuration
579
