4.3 Mechanical installation

The material for fixing the inverter and the installation mode vary with the different installation sites.
It is recommended to install the inverter vertically to the firm wall or metal bracket. Here we take
wall installation as an example to introduce the installation matters of the inverter.
As shown in the Fig 4.4, the overall installation of the inverter should be vertical to the horizontal
surface.

4.3.1 Installation of single-phase inverter

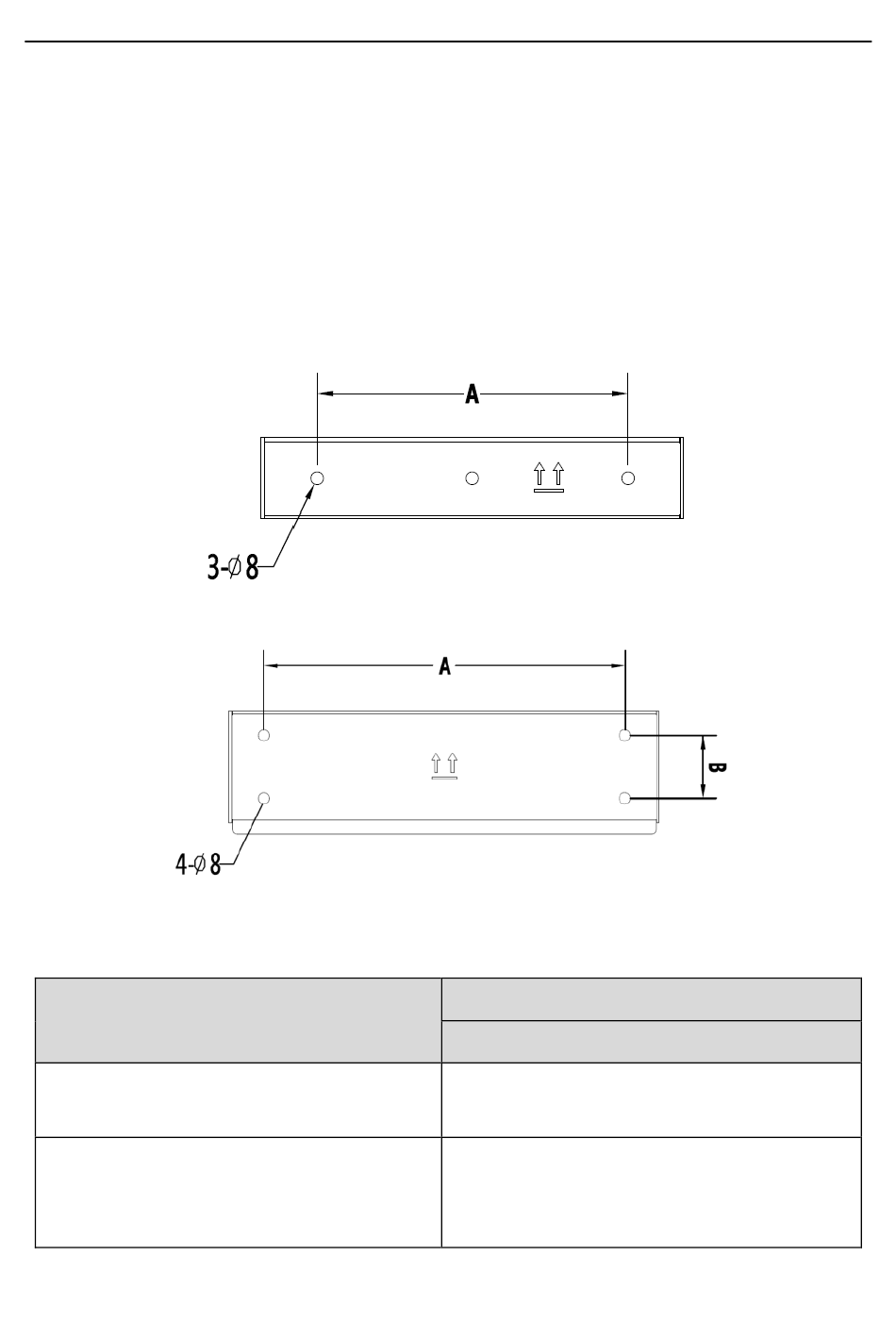

Figure 4.4 Installation bracket of 0.75~3KW inverter
Figure 4.5 Installation bracket of 4~6KW inverter
Table 4-6 Size of installation bracket
Installation hole
Model
A(mm)*B(mm)
MG750TL / MG1KTL / MG1K5TL /
195
MG2KTL / MG3KTL
MG4KTL / MG4K6TL/ MG5KTL/
MG3KTL-2M / MG4KTL-2M / MG4K6TL-2M 260*45
MG5KTL-2M / MG6KTL-2M
