PANEL DESCRIPTION

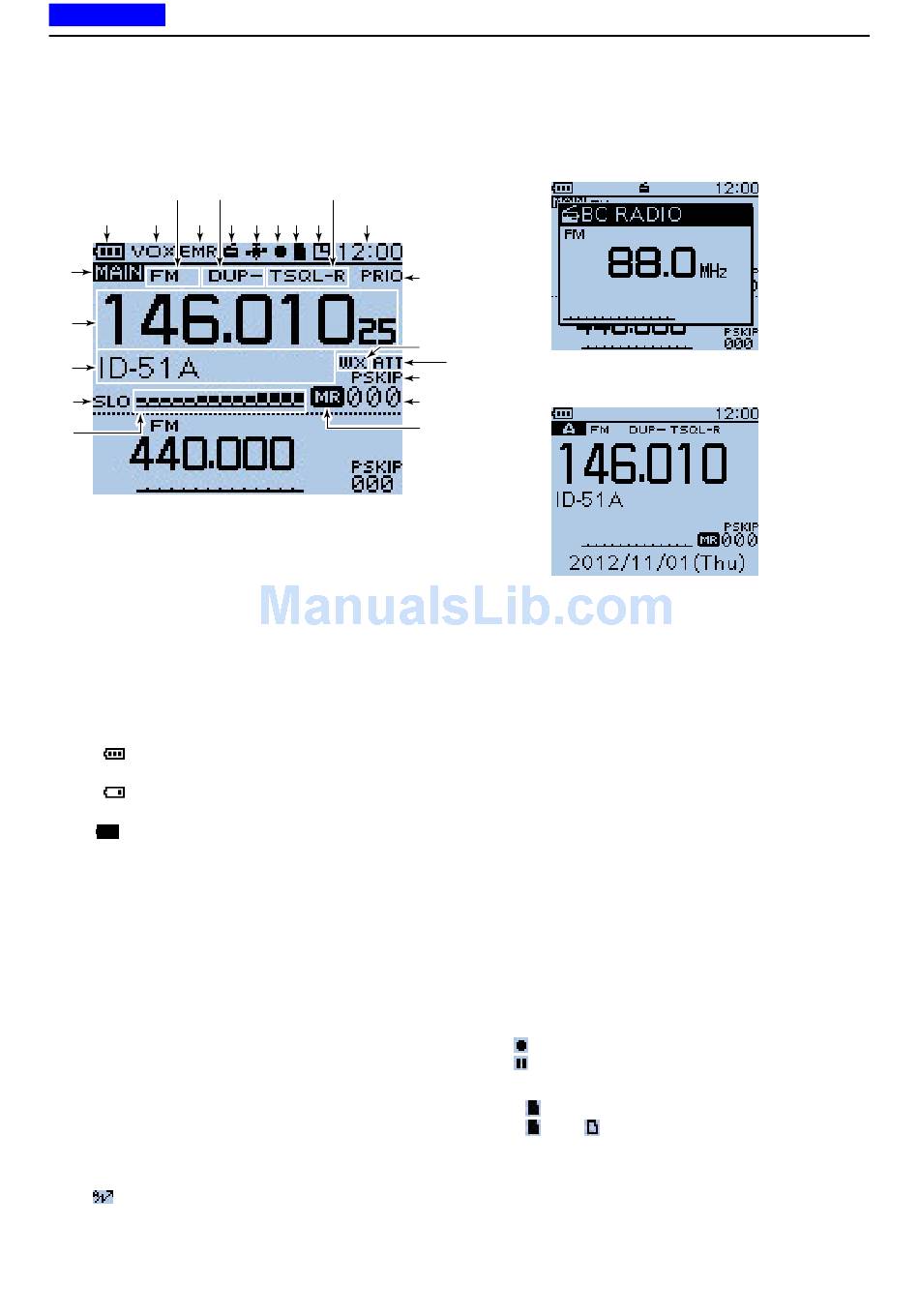

■ Function display

e t
q w r y u io !0
@3
@2
@1
@0
!9
Dual band display
q BATTERY ICON
Shows the capacity of the attached battery pack
➥
in four levels. (p. 4-2)
• " " (battery icon) appears when the battery
pack is attached.
• " " appears when the battery pack must be
charged.
点滅
" " appears when the optional battery case is
➥
attached. (p. 4-4)
w VOX ICON (p. 18-6)
Appears when the optional headset is connected
with the OPC-2006LS
VOX function is ON.
e OPERATING MODE ICONS (p. 5-7)
Shows the selected operating mode.
• DV, AM, FM and FM-N are selectable.
• "DV-G" or "DV-A" appears when GPS or GPS-A transmis-
sion is selected in the DV mode. (p. 10-16)
r EMR/BK/Packet Loss/Auto Reply ICON
"EMR" appears when the Enhanced Monitor Re-
➥
quest (EMR) mode is selected. (p. 9-8)
"BK" appears when the Break-in (BK) mode is se-
➥
lected. (p. 9-7)
"L" appears when Packet Loss has occurred.
➥
(p. 9-14)
" " appears when the Automatic Reply function
➥
is selected. (p. 9-11)
!1
!2
, and the
plug adapter cable
!3
!4
!5
BC Radio setting pop-up
!6
window (Tuning mode)
!7
!8
Single band display
t DUPLEX ICON (p. 15-5)
"DUP+" appears when plus duplex is selected, and
"DUP–" appears when minus duplex is selected.
y BC RADIO ICON (p. 6-2)
Appears when the BC radio is ON.
u GPS ICON
Appears while GPS function is in use. (p. 10-2)
➥
Stays ON when the GPS receiver is activated and
valid position data is received.
Blinks when invalid position data is being re-
ceived.
• GPS icons can be turned OFF in the Menu screen.
(p. 16-33)
➥ S" blinks instead of the GPS icon, when the
"
GPS alarm beeps. (p. 10-14)
i RECORD ICON (p. 11-2)
Appears while recording.
• " " appears while the transceiver is recording.
• " " appears while the recording is paused.
o microSD ICON (Section 2)
" " appears when a microSD card is inserted.
➥
" " and " " alternately blinks while accessing the
➥
microSD card.
!0 A UTO POWER OFF ICON (p. 16-83)
Appears when the Auto power OFF function is ON.
3-5
