2

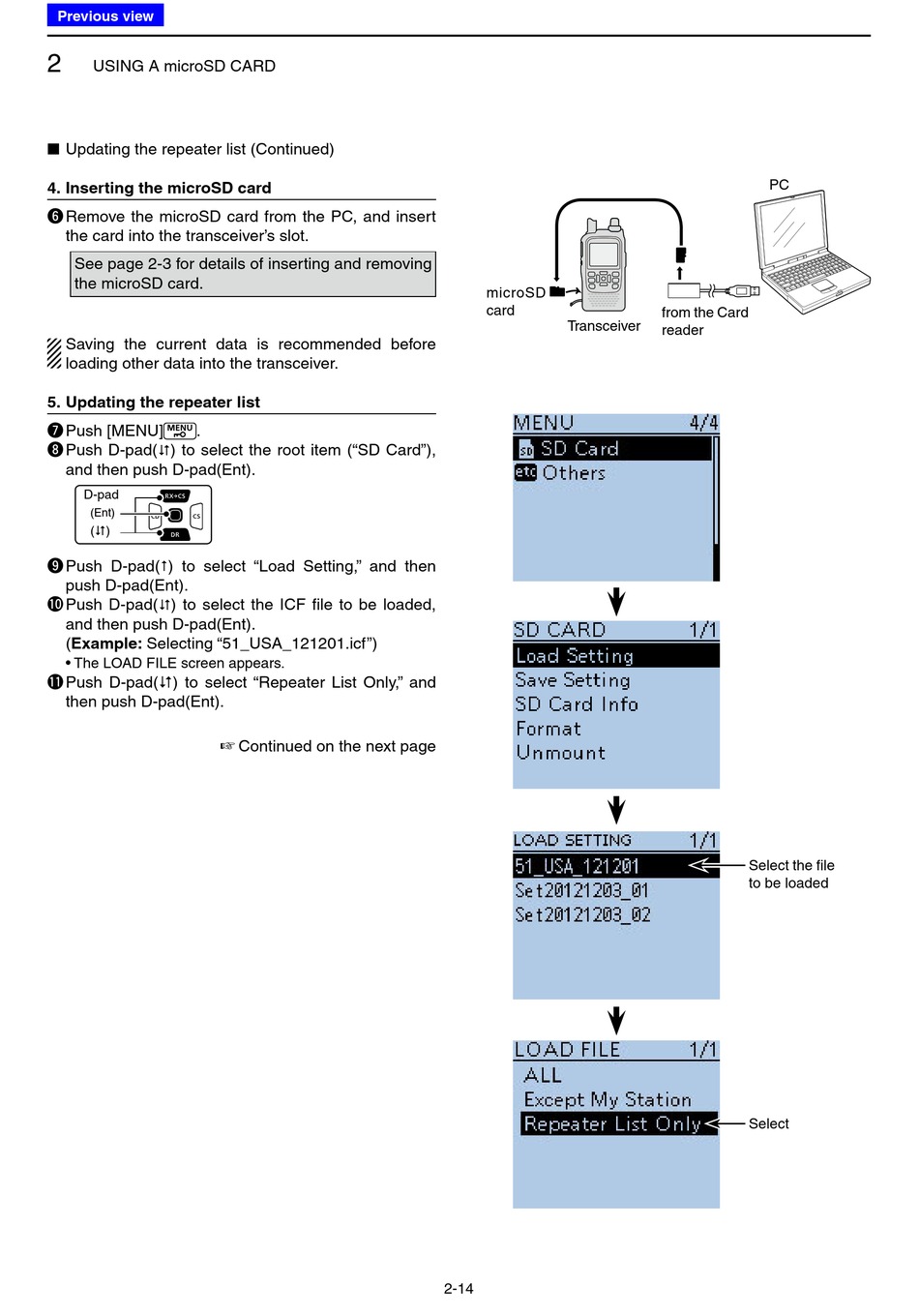

USING A microSD CARD
Updating the repeater list (Continued)
■
4. Inserting the microSD card
y Remove the microSD card from the PC, and insert
the card into the transceiver's slot.
See page 2-3 for details of inserting and removing
the microSD card.
Saving the current data is recommended before
loading other data into the transceiver.
5. Updating the repeater list
u Push [MENU] .
i Push D-pad( ) to select the root item ("SD Card"),

and then push D-pad(Ent).
D-pad
(Ent)
(�)
o Push D-pad( ) to select "Load Setting," and then

push D-pad(Ent).
!0 Push D-pad( ) to select the ICF file to be loaded,

and then push D-pad(Ent).
(Example: Selecting "51_USA_121201.icf")
• The LOAD FILE screen appears.
!1 Push D-pad() to select "Repeater List Only," and
then push D-pad(Ent).
☞
Continued on the next page
microSD
card
Transceiver
2-14
PC
from the Card
reader
Select the file
to be loaded
Select
