10

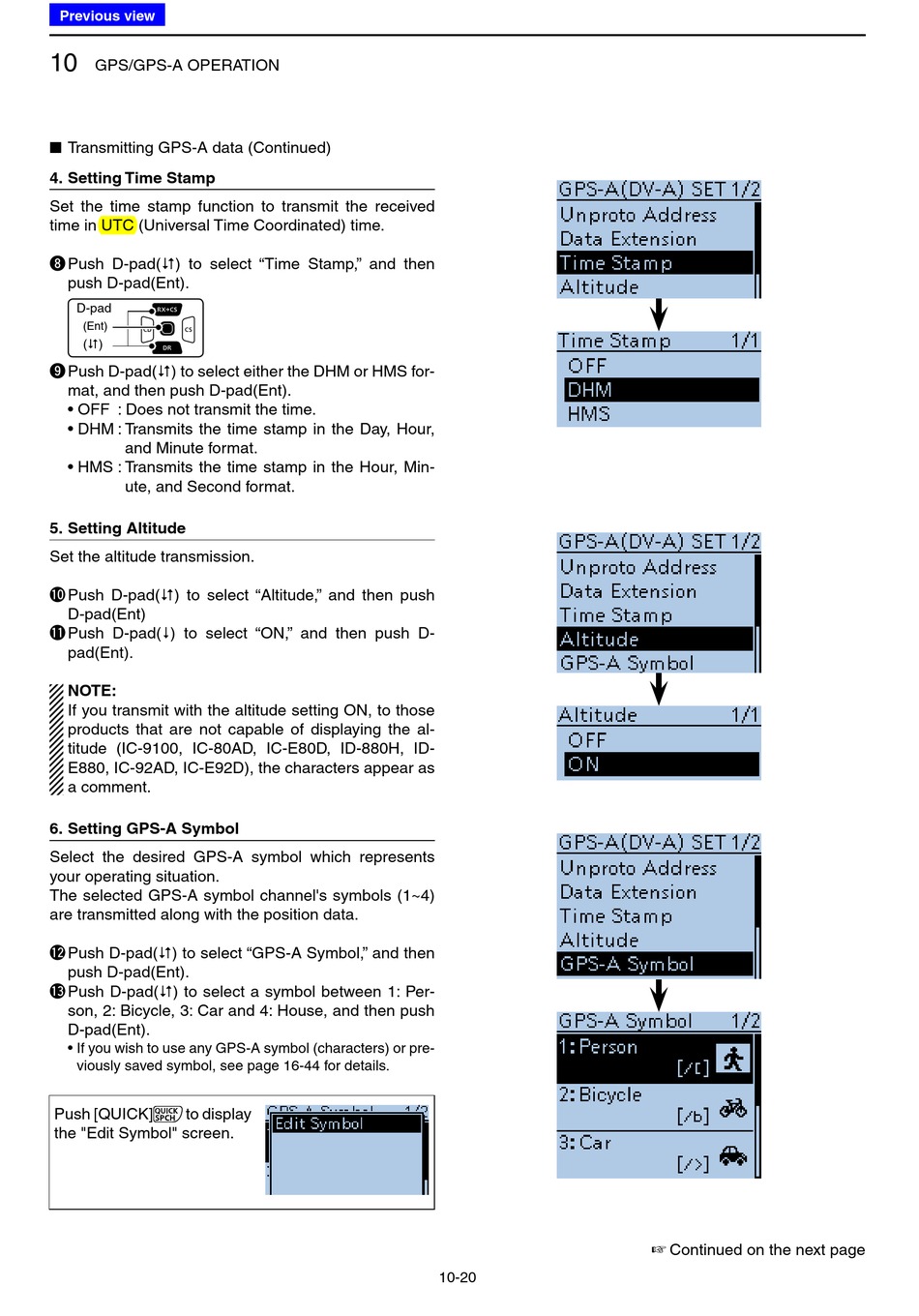

GPS/GPS-A OPERATION
Transmitting GPS-A data (Continued)
■
4. Setting Time Stamp
Set the time stamp function to transmit the received
time in UTC (Universal Time Coordinated) time.
i Push D-pad() to select "Time Stamp," and then
push D-pad(Ent).
D-pad
(Ent)
(�)
o Push D-pad() to select either the DHM or HMS for-
mat, and then push D-pad(Ent).
• OFF : Does not transmit the time.
• DHM : Transmits the time stamp in the Day, Hour,
and Minute format.
• HMS : Transmits the time stamp in the Hour, Min-
ute, and Second format.
5. Setting Altitude
Set the altitude transmission.
!0 Push D-pad() to select "Altitude," and then push
D-pad(Ent)
!1 Push D-pad() to select "ON," and then push D-
pad(Ent).
NOTE:
If you transmit with the altitude setting ON, to those
products that are not capable of displaying the al-
titude (IC-9100, IC-80AD, IC-E80D, ID-880H, ID-
E880, IC-92AD, IC-E92D), the characters appear as
a comment.
6. Setting GPS-A Symbol
Select the desired GPS-A symbol which represents
your operating situation.
The selected GPS-A symbol channel's symbols (1~4)
are transmitted along with the position data.
!2 Push D-pad() to select "GPS-A Symbol," and then
push D-pad(Ent).
!3 Push D-pad() to select a symbol between 1: Per-
son, 2: Bicycle, 3: Car and 4: House, and then push
D-pad(Ent).
• If you wish to use any GPS-A symbol (characters) or pre-
viously saved symbol, see page 16-44 for details.
Push [QUICK] to display
the "Edit Symbol" screen.
10-20
Continued on the next page
☞
