PANEL DESCRIPTION
Function display (Continued)
■
e t
q w r y u io !0
@3
@2
@1
@0
!9

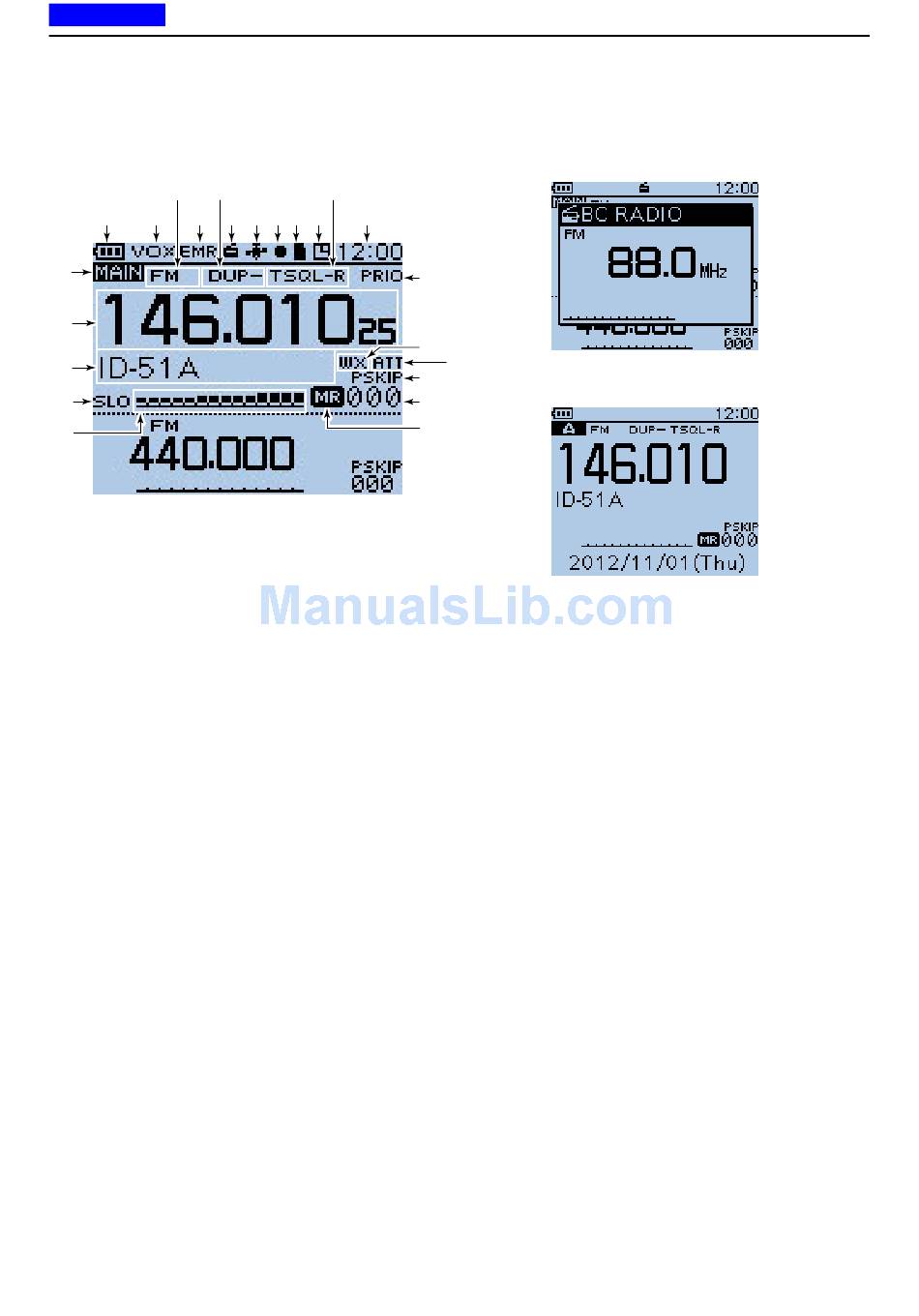

Dual band display
!9 S/RF METER
Shows the relative signal strength of the receive
➥
signal. (p. 5-9)
Shows the output power level of the transmit signal.
➥
(p. 5-10)
@0 POWER ICONS (p. 5-10)
" SLO" appears when S-low power is selected.
➥
" LO1" appears when low 1 power is selected.
➥
" LO2" appears when low 2 power is selected.
➥
" MID" appears when mid power is selected.
➥
No icon appears when high power is selected.
➥
@1 MEMORY NAME DISPLAY (p. 12-12)
While in the Memory mode, the programmed mem-
ory or memory bank name is displayed.
@2 FREQUENCY READOUT
Displays a variety of information, such as the operat-
ing frequency, menu contents and so on.
• The decimal point blinks during a scan.
@3 MAIN BAND ICON (p. 5-3)
Shows the the selected band (A or B) is the Main
band.
!1
!2
!3
!4
!5
!6
!7
!8
3-7
BC Radio setting pop-up
window (Tuning mode)
Single band display
