1
PANEL DESCRIPTION

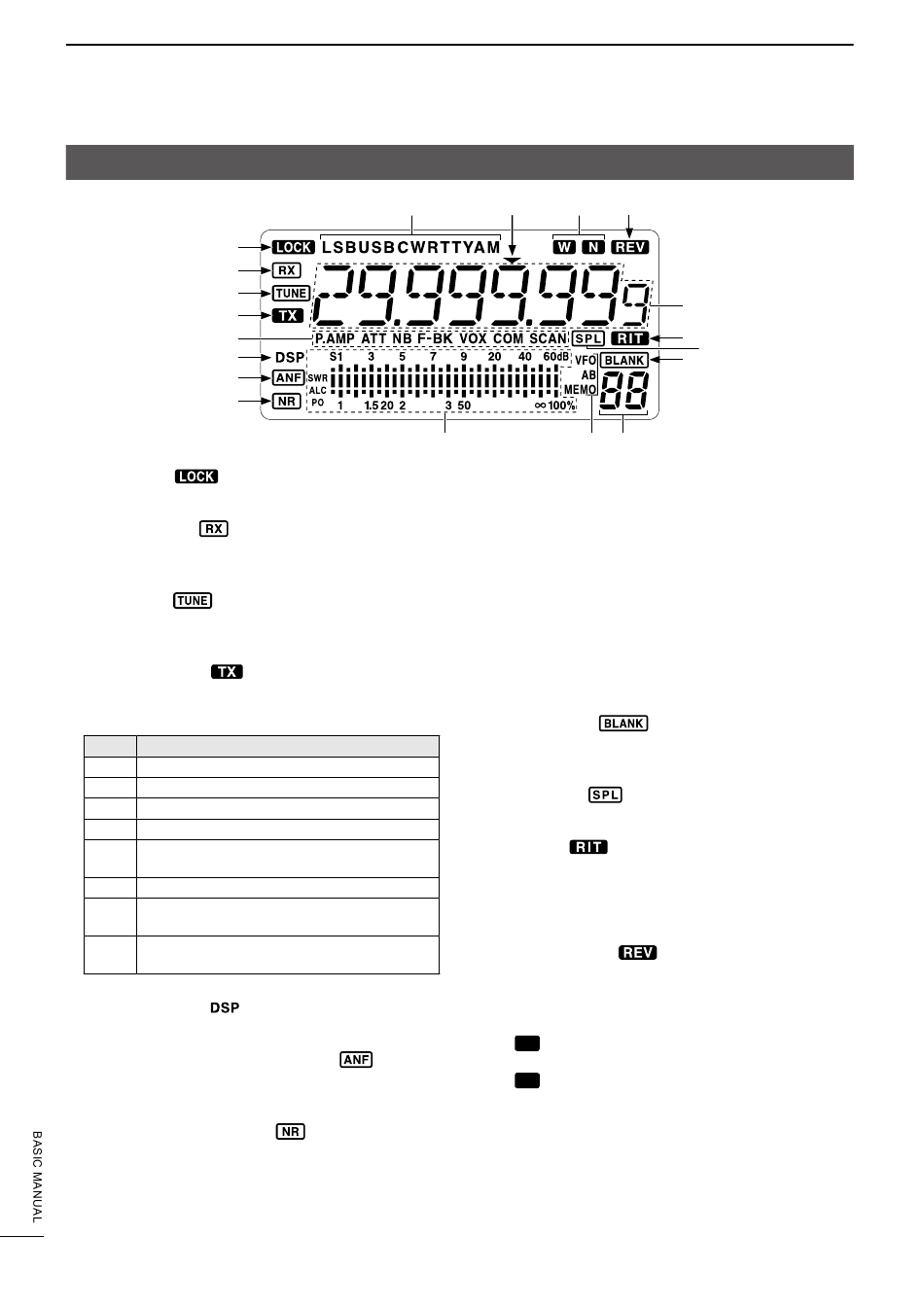

Function display

1 LOCK ICON
Displayed when the Dial Lock function is ON.
2 RECEIVE ICON
Displayed while receiving a signal or when the
squelch is open.
3 TUNE ICON
Displayed when the Automatic Tuning function is
ON.
4 TRANSMIT ICON
Displayed while transmitting.
5 FUNCTION ICONS
Icon
P.AMP The antenna preamplifier is ON.
ATT
The Attenuator function is ON.
NB
The Noise Blanker function is ON.
BK
The Semi Break-in function is ON.
F-BK The Full Break-in function is selected in the
CW mode.
VOX
The VOX function is ON.
COM The Microphone Compressor function is ON in
the SSB mode.
SCAN
• The Scan function is ON.
• Blinks when a Scan is paused.
6 DSP UNIT ICON "
Displayed only on the USA version.
7 AUTOMATIC NOTCH FILTER ICON
(For only the USA version, displayed when the
Automatic Notch Filter function is ON.
8 NOISE REDUCTION ICON
For only the USA version, displayed when the
Noise Reduction function is ON.
4
1
2
3
4
5
6
7
8
(p. 9)
(p. 7)
Status
"
(p. 15)
(p. 15)
19
18
17
9
9 SIGNAL/SQL/RF-GAIN METER
• Displays the signal strength while receiving.
• Displays the relative output power, ALC, or SWR
levels while transmitting. (p. 10)
10 VFO/MEMORY ICON (p. 8)
"VFO A" or "VFO B" is displayed when the VFO
mode is selected.
"MEMO" is displayed when the Memory mode is
selected.
11 MEMORY CHANNEL NUMBER READOUT (p. 17)
Displays the selected Memory channel number.
12 BLANK ICON
In the VFO and Memory modes, indicates that the
selected Memory channel has no content.
13 SPLIT ICON
Displayed when the Split function is ON.
14 RIT ICON
Displayed when the RIT function is in use.
15 FREQUENCY READOUT
Displays the operating frequency.
16 REVERSE ICON
Displayed when the CW Reverse or RTTY Reverse
mode is selected.
17 WIDE/NARROW FILTER ICONS (p. 13)
W
: Displayed when the wide IF filter is
selected.
N
: Displayed when the narrow IF filter is
selected.
18 QUICK TUNING STEP ICON
Displayed when you select the Quick Tuning step.
19 MODE ICONS (p. 8)
Displays the selected operating mode.
16
15
14
13
12
10
11
(p. 17)
(p. 15)
(p. 11)
(p. 8)
