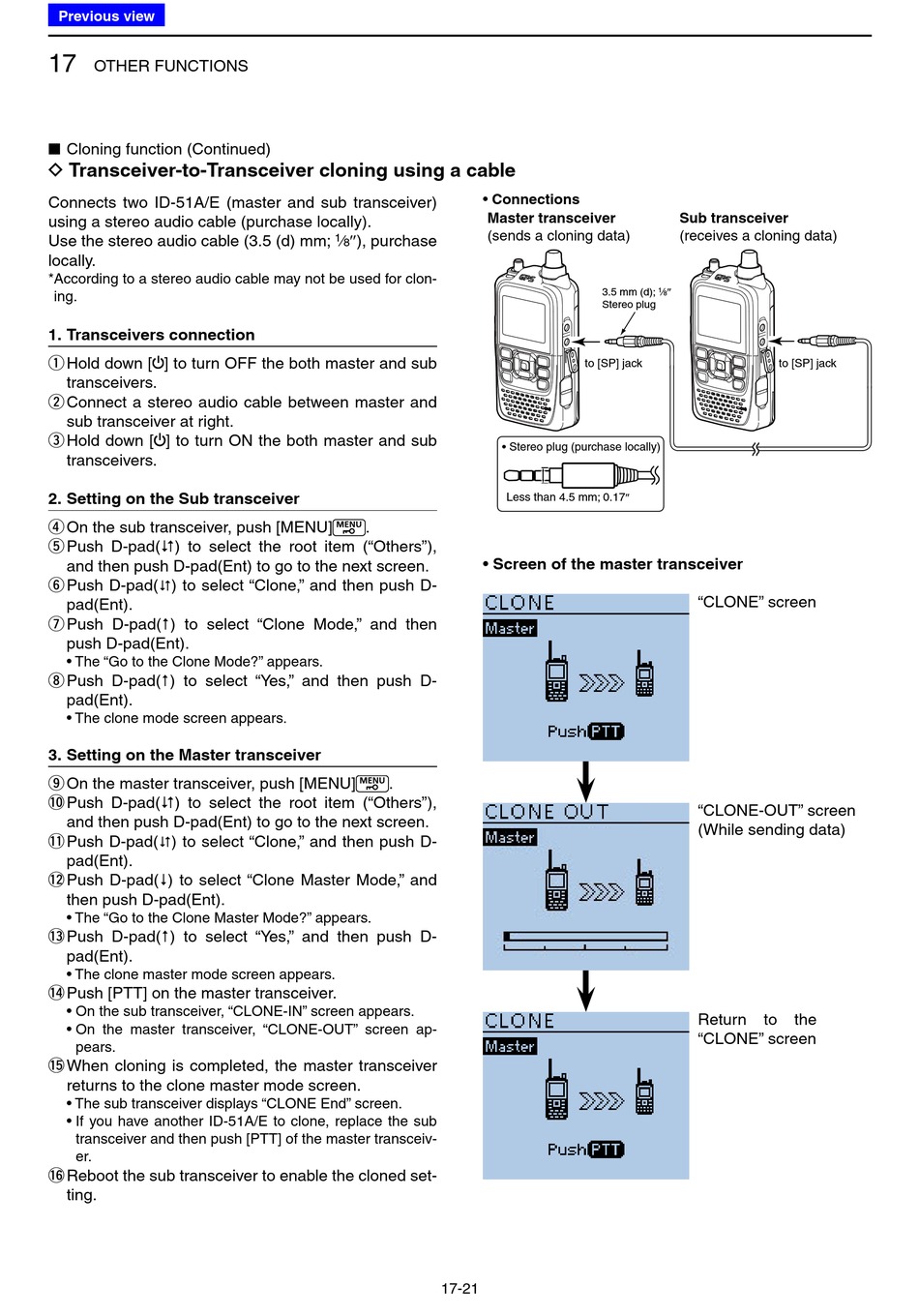

17
OTHER FUNCTIONS
Cloning function (Continued)
■
D Transceiver-to-Transceiver cloning using a cable
Connects two ID-51A/E (master and sub transceiver)
using a stereo audio cable (purchase locally).
Use the stereo audio cable (3.5 (d) mm;
locally.
* According to a stereo audio cable may not be used for clon-
ing.
1. Transceivers connection
Hold down [ ] to turn OFF the both master and sub
q
transceivers.
Connect a stereo audio cable between master and
w
sub transceiver at right.
Hold down [ ] to turn ON the both master and sub
e
transceivers.
2. Setting on the Sub transceiver
On the sub transceiver, push [MENU]
r
Push D-pad( ) to select the root item ("Others"),
t
and then push D-pad(Ent) to go to the next screen.
Push D-pad( ) to select "Clone," and then push D-
y 
pad(Ent).
Push D-pad( ) to select "Clone Mode," and then
u
push D-pad(Ent).
• The "Go to the Clone Mode?" appears.
Push D-pad( ) to select "Yes," and then push D-
i
pad(Ent).
• The clone mode screen appears.
3. Setting on the Master transceiver
On the master transceiver, push [MENU]
o
!0 Push D-pad() to select the root item ("Others"),
and then push D-pad(Ent) to go to the next screen.
!1 Push D-pad( ) to select "Clone," and then push D-

pad(Ent).
!2 Push D-pad() to select "Clone Master Mode," and
then push D-pad(Ent).
• The "Go to the Clone Master Mode?" appears.
!3 Push D-pad() to select "Yes," and then push D-
pad(Ent).
• The clone master mode screen appears.
!4 Push [PTT] on the master transceiver.
• On the sub transceiver, "CLONE-IN" screen appears.
• On the master transceiver, "CLONE-OUT" screen ap-
pears.
!5 When cloning is completed, the master transceiver
returns to the clone master mode screen.
• The sub transceiver displays "CLONE End" screen.
• If you have another ID-51A/E to clone, replace the sub
transceiver and then push [PTT] of the master transceiv-
er.
!6 Reboot the sub transceiver to enable the cloned set-
ting.
• Connections
Master transceiver
(sends a cloning data)
"), purchase
1 ⁄
8
• Stereo plug (purchase locally)
Less than 4.5 mm; 0.17
.
• Screen of the master transceiver
.
17-21
Sub transceiver
(receives a cloning data)
"
3.5 mm (d); ⁄
1
8
Stereo plug
to [SP] jack
"
"CLONE" screen
"CLONE-OUT" screen
(While sending data)
Return
"CLONE" screen
to [SP] jack
to the
