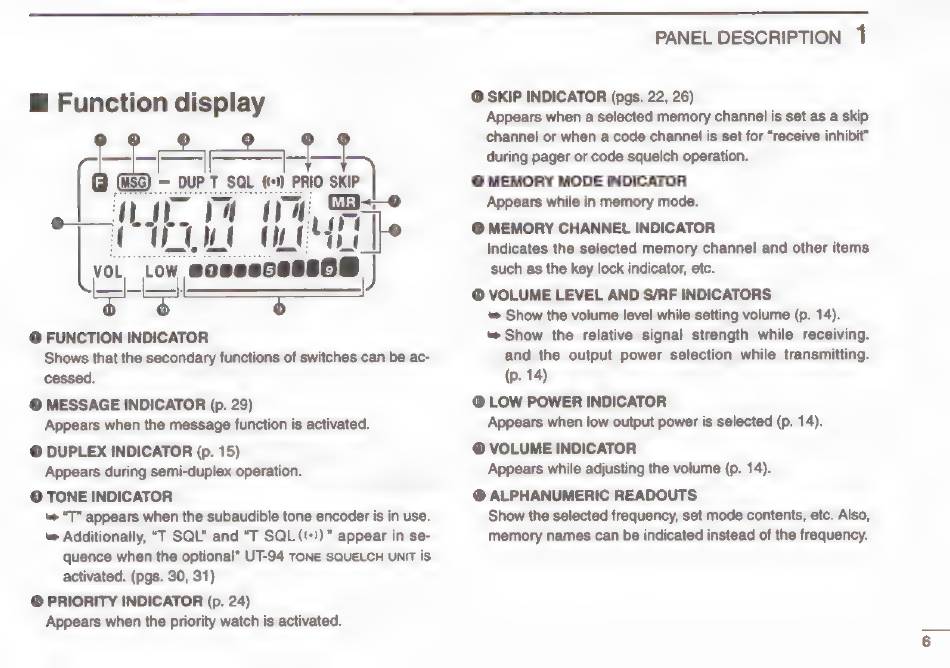

Function Display - Icom IC-T22A Instruction Manual

@ Function display
9a soln ode)
= DUP T SQL (()) PRIO SKIP
aE. | ore
eT Ow Ob
vou, Low eossscsssO8 essoe |
@ FUNCTION INDICATOR
Shows that the secondary functions of switches can be ac-
cessed.
@ MESSAGE INDICATOR (p. 29)
Appears when the message function is activated.
© DUPLEX INDICATOR (p. 15)
Appears during semi-duplex operation.
@ TONE INDICATOR
' "T" appears when the subaudible tone encoder is in use.
Additionally, "T SQL" and "T SQL ((+))"" appear in se-
quence when the optional* UT-94 TONE SQUELCH UNIT is
activated. (pgs. 30, 31)
© PRIORITY INDICATOR (p. 24)
Appears when the priority watch is activated.
PANEL DESCRIPTION 1
@ SKIP INDICATOR (pgs. 22, 26)
Appears when a selected memory channel is set as a skip
channel or when a code channel is set for "receive inhibit"
during pager or code squelch operation.
@ MEMORY MODE INDICATOR
Appears while in memory mode.
@ MEMORY CHANNEL INDICATOR
Indicates the selected memory channel and other items
such as the key lock indicator, etc.
@ VOLUME LEVEL AND S/RF INDICATORS
'» Show the volume level while setting volume (p. 14).
'» Show the relative signal strength while receiving.
and the output power selection while transmitting.
(p. 14)
@ LOW POWER INDICATOR
Appears when low output power is selected (p. 14).
@ VOLUME INDICATOR
Appears while adjusting the volume (p. 14).
@ ALPHANUMERIC READOUTS
Show the selected frequency, set mode contents, etc. Also,
memory names can be indicated instead of the frequency.
>
