3

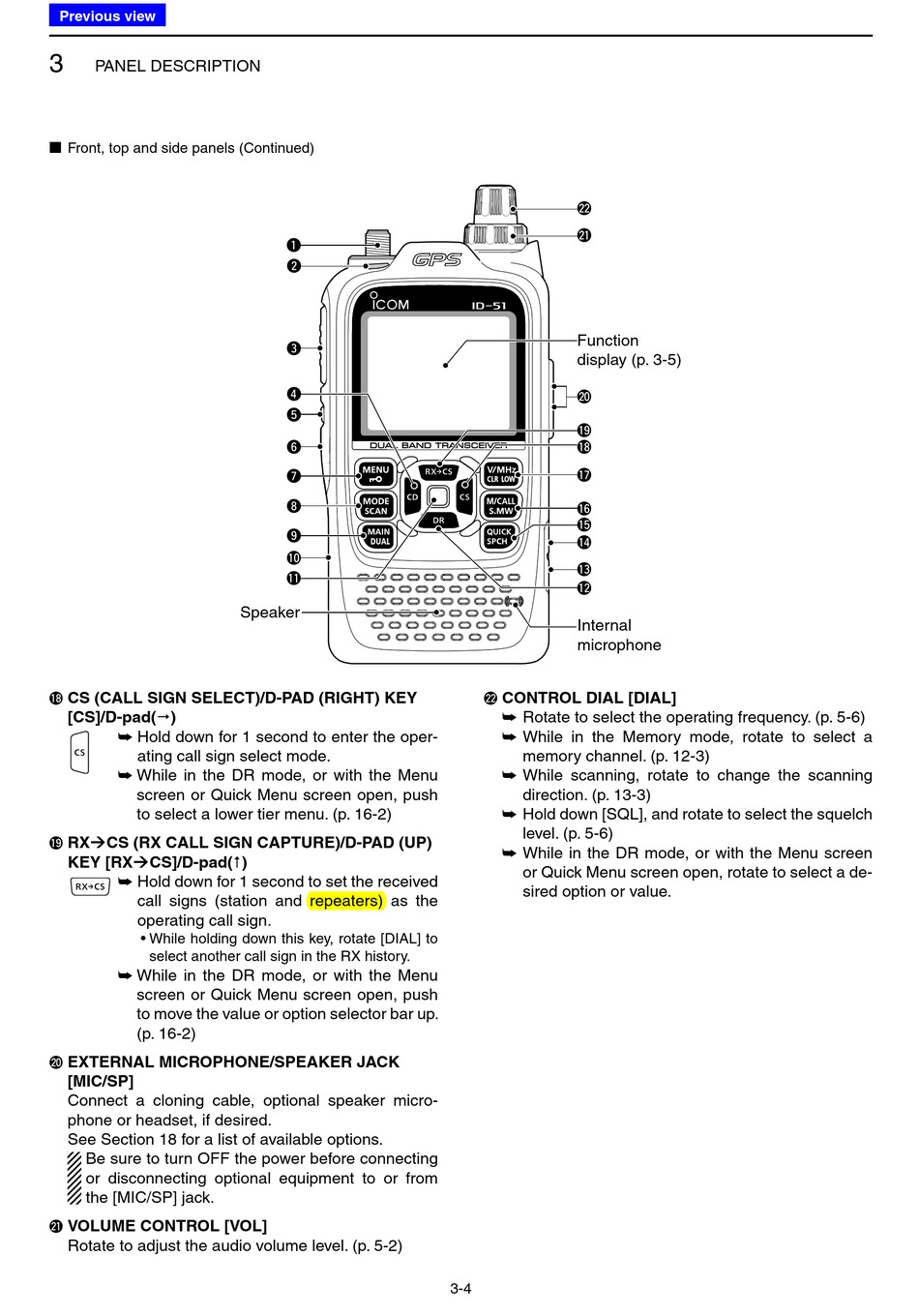

PANEL DESCRIPTION
Front, top and side panels (Continued)
■
CS (CALL SIGN SELECT)/D-PAD (RIGHT) KEY
!8
[CS]/D-pad()
➥ Hold down for 1 second to enter the oper-
ating call sign select mode.
➥ While in the DR mode, or with the Menu
screen or Quick Menu screen open, push
to select a lower tier menu. (p. 16-2)
RXÚCS (RX CALL SIGN CAPTURE)/D-PAD (UP)
!9
KEY [RXÚCS]/D-pad()
➥ Hold down for 1 second to set the received
call signs (station and repeaters) as the
operating call sign.
• While holding down this key, rotate [DIAL] to
select another call sign in the RX history.
➥ While in the DR mode, or with the Menu
screen or Quick Menu screen open, push
to move the value or option selector bar up.
(p. 16-2)
EXTERNAL MICROPHONE/SPEAKER JACK
@0
[MIC/SP]
Connect a cloning cable, optional speaker micro-
phone or headset, if desired.
See Section 18 for a list of available options.
Be sure to turn OFF the power before connecting
or disconnecting optional equipment to or from
the [MIC/SP] jack.
VOLUME CONTROL [VOL]
@1
Rotate to adjust the audio volume level. (p. 5-2)
q
w
e
r
t
y
u
i
o
!0
!1
Speaker
@2
@1
Function
display (p. 3-5)
@0
!9
!8
!7
!6
!5
!4
!3
!2
Internal
microphone
CONTROL DIAL [DIAL]
@2
Rotate to select the operating frequency. (p. 5-6)
➥
While in the Memory mode, rotate to select a
➥
memory channel. (p. 12-3)
While scanning, rotate to change the scanning
➥
direction. (p. 13-3)
Hold down [SQL], and rotate to select the squelch
➥
level. (p. 5-6)
While in the DR mode, or with the Menu screen
➥
or Quick Menu screen open, rotate to select a de-
sired option or value.
3-4
