GPS/GPS-A OPERATION
GPS Logger function (Continued)
■

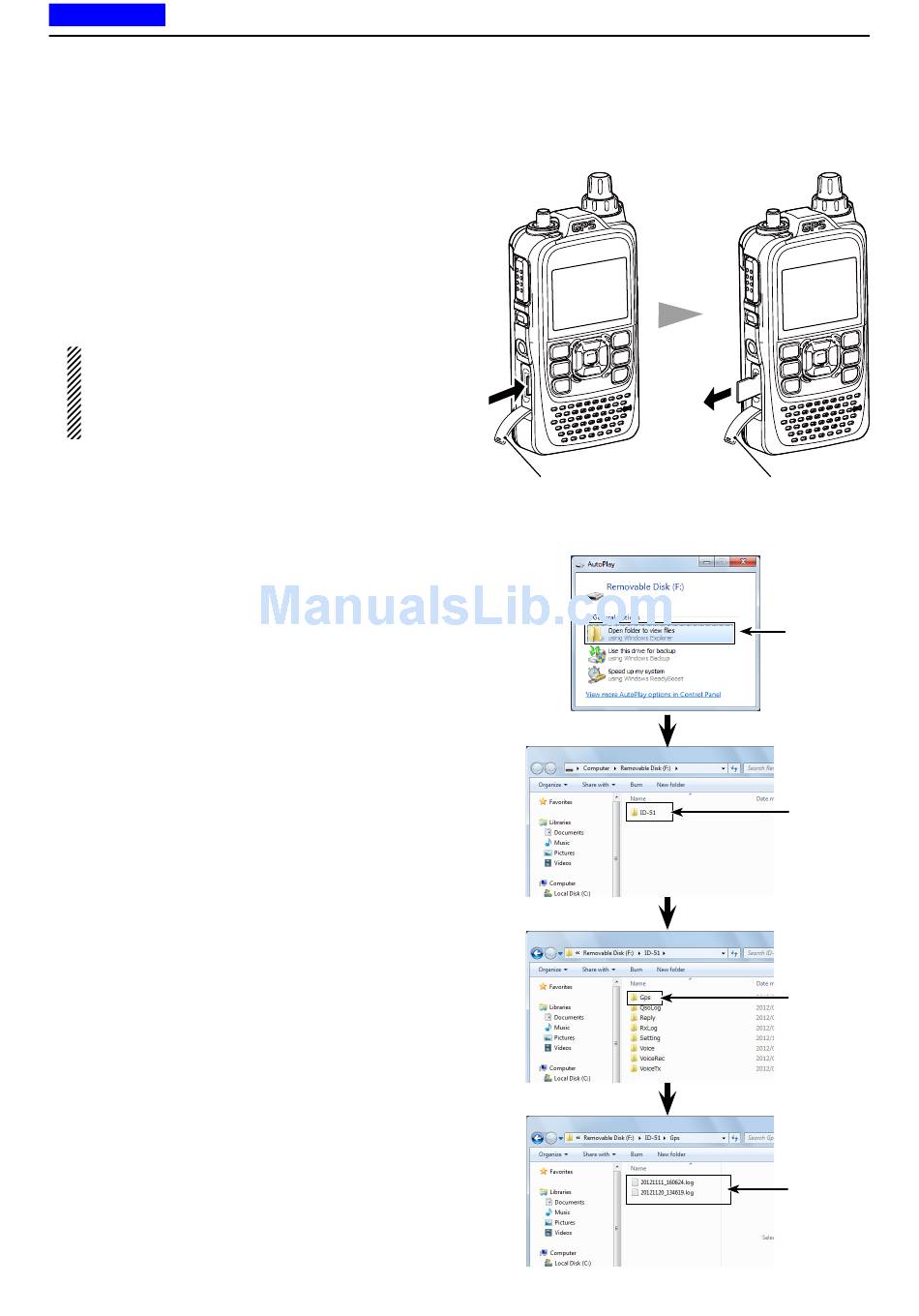

D Viewing the route on a PC Map

If you want to display the your route, copy the log file
to your PC.
Turn OFF the transceiver, if it's ON.
q
w Lift OFF the [micro SD] slot cover on the side panel.
Push the microSD card in to release, then carefully
e
pull it out, to remove the card.
BE CAREFUL!:
• DO NOT touch the terminals.
• When removing the card during transceiver pow-
er ON, the Unmounting it first is necessary. See
page 2-4 for more details.
Insert the microSD card into the microSD card drive
r
on your PC.
• If no microSD card drive is built-in, connect a memory
card reader (purchase locally) and then insert the mi-
croSD card into it.
• The screen appears as shown to the right.
Click the "Open folder to view files" option to access
t
the card.
• The "ID-51" folder appears.
Double click the folder.
y
• Eight folders appear.
Double click the "Gps" folder.
u
• The log files appear.
• The files are named with the time the log was started, in
the following format:
yyyymmdd_hhmmss.log
yyyy = year, mm = month, dd = day, hh = hour,
mm = minute, ss = second
Import the selected file to a mapping software.
i
• You can see your route on the software map.
Those file may not be compatible with all mapping soft-
ware.
Slot cover
Push the microSD card
until a click sounds.
10-27
Slot cover
Pull the microSD
card out.
Click
Click
Click
The log
files are
saved here
