15

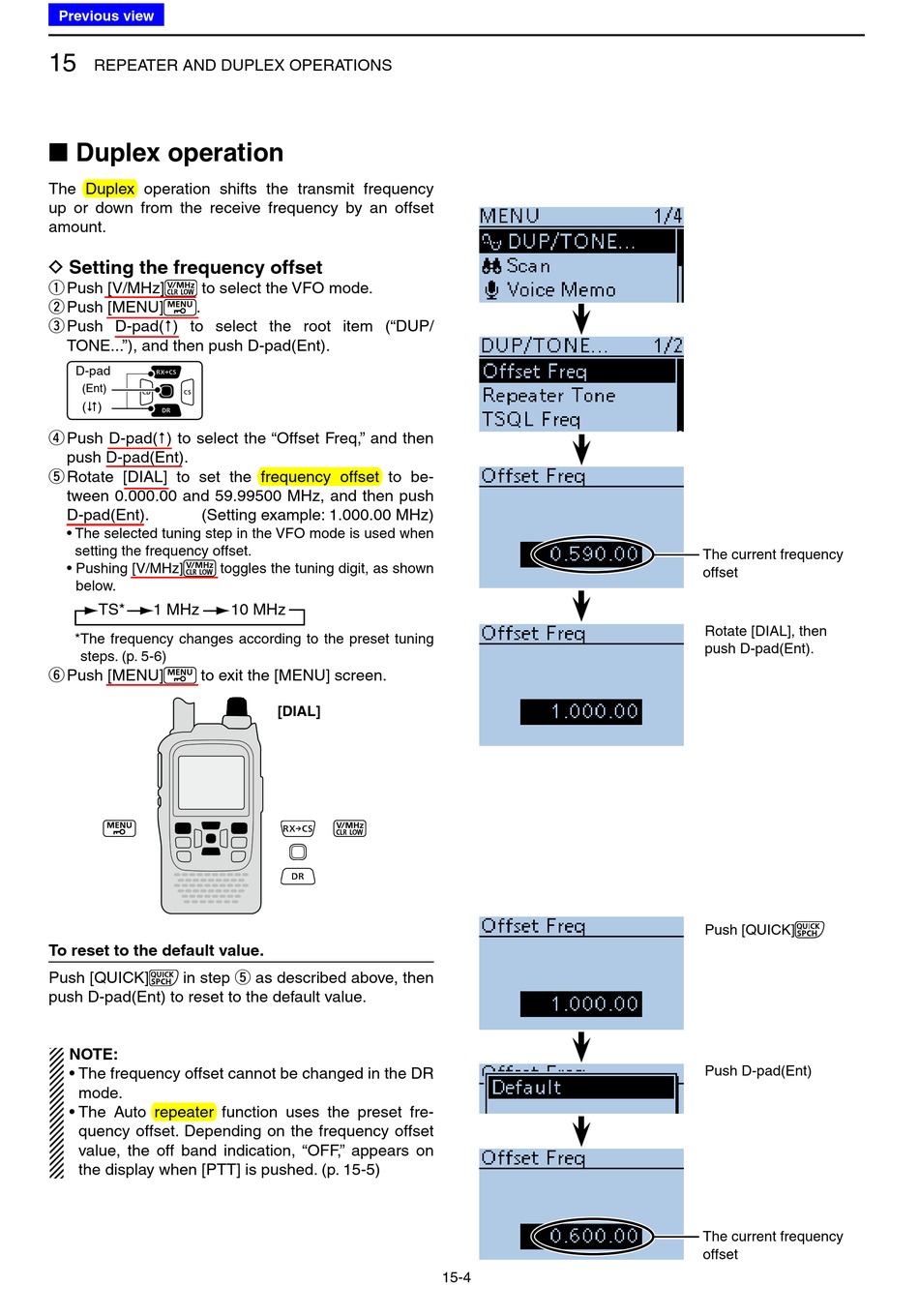

REPEATER AND DUPLEX OPERATIONS

■ Duplex operation

The Duplex operation shifts the transmit frequency
up or down from the receive frequency by an offset
amount.

D Setting the frequency offset

Push [V/MHz] to select the VFO mode.
q
Push [MENU] .
w
Push D-pad( ) to select the root item ("DUP/
e
TONE..."), and then push D-pad(Ent).
D-pad
(Ent)
(�)
Push D-pad( ) to select the "Offset Freq," and then
r
push D-pad(Ent).
Rotate [DIAL] to set the frequency offset to be-
t
tween 0.000.00 and 59.99500 MHz, and then push
D-pad(Ent). (Setting example: 1.000.00 MHz)
• The selected tuning step in the VFO mode is used when
setting the frequency offset.
• Pushing [V/MHz] toggles the tuning digit, as shown
below.
TS* 1 MHz
* The frequency changes according to the preset tuning
steps. (p. 5-6)
Push [MENU] to exit the [MENU] screen.
y
To reset to the default value.
Push [QUICK] in step t as described above, then
push D-pad(Ent) to reset to the default value.
NOTE:
• The frequency offset cannot be changed in the DR
mode.
• The Auto repeater function uses the preset fre-
quency offset. Depending on the frequency offset
value, the off band indication, "OFF," appears on
the display when [PTT] is pushed. (p. 15-5)
10 MHz
[DIAL]
15-4
The current frequency
offset
Rotate [DIAL], then
push D-pad(Ent).
Push [QUICK]
Push D-pad(Ent)
The current frequency
offset
