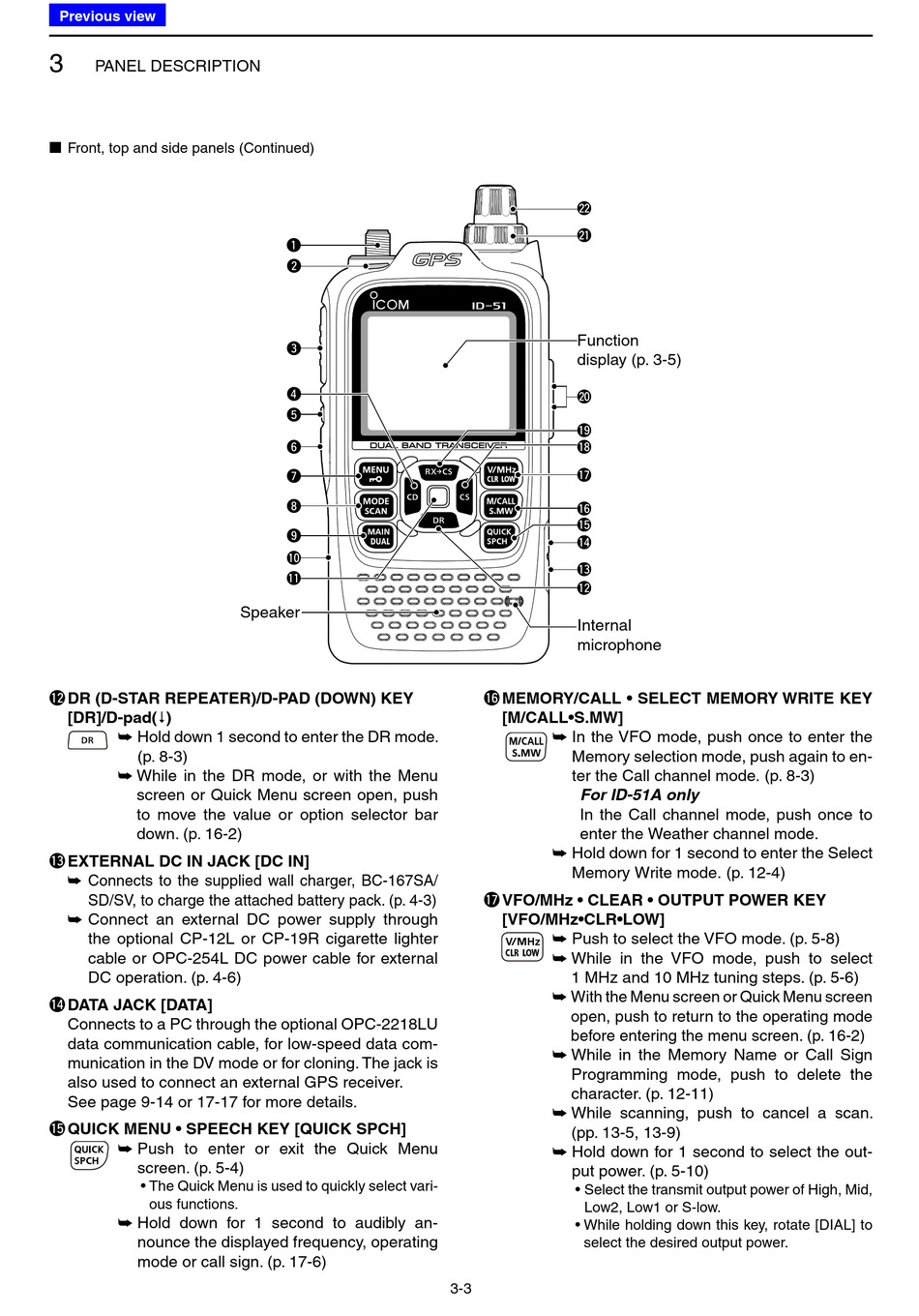

PANEL DESCRIPTION
Front, top and side panels (Continued)
■
!2 DR (D-STAR REPEATER)/D-PAD (DOWN) KEY
[DR]/D-pad()
➥ Hold down 1 second to enter the DR mode.
(p. 8-3)
➥ While in the DR mode, or with the Menu
screen or Quick Menu screen open, push
to move the value or option selector bar
down. (p. 16-2)
!3 EXTERNAL DC IN JACK [DC IN]
Connects to the supplied wall charger, BC-167SA/
➥
SD/SV, to charge the attached battery pack. (p. 4-3)
Connect an external DC power supply through
➥
the optional CP-12L or CP-19R cigarette lighter
cable or OPC-254L DC power cable for external
DC operation. (p. 4-6)
!4 DATA JACK [DATA]
Connects to a PC through the optional OPC-2218LU
data communication cable, for low-speed data com-
munication in the DV mode or for cloning. The jack is
also used to connect an external GPS receiver.
See page 9-14 or 17-17 for more details.
!5 QUICK MENU • SPEECH KEY [QUICK SPCH]
➥ Push to enter or exit the Quick Menu
screen. (p. 5-4)
• The Quick Menu is used to quickly select vari-
ous functions.
➥ Hold down for 1 second to audibly an-
nounce the displayed frequency, operating
mode or call sign. (p. 17-6)
