PANEL DESCRIPTION

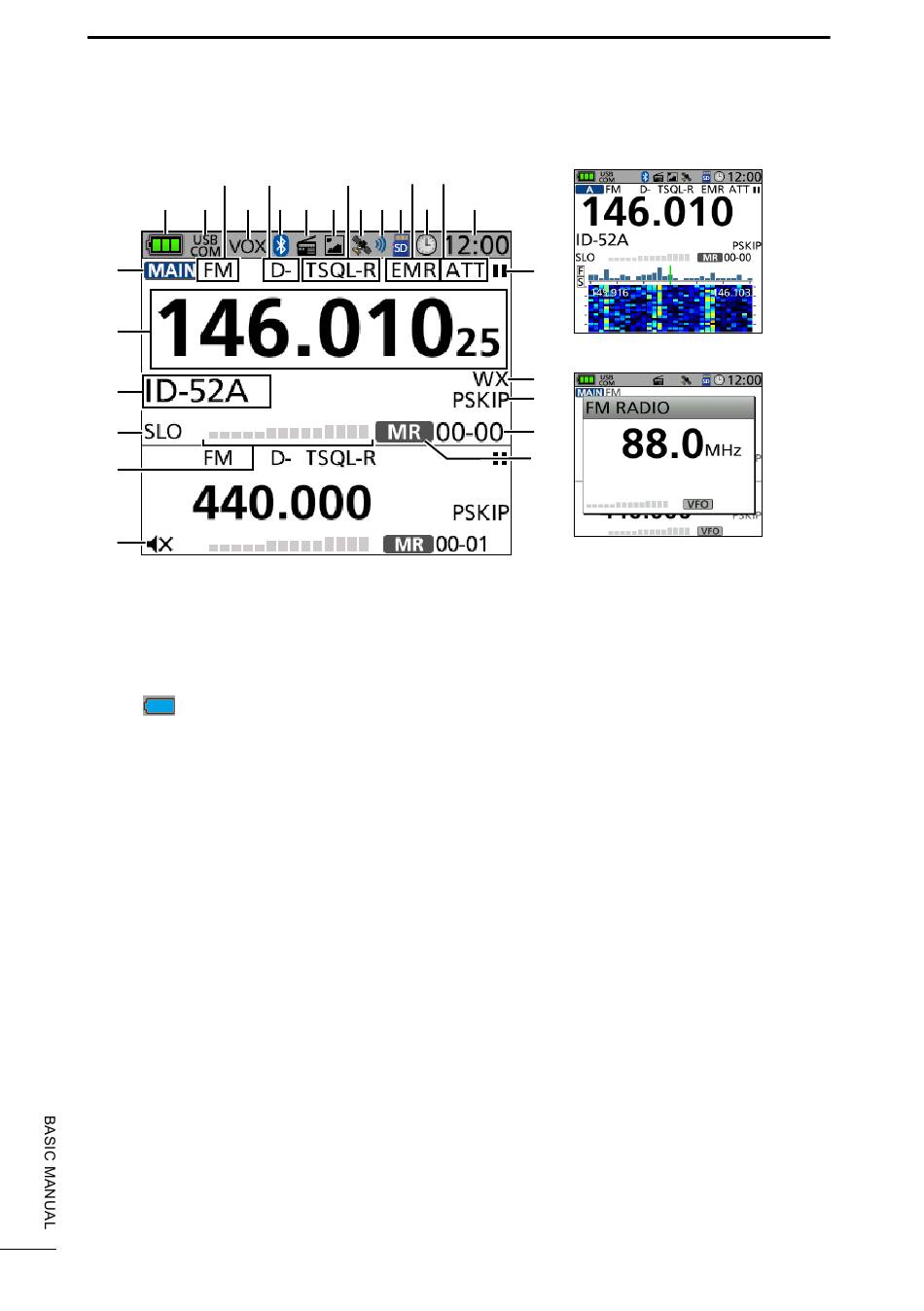

■ Function display

3
1 2
27
26
25
24
23
22
1 BATTERY ICON
Displays the current capacity of the
attached battery pack. (p. 6)
L " " is displayed when the optional
battery case is attached.
2 USB CONNECTION INDICATOR
Displayed when a USB device is
connected through a USB cable, and
"USB Connect" is set to "Serialport."
([MENU] > SET > Function > USB
Connect)
3 OPERATING MODE ICONS
Displays the selected operating mode.
(p. 15)
4 VOX ICON
Displayed when the VOX function is
ON.
5 DUPLEX ICONS
• D+: Displayed during plus duplex
operation.
• D–: Displayed during minus duplex
operation.
6 Bluetooth ICON
®
Displayed when a Bluetooth device is
connected. (p. 32)
3
5 9 13
4 6 7 8 10 11 14 16 12
Dual band display
15
17
Single band display
18
19
20
21
FM RADIO window
(Tuning mode)
7 FM RADIO ICON
Displayed when the FM radio is ON.
(p. 20)
8 PICTURE SHARE ICON
Displayed when the Share Pictures
function is ON.
9 TONE ICONS
Displayed when the tone or digital
squelch function is ON.
10 GPS ICON
Displays the status of the GPS receiver.
(p. 10)
11 GPS ALARM ICON
Displayed when the GPS Alarm
function is ON.
12 microSD ICON (p. 8)
• Displayed when a microSD card is
inserted.
• Blinks while accessing the microSD
card.
